Rinnai Control-R User Manual

Recirculaon with On-Demand Accessories User Guide
13

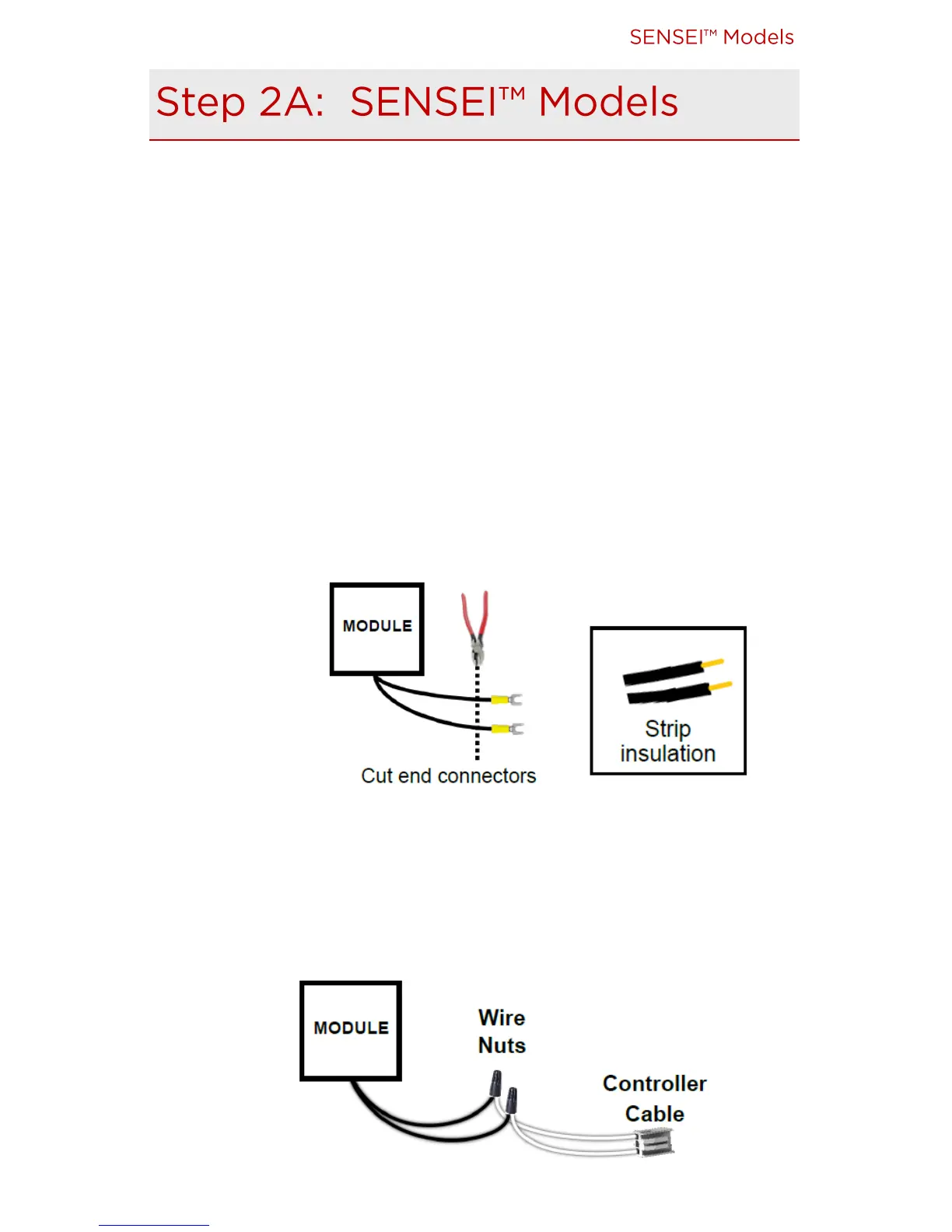

Connect Module:
1. Unplug water heater power cord from power outlet.
2. Remove water heater front panel (use a Phillips Head screwdriver
to remove 4 screws securing the panel).
3. Connect module wires to PC Board located inside water heater by
compleng steps a, b, and c below.
a. If module comes with spade end connectors, cut spade end
connectors o the two module wires.
Next, strip insulaon o both ends.
b. Connect module wires to water heater controller cable
(included in water heater packaging) using wire nuts or other
approved wire connectors.

Rinnai Control-R Specifications

General

Connectivity	Wi-Fi
Wireless Standard	IEEE 802.11 b/g/n
Frequency Band	2.4 GHz
Compatibility	Rinnai tankless water heaters
Functionality	Remote control and monitoring
Security	WPA2
Operating Range	Up to 100 feet (depending on environment)
