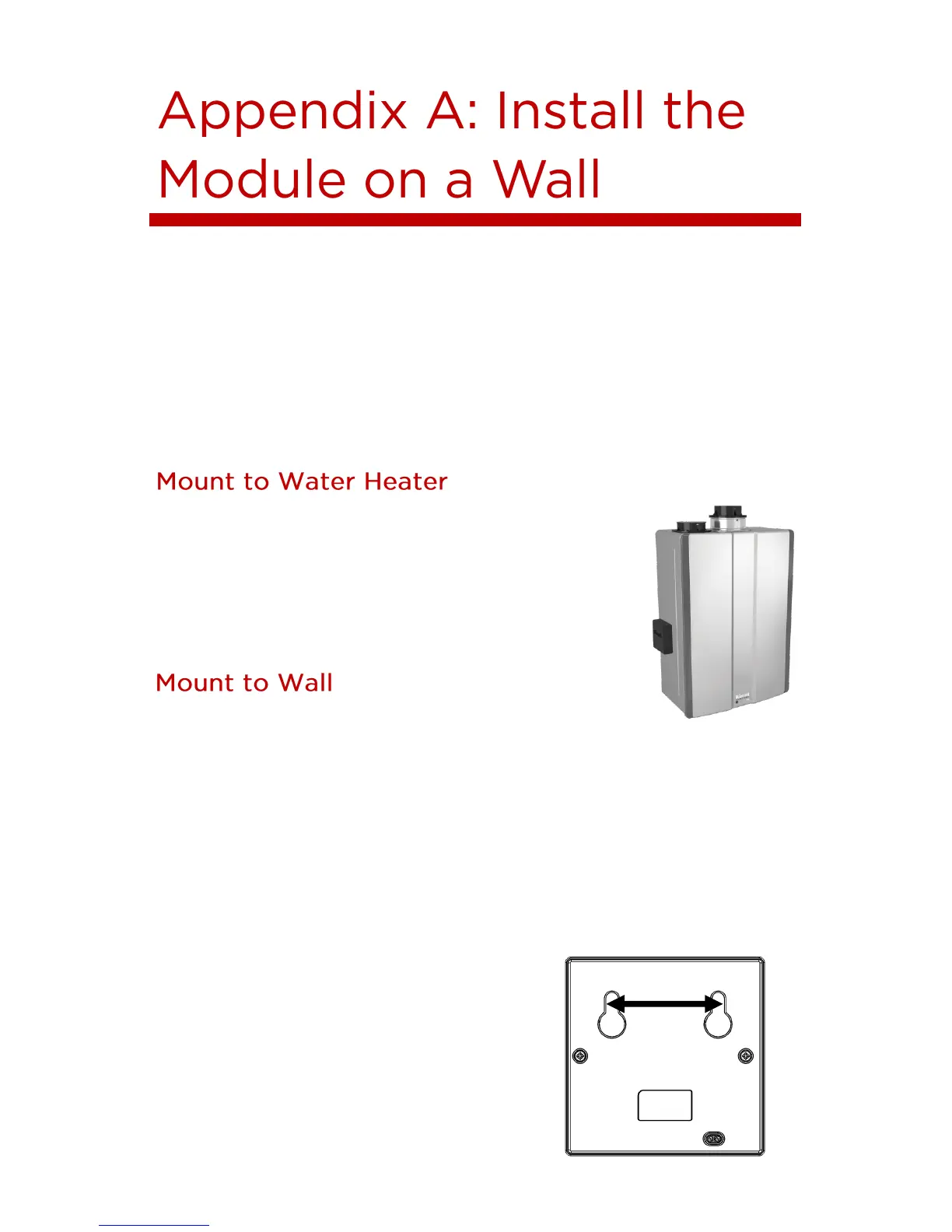

Rinnai Control-R - Appendix A: Install the Module on a Wall; Mount to Water Heater; Mount to Wall

Recirculaon with On-Demand Accessories User Guide
36
You will need:
• Module (supplied)
• Two wall anchors and two screws (supplied)
• Tools (eld-supplied): Phillips head screwdriver, drill with bit set,
level and pencil
To mount the module to a wall:
❶
The module’s back panel contains
two keyhole slots that support the
module. Mark the locaon of each
slot on the wall with a pencil. The
distance between the two slots is
1.9 in. (48 mm).
1.9 in.
(48 mm)
Guidelines:
• The module must be installed indoors (including outdoor water
heaters).
• Mount the module to a wall or side of water heater (with the use
of a magnec backing).
This opon is for indoor water heaters only.
Place the magnec back side of the module to
the side of the water heater.
