Rinnai Control-R - Page 37

Recirculaon with On-Demand Accessories User Guide
37
❷

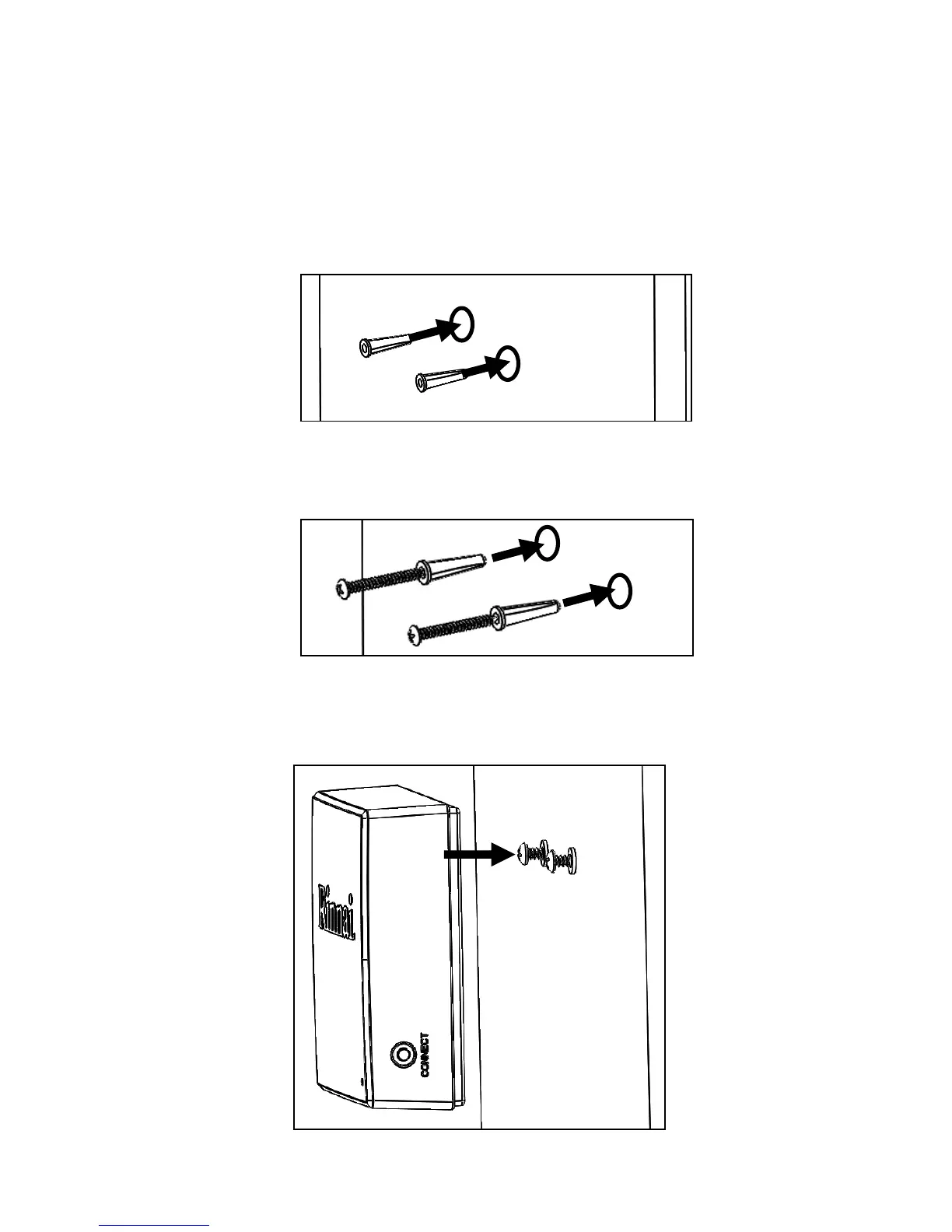

❸ Insert the two wall anchors (supplied) into each hole unl they sit
ush against the wall.
❹ Insert the screws (supplied) into the anchors and fasten to the
wall leaving 1/4 in. exposed.
❺
Mount the module by placing the keyhole slots (on back of
module) onto the screws.
Use a level to ensure the slots are even.
Use a power drill to drill pilot holes for the module screws and
anchors.
