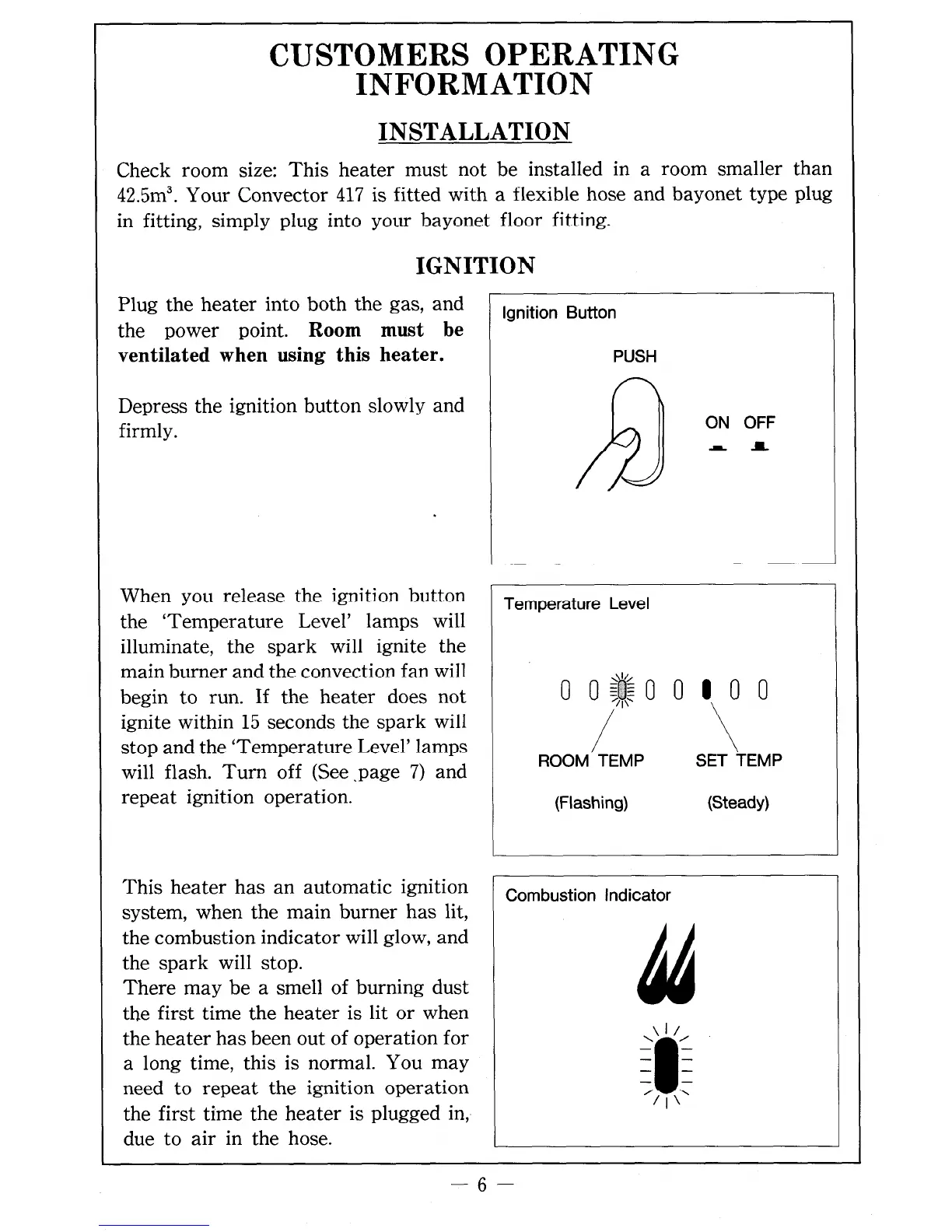

CUSTOMERS OPERATING
INFORMATION
INSTALLATION
Check room size: This heater must not be installed in a room smaller than
42.5m3. Your Convector 417 is fitted with a flexible hose and bayonet type plug
in fitting, simply plug into your bayonet floor fitting.
IGNITION
Plug the heater into both the gas, and
the power point. Room must be
ventilated when using this heater.
Depress the ignition button slowly and
firmly.
When you release the ignition button
the ‘Temperature Level’ lamps will
illuminate, the spark will ignite the
main burner and the convection fan will
begin to run. If the heater does not
ignite within 15 seconds the spark will
stop and the ‘Temperature Level’ lamps
will flash. Turn off (See *page 7) and
repeat ignition operation.
This heater has an automatic ignition
system, when the main burner has lit,
the combustion indicator will glow, and
the spark will stop.
There may be a smell of burning dust
the first time the heater is lit or when
the heater has been out of operation for
a long time, this is normal. You may
need to repeat the ignition operation
the first time the heater is plugged in,
due to air in the hose.
L
ignition Button
PUSH
4 ON OFF
-L I
Temperature Level
0 0~~0 0 8 0 0
/ \
ROOM TEMP
SET TEMP
(Flashing) (Steady)
Combustion Indicator
11
-6-
