24
performance.
When connecting the gas piping, it is recommended that a valve be set up for emergencies and to facilitate maintenance;
Fuel quality: the appliance is designed to work with combustible gas without impurities. If this is not the case, an
.
Storage tanks (LPG): residues of inert gas (nitrogen, etc.) can become trapped inside the new tanks causing the gas
mixture to be depleted. This event can cause malfunctions or anomalies to the device. Due to the composition of the
Electrical Connection
Connect the appliance to a 230V ±10% / 50Hz mains.
Do not use gas or hydraulic pipes for grounding.
The electrical safety is guaranteed only when the appliance is correctly
earthed and the earthing system has been realized following all the safety
prescriptions foreseen by the law.
Make sure that the electrical system is adequate for the maximum absorbed
power and is equipped with an omnipolar circuit breaker with class III over-
voltage category.
technician and use only original Rinnai spare parts to avoid invalidating the warranty.
The use of plug adapters or multiple sockets is not permitted.
The appliance meets the requirements of the European directives:
- “low voltage” directive;
- “electromagnetic compatibility” directive.
The appliances are IPx5D class (outdoor models) and IPx4D class (indoor models).

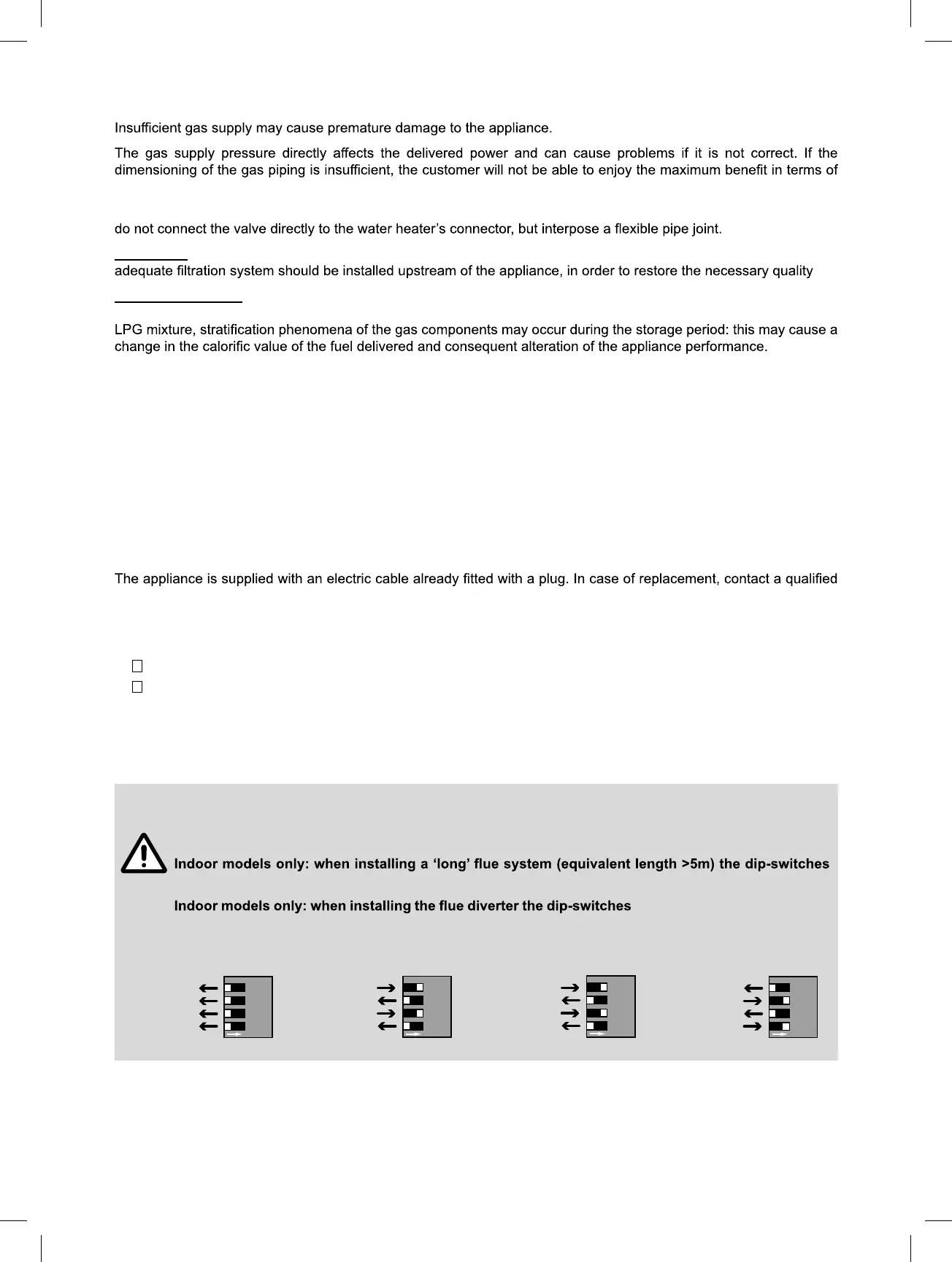

Control Board Dip-switch Setting
Incorrect setting of the micro-switches on the main electronic board (PCB) can cause the unit to malfunction.
NOTE
The factory setting of all PCB micro switches is ‘OFF’ (to the left).
SW1 and SW3 must be set in the ‘ON’ position (to the right).
SW1 and SW3 must be set in
the ‘ON’ position (to the right).
When installing the appliance in high altitude areas (> 900m) the dip-switches SW2 and SW4 must be set in
the ‘ON’ position (to the right).
SW1 (OFF)
SW2 (OFF)
SW3 (OFF)
SW4 (OFF)
1234
DipSW
Factory default
ON
SW1 (OFF)
SW2 (ON )
SW3 (OFF)
SW4 (ON )
ON
1234
DipSW
High altitude
(>900m)
SW1 (ON)
SW2 (OFF)
SW3 (ON)
SW4 (OFF)
1234
DipSW
Flue-diverter
ON
(Outdoor model only)
SW1 (ON)
SW2 (OFF)
SW3 (ON)
SW4 (OFF)
1234
DipSW
‘Long’ flue system
ON
(Indoor model only)
