Rinnai RDV700ER Installation Manual

Rinnai 12 RDV 600_700ER IM
FLUE INSTALLATION OPTIONS
WARNING
The following diagrams illustrate the ue installation options that are available for the RDV600ER
and RDV700ER space heaters. ONLY the genuine Rinnai ue is certied as part of the space
heaters installation requirements.
ONLY an authorised person MUST install, service and remove the Rinnai RDV600ER and
RDV700ER space heater and ue system.
Only the ue system components described in this Manual are suitable and MUST be used. ‘DO
NOT USE AN UNLINED MASONRY CHIMNEY AS THE FLUE FOR THIS APPLIANCE’.
Components that are not described in that manual, whether manufactured by Rinnai or otherwise,
are NOT compatible and MUST NOT be used.
Rinnai appliance warranty conditions may be voided if non Rinnai Flue Components are tted.
AS/NZS 5601 “GAS INSTALLATIONS” requires that ue components be supported independently
of the appliance.

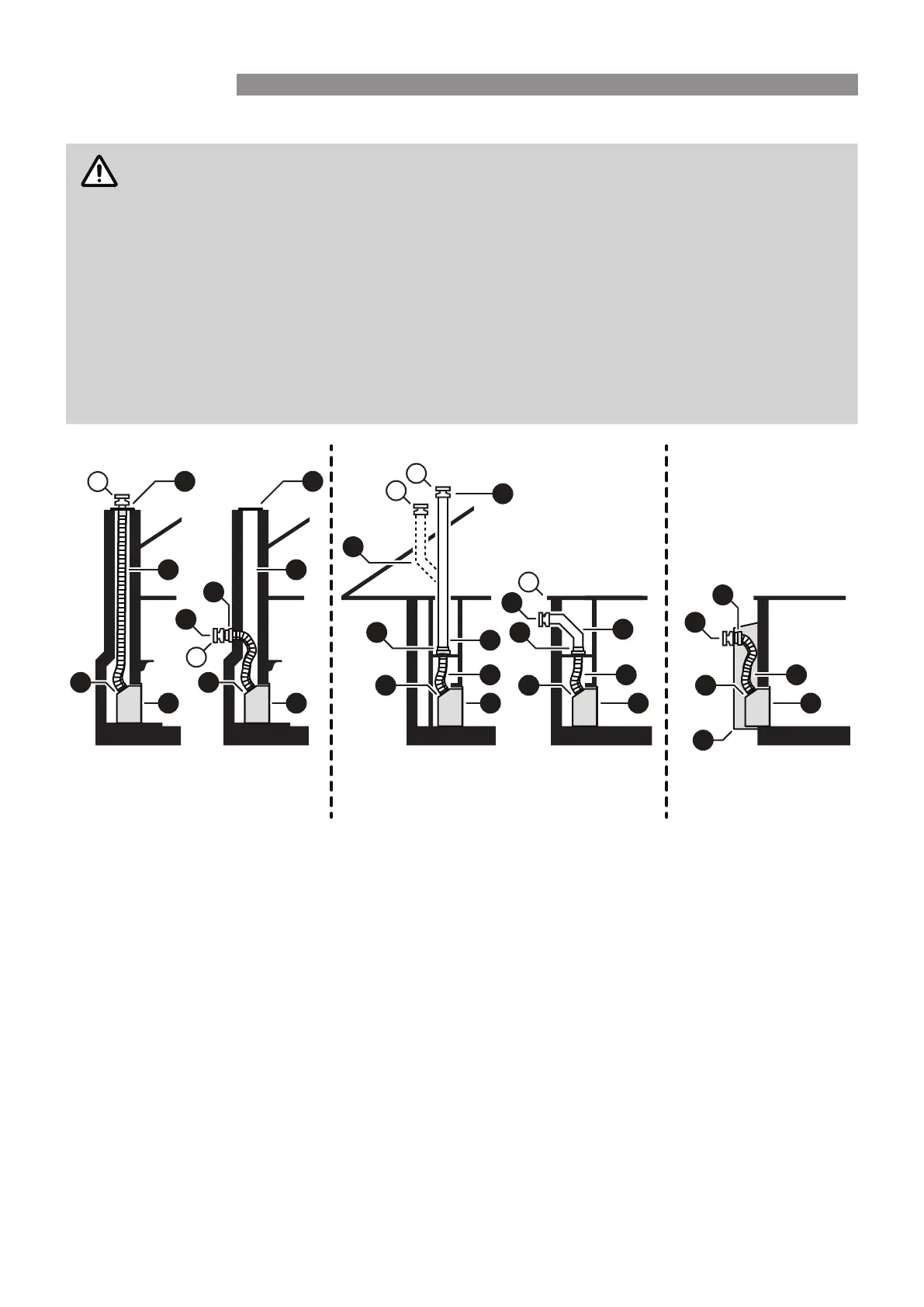

FLUE INSTALLATION OPTIONS
(A)
Masonry (Co-linear) cowl
(B)
Co-linear to coaxial adaptor & support plate/mount
(C)
Flexi pipes (100Ø exhaust / 75Ø air intake)
(D)
Spigot plate (this is part of the heater engine)
(E)
Heater engine
(F)
Coaxial pipe components (170Ø outer pipe, a max of 2 x 45º bends ONLY are allowed)
(G)
Vertical cowl
(H)
Horizontal terminal
(I)
Weather proof box.
False Fire Place / Raised Fire Place
i. Vertical
Masonry
ii. Vertical Offset
iii. Horizontal
ii. Horizontal
i. Vertical
Weather Proof Box
Reduces the internal
footprint requirements
of the heater engine
A
C
C C
E E E E
D
A
C
E
D
D
F
F
G
B
D
C
D
B
F
H
H
B
i
ii
H
B
i
ii
iii
I
FLUEING
