INSTALLATION REQUIREMENTS
This heater MUST be installed ONLY by an authorised person.
The installation MUST conform to local regulations.
The installation MUST also comply with the instructions supplied by Rinnai.
Service and removal MUST be carried out ONLY by an authorised person.
CERTIFICATION
The Rinnai 650 and 750 Gas Fires have been certied by the Australian Gas Association.
The AGA Certication Number is shown on the appliance data plate.
No parts or functions should be modied or permanently removed from the heater.
Please keep these instructions in a safe place for future reference.

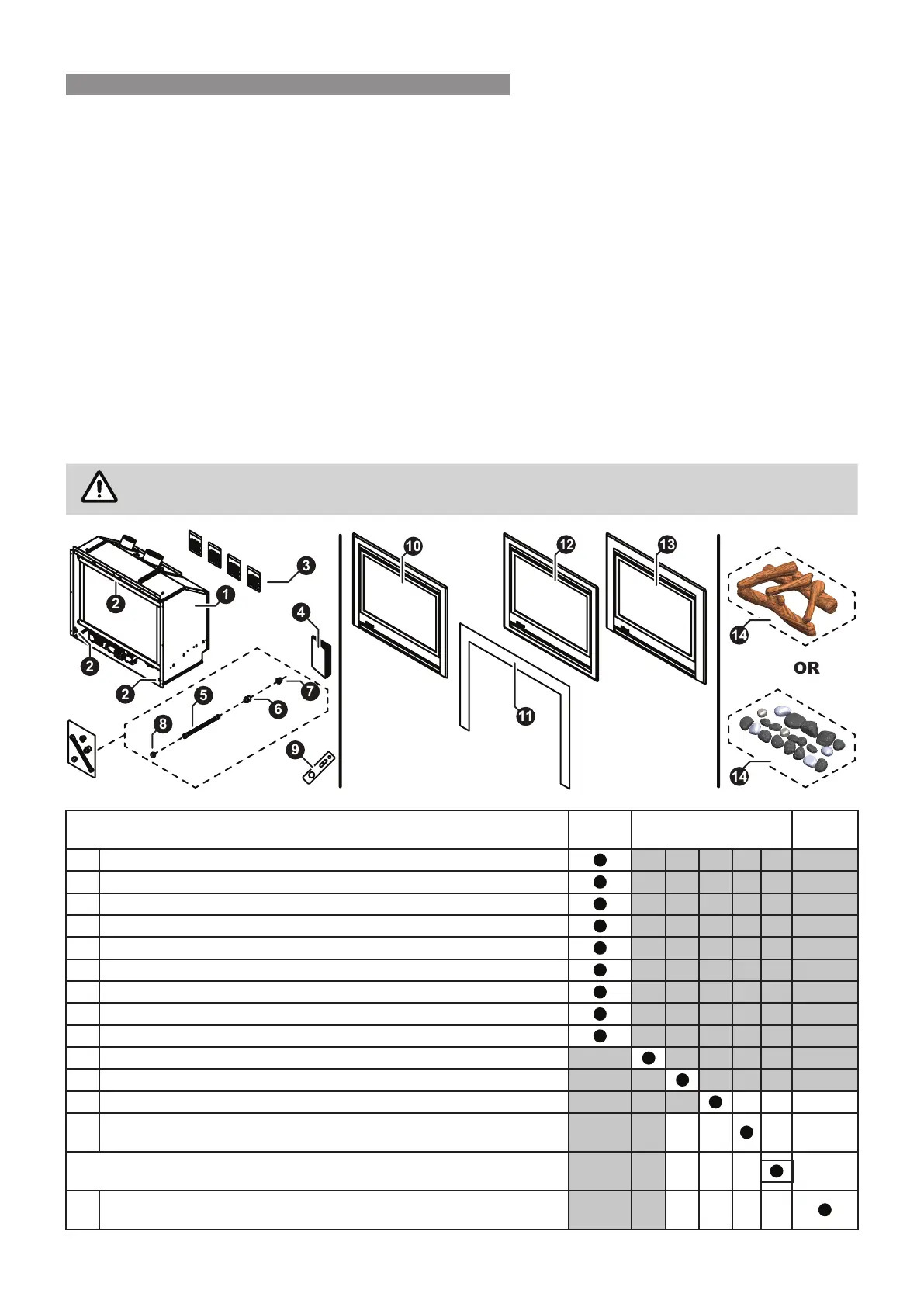

CARTON CONTENTS / ITEM CHECKLIST
The components for Rinnai 650 and 750 Gas Fires are supplied in separate cartons, the following tables list which
components are in each carton. Ensure that the components listed for the installation method being installed are
present before proceeding with the installation.
IMPORTANT
The Engine, Fascia and Burner Media are packed into three separate cartons. One of each are
required for all installation types.
Major component descriptions and carton contents Engine Fascia Options
Burner
Media
(1) Rinnai 650 or 750 Engine (RVD600ER or RVD700ER).
(2) Fascia attachment screws (3 x 8g black, pre-tted within the heater engine).
(3) Four Satchels - granule pack (x2), crushed glass (x1) and rockwool (x1).
(4) Operation and Installation manual.
(5) Semi rigid stainless steel gas pipe with 5/8” connections (x1).
(6) ½” BSP - 5/8” UNF ared brass adaptors (x1).
(7) ½” BSP Flared nut (x1).
(8) 5/8” UNF Plug (x1).
(9) Remote Control, Infra Red (IR).
(10) Three sided fascia.*
(11) Three sided fascia inll (used to create a inll for masonry installations).
(12) Four sided fascia (used for elevated installations).*
(13)
Three sided masonry fascia (alternative to inll, available for RVD700ER models
Only).
*False re place (Zero clearance) applications will require the use of a Zero clearance
frame.
(14)
Ceramic log set OR Ceramic stone set, there is a different set of each for each
model.
4
5
6
7
8
9
OR
5
14
5
14
1
2
2
10
5
3
12 13
11
2
BEFORE YOU START
