Genisys Dock Leveler Owners Manual
10 Pub. No. 1185-R1 - August 2004
NOTE:
End loads at dock level and above can be handled
with the leveler in its stored position.
Be sure the lip is in full contact with the truck/trailer
bed before loading or unloading truck/trailer.
NORMAL OPERATION
1. Activate the leveler by pushing and holding the
RAISE button until leveler is fully raised and lip is
fully extended. See figure 8.
2. When lip is fully extended, release RAISE button.
The leveler will automatically lower onto the
truck/trailer bed. See figure 9.
3. See Storing Leveler.
NOTE: If the truck/trailer departs, the leveler will
move to its lowest position and the lip will fall to the
pendant position inside the dock bumpers. See
Storing Leveler.
BELOW DOCK LOADING OPERATION
1. Activate the leveler by pushing and holding the
RAISE button until leveler is fully raised and lip is
fully extended. See figure 8.
2. When lip is fully extended, release RAISE button. If
equipped with safety legs, pull and hold the safety
leg chain as the leveler lowers automatically onto the
truck/trailer bed. See figure 10.
3. When loading/unloading is complete, continue with
normal operation or return the leveler to stored
position. See Storing Leveler.
OPERATION INSTRUCTIONS POWERED LEVELERS

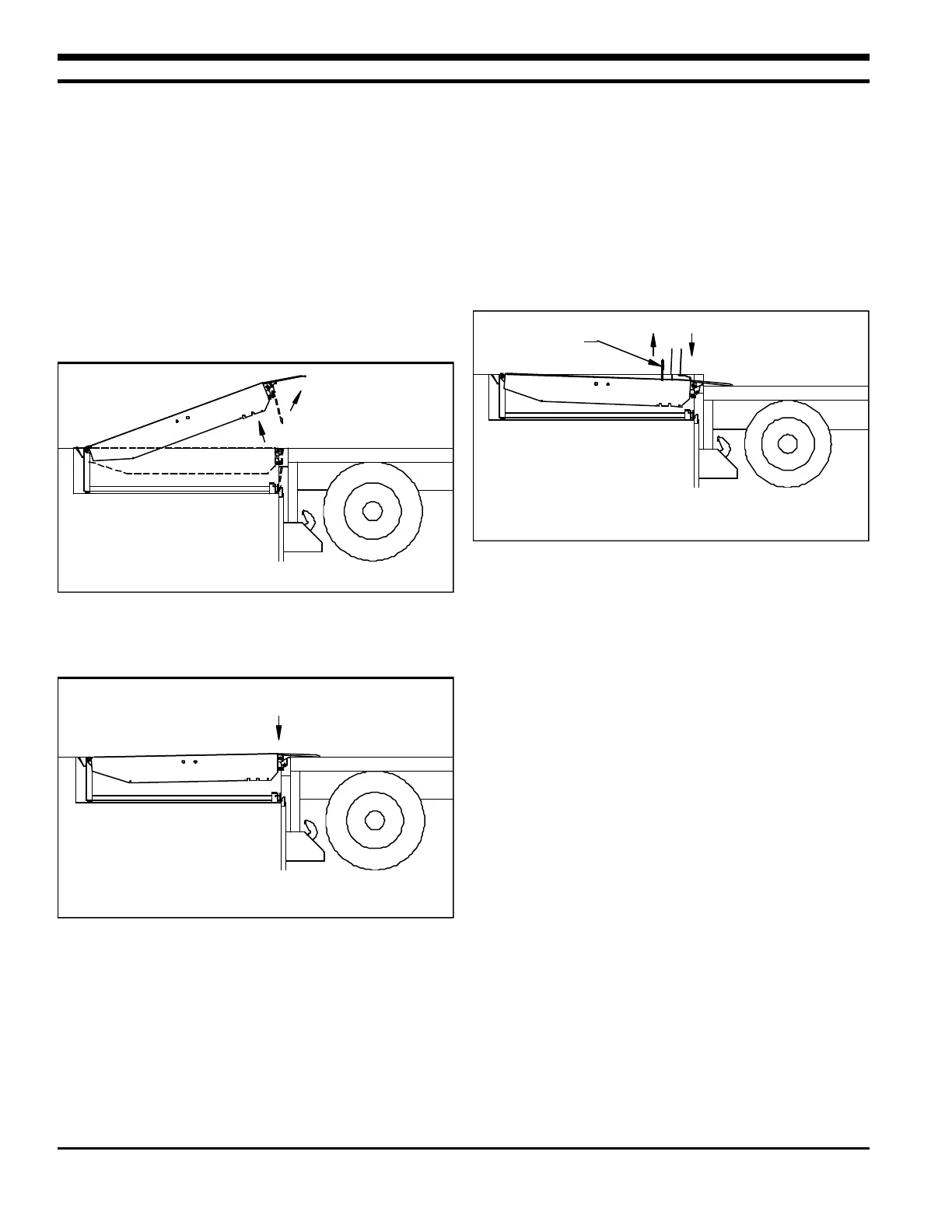

Figure 8 - Powered Dock Leveler
Figure 9 - Normal Operation
Figure 10 - Below Dock Operation
(Safety Leg equipped shown)
Safety Leg
Chain
