HYDRAULIC LEVELER - HYDRAULIC SCHEMATIC
"LIP"
"RAMP"
OPTIONAL
FOR IFC
2W N.O. VALVE
ADJUSTABLE
ORIFICE
Ø.035"
PLUG
1200 PSI
SYSTEM
RELIEF
VALVE
3450 RPM
ANTI-CAVITATION
1.4 GPM
PUMP
@ 880 PSI
FILTER
MICRON
149
MOTOR
VALVE. 900
ADJ SHUTTLE
BACKPRESSURE
PSI AT 5.5 GPM
CHECK
8:1 P.O.
CHECK
VALVE
VALVE.
1000 PSI
SEQUENCE
ADJUSTABLE
PORT
PORT
TANK
ORIFICE
Ø.035"
PLUG
P.T.C.
CHECK
VALVE
8:1
PORT
1.5" x 6" S.A.
2.5 GPM (8')
6 GPM (6')
2.5" x 13.62" S.A. (6')
2.5" x 16.62" S.A. (8')
M
CYLINDER
LIP
VELOCITY FUSE
CYLINDER
RAMP
POWER UNIT ASSEMBLY

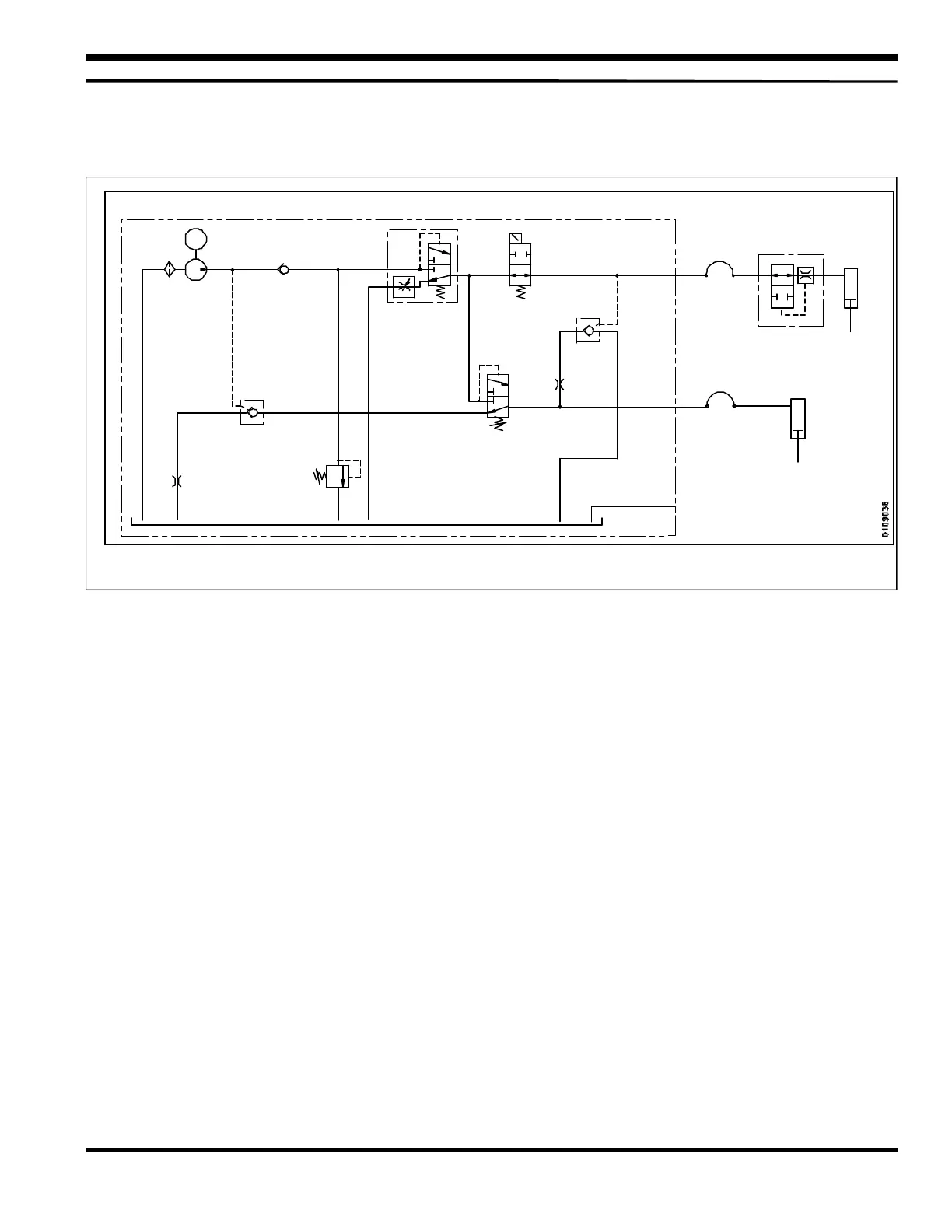

Figure 22 - Hydraulic Schematic
