BELOW DOCK END LOADING
OPERATION
1. To service truck/trailers with end loads, activate the
leveler by jogging the ramp control release chain
(short, quick pulls of chain) until the platform has
risen 12 to 14 inches and the lip is pendant. Release
the ramp control release chain.
2. Walk on platform to the front edge (DO NOT walk on
lip). While the platform is lowering pull and hold the
safety leg chain. Walk the leveler down until the
platform is in the fully below dock position with the lip
positioned between the face of the loading dock and
the truck/trailer bed. Release safety leg chain. See
figure 6.
3. When loading/unloading is complete, continue with
normal operation or return the leveler to stored
position. See Storing Leveler.
STORING LEVELER
1. To store the leveler if platform is lower than dock
level, jog the ramp control release chain until
platform is 2 to 3 inches above dock level and lip is
fully pendant, then walk on platform to lower to dock
level with lip resting in the lip supports.
•
If platform is higher than dock level and lip is fully
pendant, walk on the platform to lower to dock
level with lip resting in the lip supports. See
figure 7.
OPERATION INSTRUCTIONS MECHANICAL CONT.

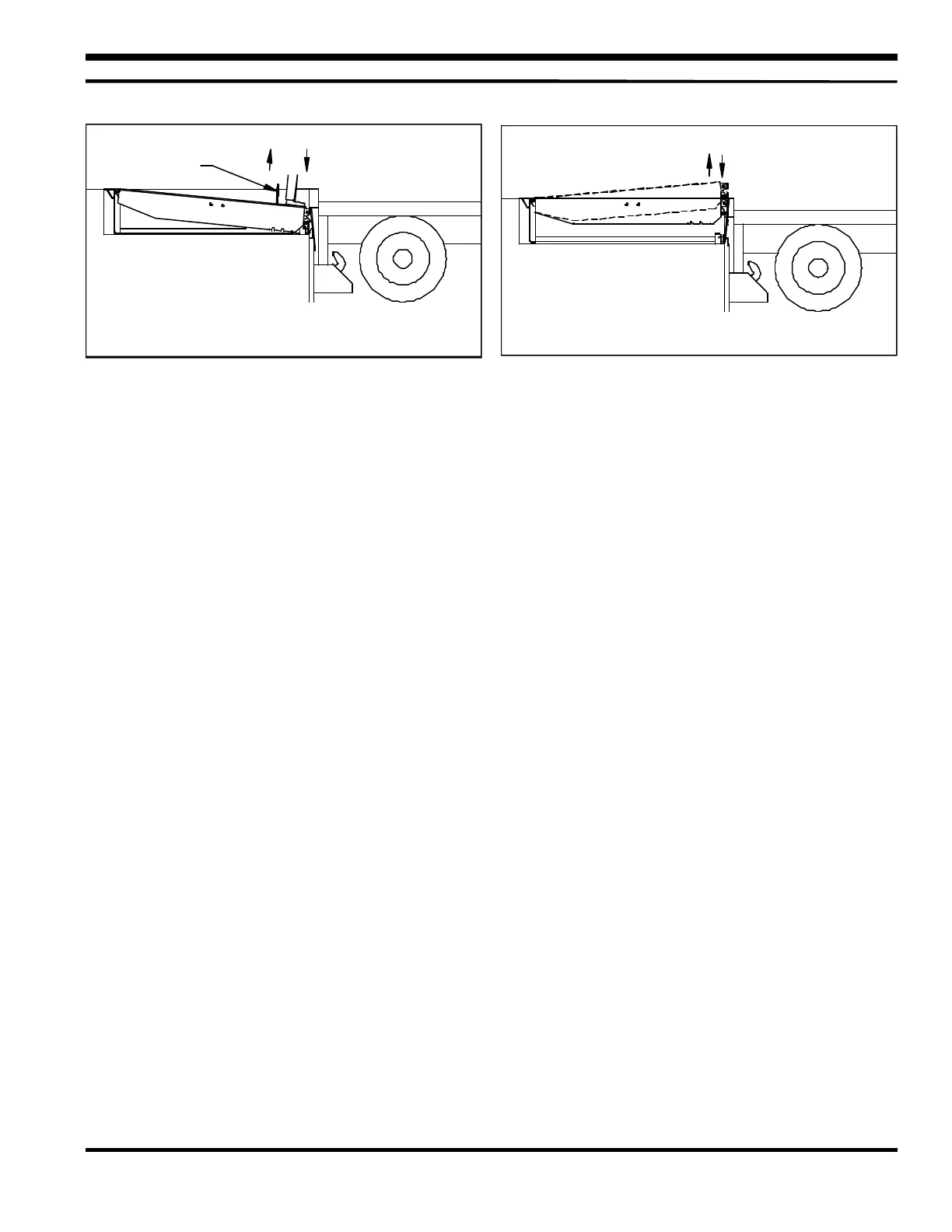

Figure 7 - Leveler Stored
Figure 6 - End Load Operation
Safety Leg
Chain
