Genisys
Dock Leveler Owners Manual
Pub. No. 1185-R1 - August 2004 17
HYDRAULIC LEVELER ADJUSTMENTS
HYDRAULIC POWERED LEVELER
ADJUSTMENTS
NOTE:
The adjustments listed below are factory averages,
field adjustment may be necessary. None of the
adjustments will change the operating speed of the
hydraulic dock leveler.
LIP STOP BOLT:
The lip stop bolt adjusts the position of the lip when
the leveler is stored. The lip stop bolt is factory
adjusted on units with 16" and 18" lips, to allow the
lip to be centered on lip supports when stored.
OPTIONAL ARTD:

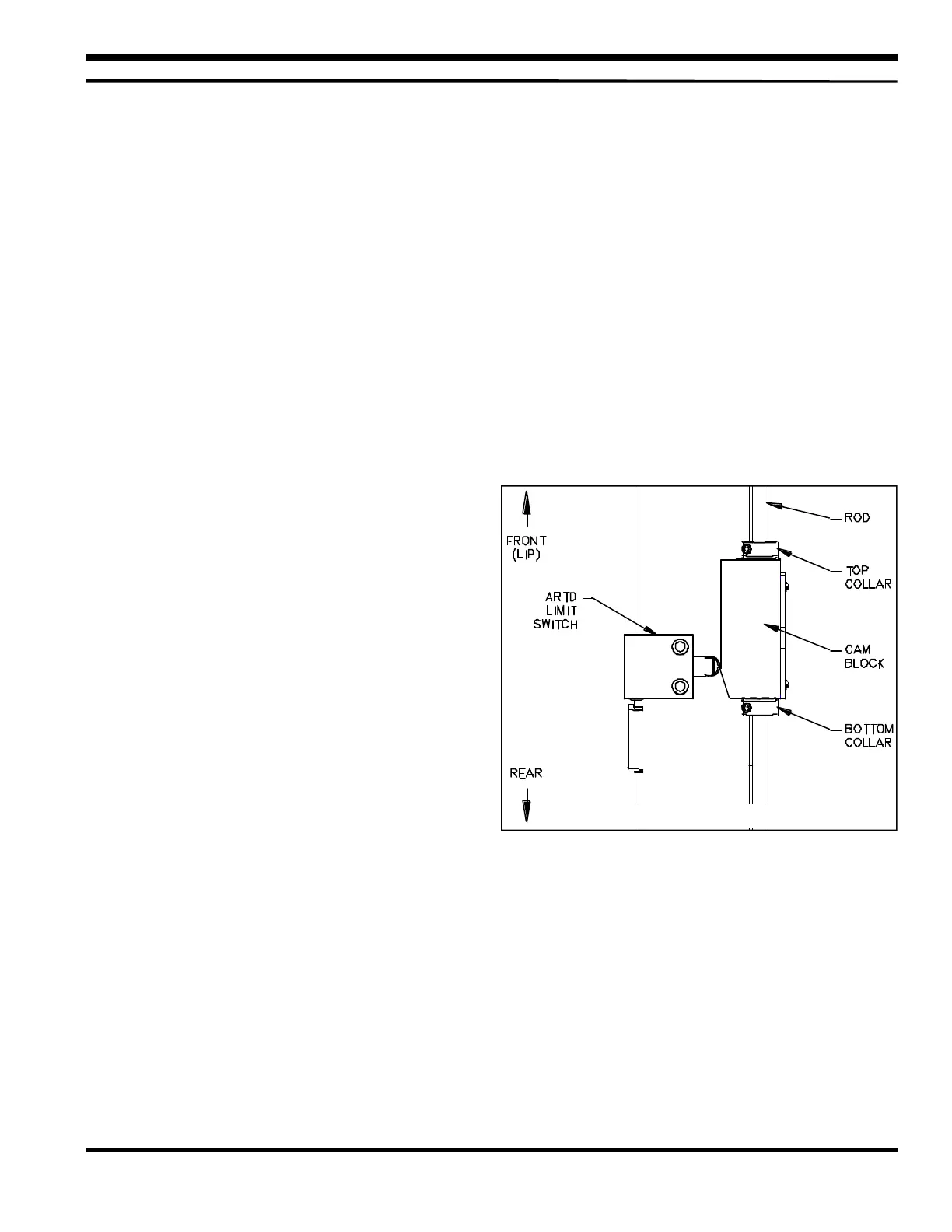

ARTD Limit Switch Cam
This limit switch senses the position of the lip during
leveler automatic return to dock (ARTD) via the
ARTD cam. The ARTD cam is factory adjusted to
turn off the ARTD limit switch before the lip contacts
the lip stop bolt.
• DO NOT adjust collars more than 1/16" at a time.
Move only one collar at a time.
• Moving the ARTD cam towards the lip will make the
ARTD limit switch stay on longer.
• Moving the ARTD cam away from the lip will make
the ARTD limit switch turn off earlier.
• Retest leveler after each adjustment.
Figure 19 - Restrictor Limit Switch
