Rittal VX25 SV - 4.6 Fitting Cross Members

24 Anreih-Schranksystem VX25 SV / Enclosure baying system VX25 SV / Armoires juxtaposables VX25 SV
4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
Teiltürhöhe H mm
Partial door height H mm
Hauteur de porte partielle H mm
Position Trennsteg H1 mm
Position cross member H1 mm
Position traverse de séparation H1 mm
150 150
200 200
300 300
400 400
600 600
800 800
1000 1000
1200 1200
1400 1400
1600 1600
1800 1800
2000 2000
TX30
mm

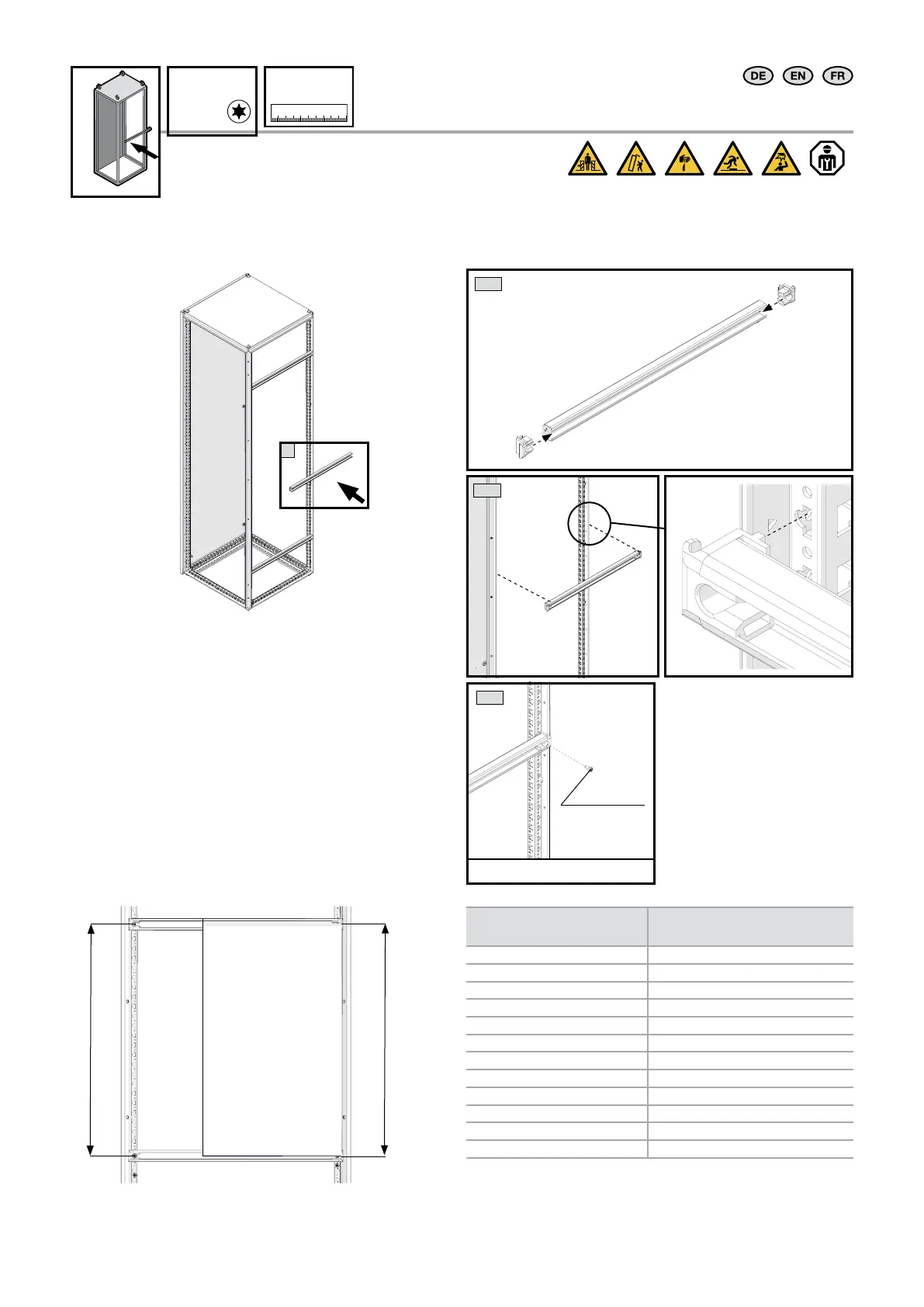

4.6 Trennstege montieren
4.6 Fitting the cross members
4.6 Montage des traverses de séparation
1
1.3
M = 5 Nm / 44 in-lbs
1x (M5 x 12)
1.2
H1 H
1.1
