Rittal VX25 SV User Manual

25Anreih-Schranksystem VX25 SV / Enclosure baying system VX25 SV / Armoires juxtaposables VX25 SV
4. Montage und Aufstellung
4. Assembly and siting
4. Montage et implantation
TX30
Schutzart IP 54/Protection category IP 54/Indice de protection IP 54
Für Schrankbreite mm
For enclosure width mm
Pour largeur d'armoire mm
Höhe mm
Height mm
Hauteur mm
Best.-Nr.
Model No.
Référence
1
400 100 9682.334
2
400 300 9682.344
1
600 100 9682.336
2
600 300 9682.346
1
800 100 9682.338
2
800 300 9682.348
1
1000 100 9682.330
2
1000 300 9682.340
1
1200 100 9682.332
2
1200 300 9682.342
Schutzart IP 2X/Protection category IP 2X/Indice de protection IP 2X
Für Schrankbreite mm
For enclosure width mm
Pour largeur d'armoire mm
Höhe mm
Height mm
Hauteur mm
Best.-Nr.
Model No.
Référence
2
400 300 9682.354
2
600 300 9682.356
2
800 300 9682.358
2
1000 300 9682.350
2
1200 300 9682.352
mm

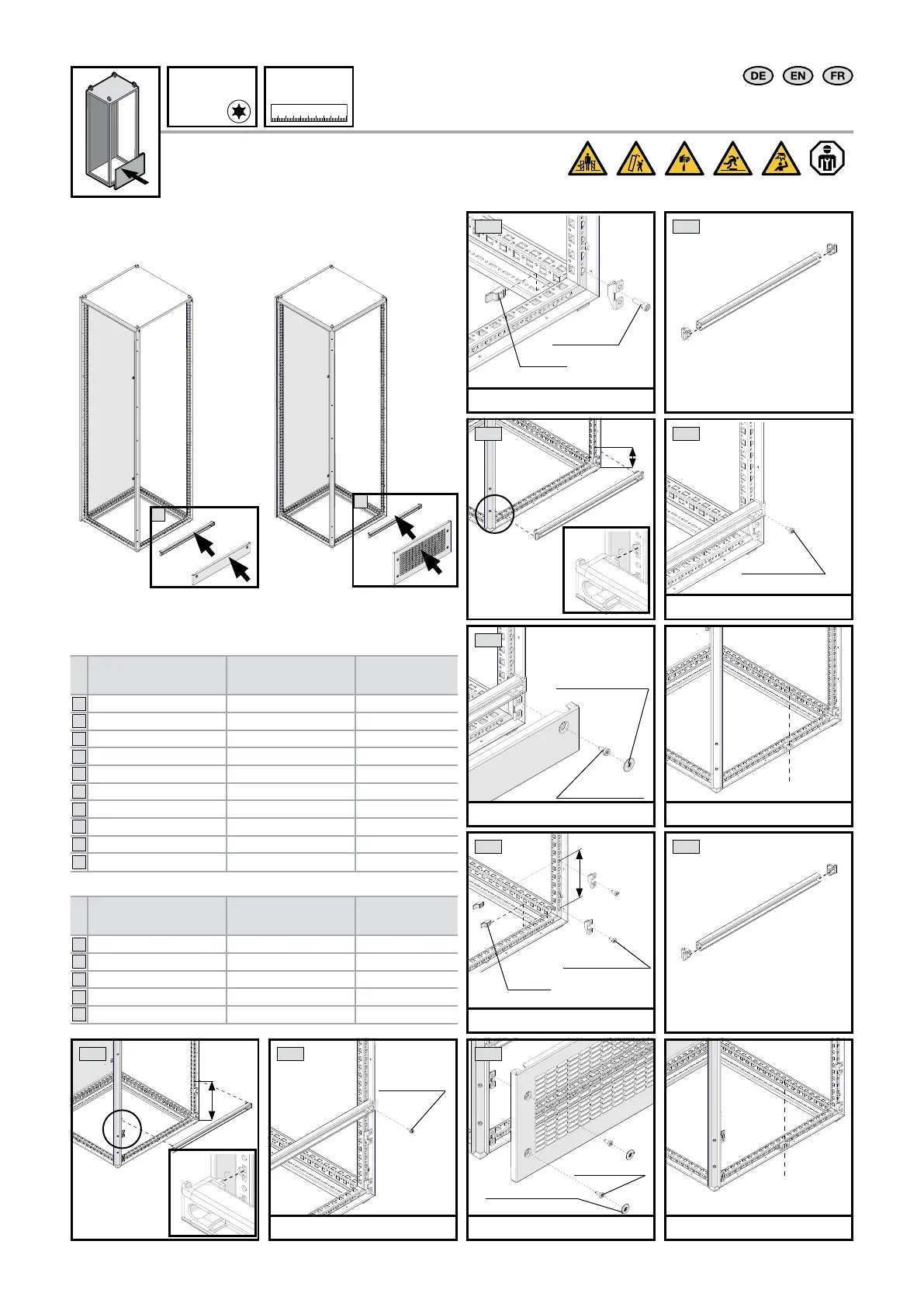

4.7 Frontblenden montieren
4.7 Fitting the front trim panels
4.7 Montage des bandeaux de finition
Frontblenden, unten /
Front trim panels, bottom /
Bandeaux de finition inférieurs
1
2
1.2
1.4
M = 5 Nm / 44 in-lbs
1x (M5 x 12)
1.5
1x (M6 x 16)
M = 5 Nm / 44 in-lbs
1x (Ø 23,6 TX30)
2.2
2.4
M = 5 Nm / 44 in-lbs
1x (M5 x 12)
2.5
M = 5 Nm / 44 in-lbs
2x (M6 x 16)
2x (Ø 23,6)
W > 800 mm
W > 800 mm
2.3
271
1.1
M = 5 Nm / 44 in-lbs
1x (M6 x 20)
1x (M6)
1.3
71
2.1
M = 5 Nm / 44 in-lbs
2x (M6 x 20)
2x (M6)
150
