Rittal VX25 SV - Heat Dissipation Over Surfaces; 12. Heat Dissipation Over Surfaces

47Anreih-Schranksystem VX25 SV / Enclosure baying system VX25 SV / Armoires juxtaposables VX25 SV
12. Wärmeabfuhr über Oberflächen

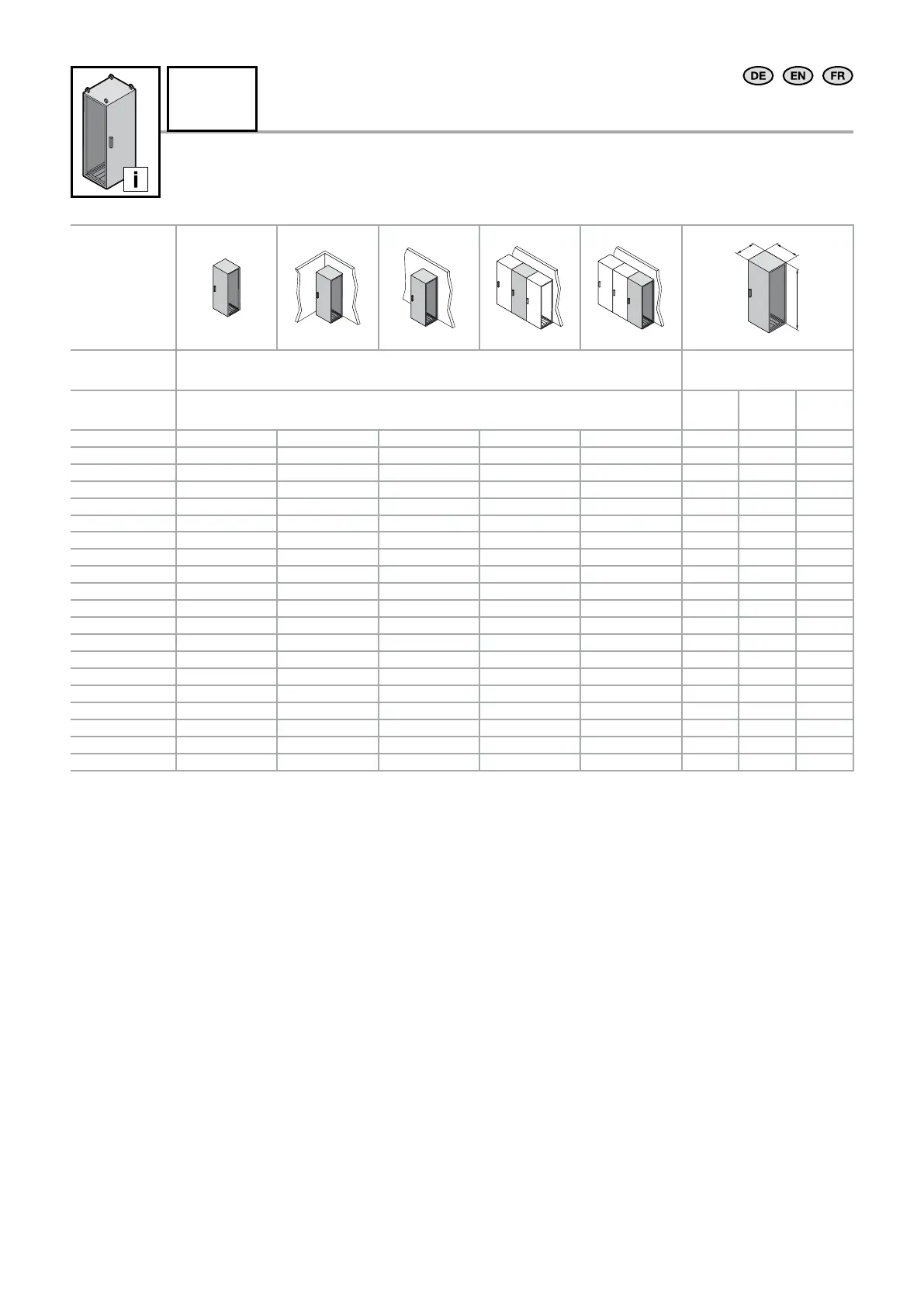

12. Heat dissipation over surfaces
12. Dissipation thermique par surface
D
H
W
Best.-Nr. VX
Model No. VX
Référence VX
T
u
= 25 °C
T
i
= 45 °C
P
v
= 0 W
Schrank/
Enclosure/
Armoire
Stahlblech
Sheet steel
Tôle d'acier
W (∆T = 20 K) W mm H mm D mm
9666.916
653 525 578 472 525 850 2000 600
9666.926
775 625 678 572 625 1100 2000 600
9666.956
547 437 473 402 737 850 2000 400
9666.966
662 530 565 495 530 1100 2000 400
9680.005
660 532 580 484 532 1000 2000 600
9680.025
718 577 630 524 577 1000 2200 600
9680.207
854 694 758 630 694 1200 2000 800
9680.227
926 750 821 680 750 1200 2200 800
9680.406
433 345 398 292 345 400 2000 600
9680.408
524 419 489 348 419 400 2000 800
9680.426
433 345 398 292 345 400 2000 600
9680.428
524 419 489 348 419 400 2000 800
9680.606
531 425 478 372 425 600 2000 600
9680.608
628 505 576 435 505 600 2000 800
9680.626
578 462 520 404 462 600 2200 600
9680.628
684 548 626 471 548 600 2200 800
9680.806
684 548 606 490 548 800 2200 600
9680.808
796 641 718 563 641 800 2200 800
9680.826
684 548 606 490 548 800 2200 600
9680.828
796 641 718 563 641 800 2200 800
Q
S
[W]
