7.6.2 Connecting RKMultiControl quadro controllers
Example: You would like to interconnect two RKMultiControl quadro controllers. To do this,
you need a lead.
• Plug the lead into socket 5 (see section 7.2.3) of the first controller.
• Plug the lead into socket 5 of the second controller.
• Activate the load resistors on the first and last connected controllers using the parameter 233.
• Set up the controllers with the parameter 113 (see section 7.7).

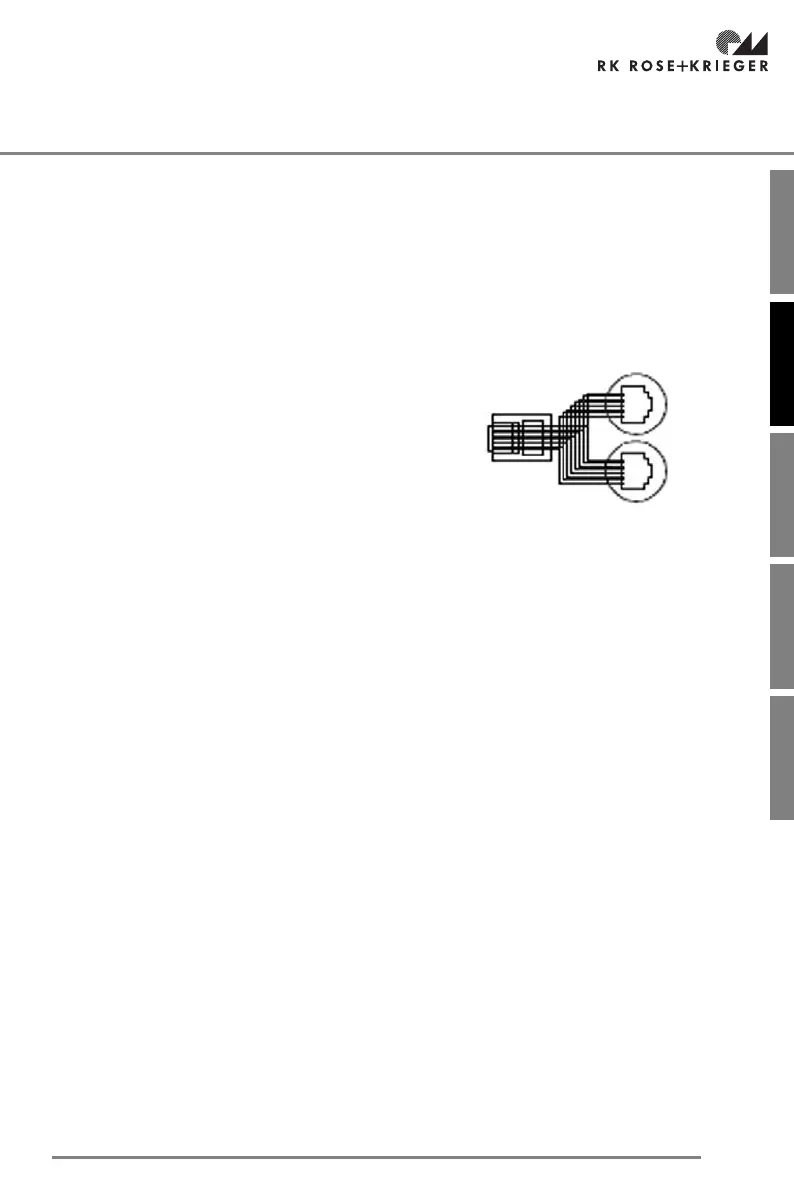

If you want to connect more than two RKMultiControl
quadro controllers, you need a Y-adapter.
If you set to few or too many load resistors, this can lead to
error functions.
