3. SETTING FOR COMMUNICATION
IMCD06-E2
14
2. Here, as an interval time of 250 ms needs to be set, calculate the interval time set value using the
equation (See P. 13).
Interval time set value:
250 ms ÷ 1.666 ms 150 (Round to the nearest whole number.)
Interval time:
150 × 1.666 ms 249.9 (Approx. 250 ms)
Thus, enter an interval time set value of 150 calculated from the above by pressing the UP or
DOWN key at the front of the controller.

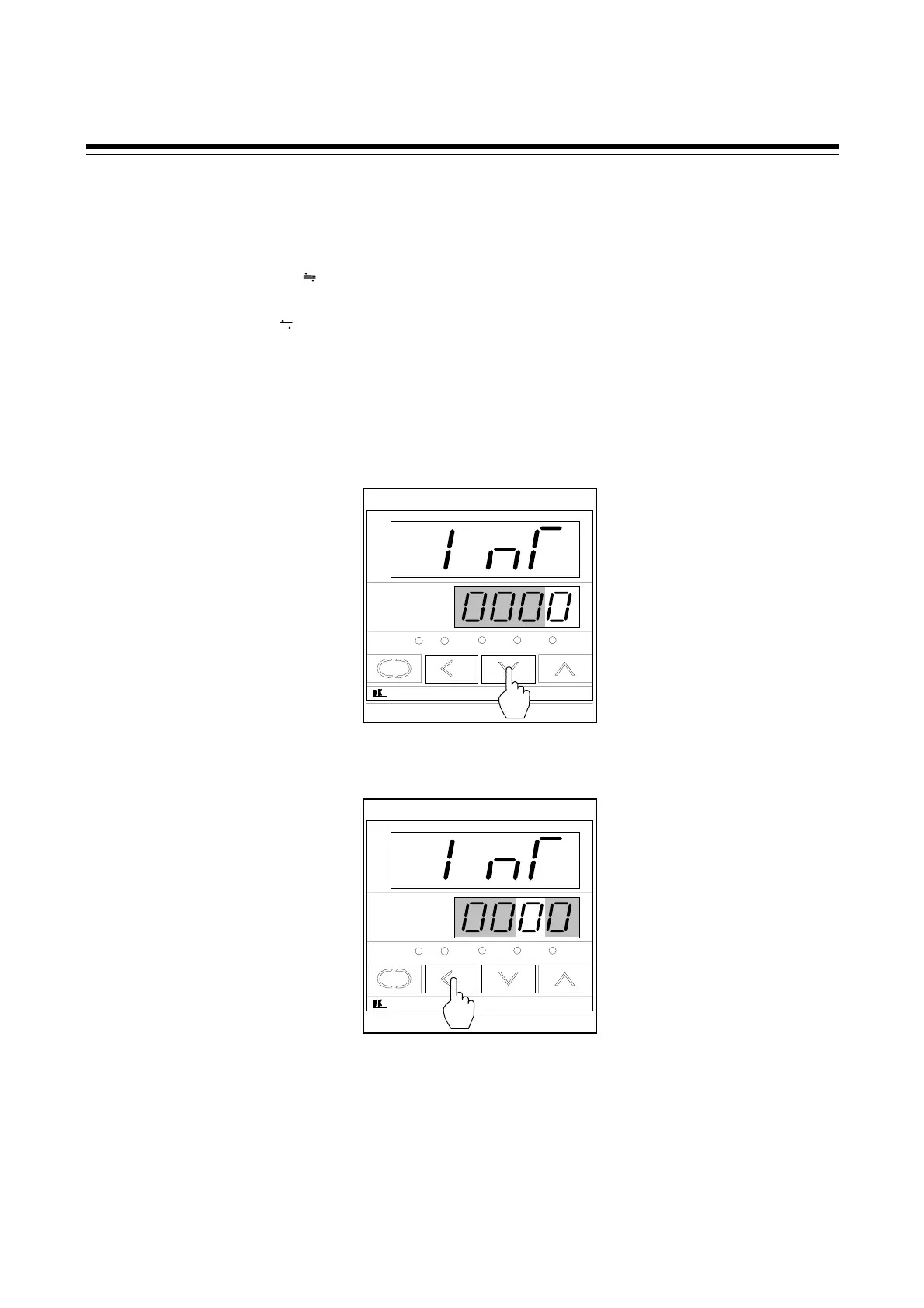

3. Press the DOWN key to enter "0" in the lowest digit.
PV
SV
AT OUT1 OUT2 ALM1 ALM2
R/S
CD901
C
SET
4. Press the <R/S key to brightly light the tens digit.
PV
SV
AT OUT1 OUT2 ALM1 ALM2
R/S
CD901
C
SET
