-7-

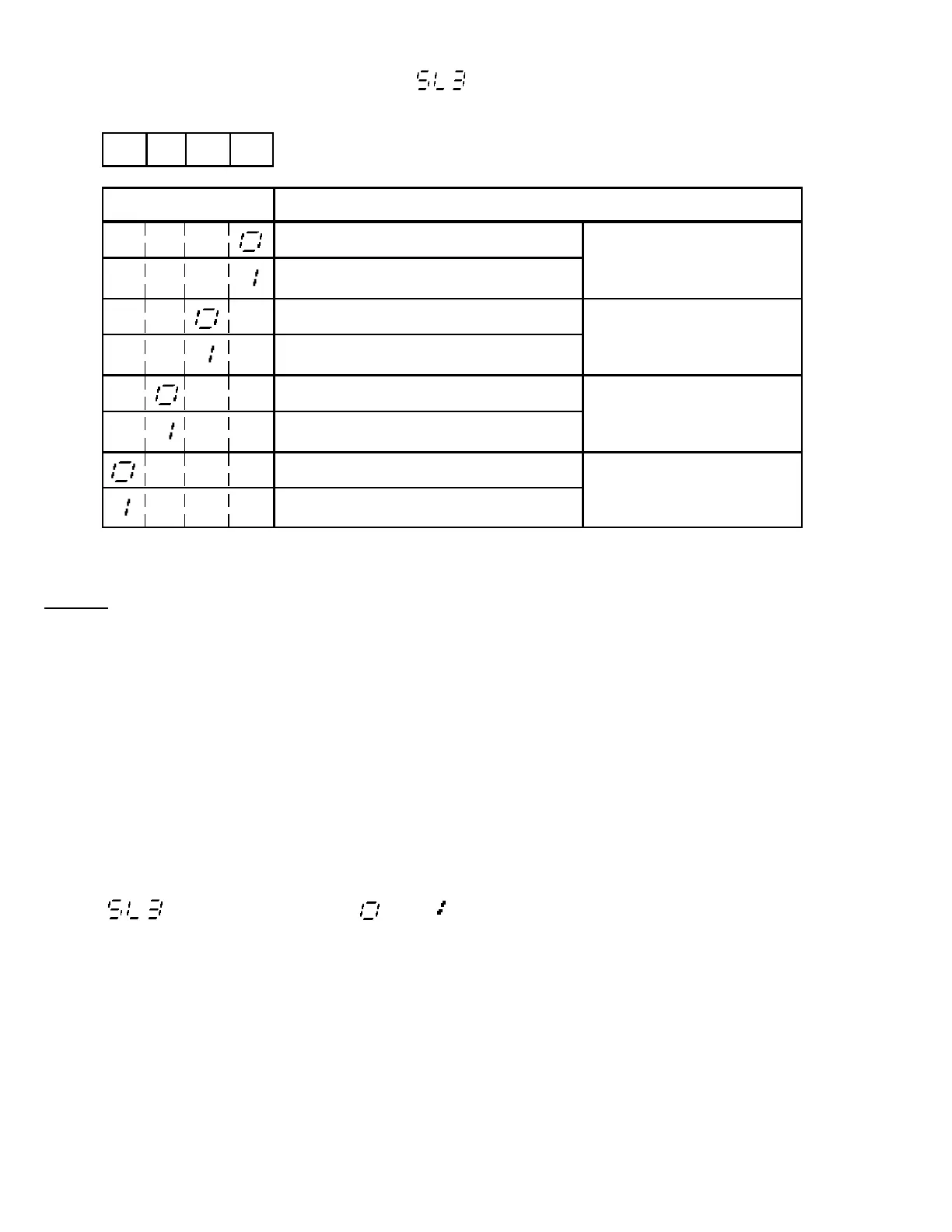

(3) Selection of break alarm (HBA, LBA) etc. ( )
Set-value (SV) display unit
VALUE DESCRIPTION
Without HBA function Heater break alarm (HBA)
With HBA function selection
Without LBA function Control loop break alarm
With LBA function (LBA) selection
Without Z-132 specification Special specification
With Z-132 specification ‰ [Z-132] selection
First alarm side Selection of control loop
Second alarm side break alarm output terminals
‰ Z-132 specification : Heater break alarm output is delayed.
Cautions
1. “With HBA function” setting is ignored for the following instruments :
C Instrument with deviation or process alarm as the second alarm (ALM2)
C Instrument with control loop break alarm (LBA)
C Instrument whose control output is the current output type
2. “With LBA function” setting is ignored for the following instruments :
C Instrument with deviation or process alarm as the first alarm (ALM1) and second alarm (ALM2)
C Instrument with heater break alarm (HBA)
C Instrument whose control action is type W (Heating / cooling PID action [Water-cooling] ) or type A
(Heating / cooling PID action [Air-cooling] ).
3. For the instrument without heater break alarm (HBA), “With Z-132 specification” setting is ignored.
4. “ ” setting displays are only “ ”and “ ”.
