Section 3 - Sharks Fin Installation

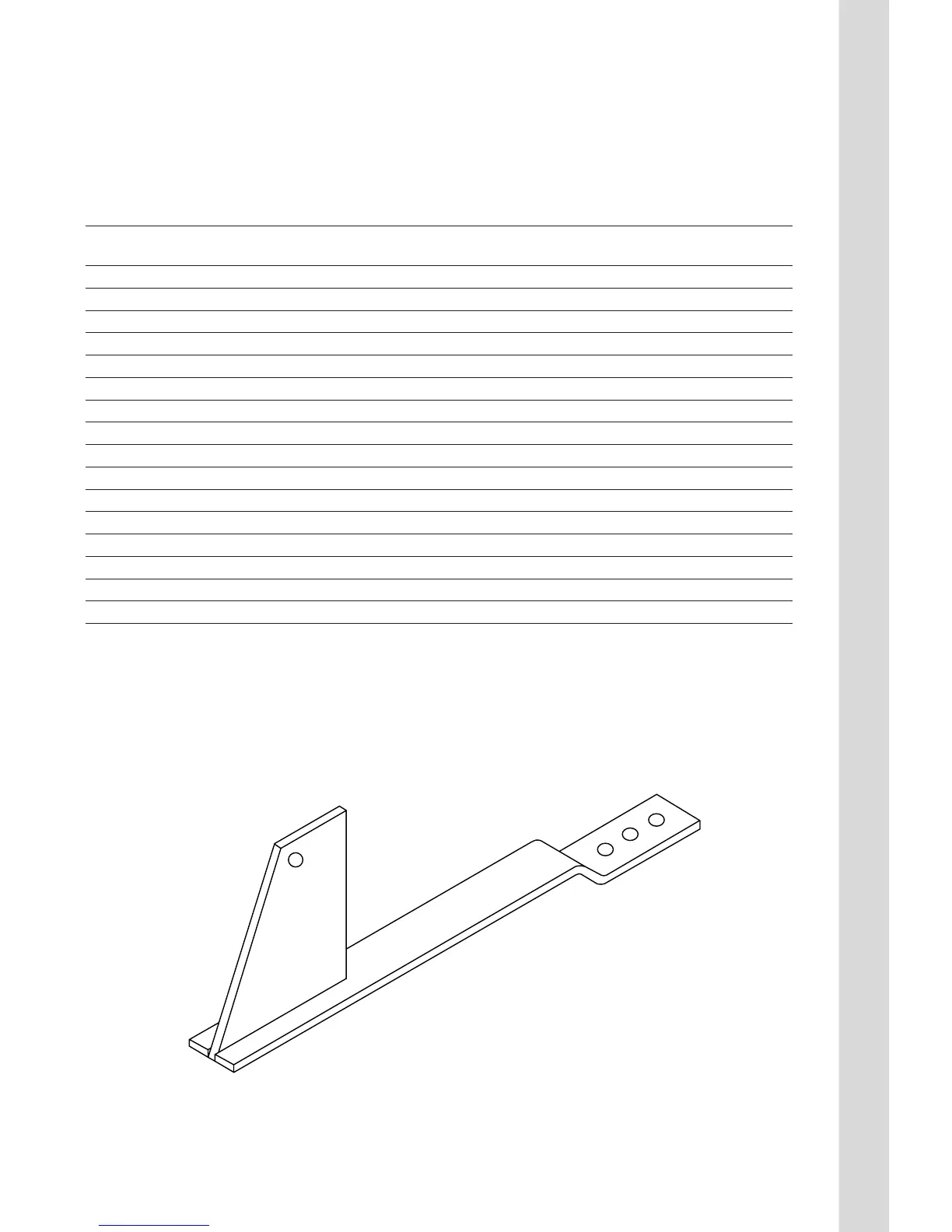

On Roof Sharks Fin
Before attempting to t your equipment on the roof please ensure that you have all the equipment
required to complete the installation. The table below will tell you what pieces are included in each of
the packages.
Part Name 1 Panel
1 Panel
Extension
2 Panel
Frame
Connector
1 Steel Pipe = 2000mm - - 2 -
2 Steel Pipe = 1000mm 2 2 - -
3 Connection Bolt - - - 2
4 Pipe Bracket 4 4 6 -
5 Shark Tail 4 2 4 -
6 U-Bolt Bracket M8 4 2 4 -
7 Washer M8 8 4 8 -
8 Nut M8 8 4 8 -
9 Adjustment Screw M8 5 2 5 -
10 L-Rail 2 1 2 -
11 Z-Rail Long - 2080mm - - 2 -
12 Z-Rail Short - 1040mm 2 2 - -
13 Frame Connector - - - 2
14 Wind Clamp 2 2 4 -
15 Screw M6 x 16 17 9 17 4
16 Wood Screw 14 8 14 -
