RM Solar S Class 10 - Wind Protection Rail

48
Section 4 - In Roof Frame Installation
Wind Protection Rail

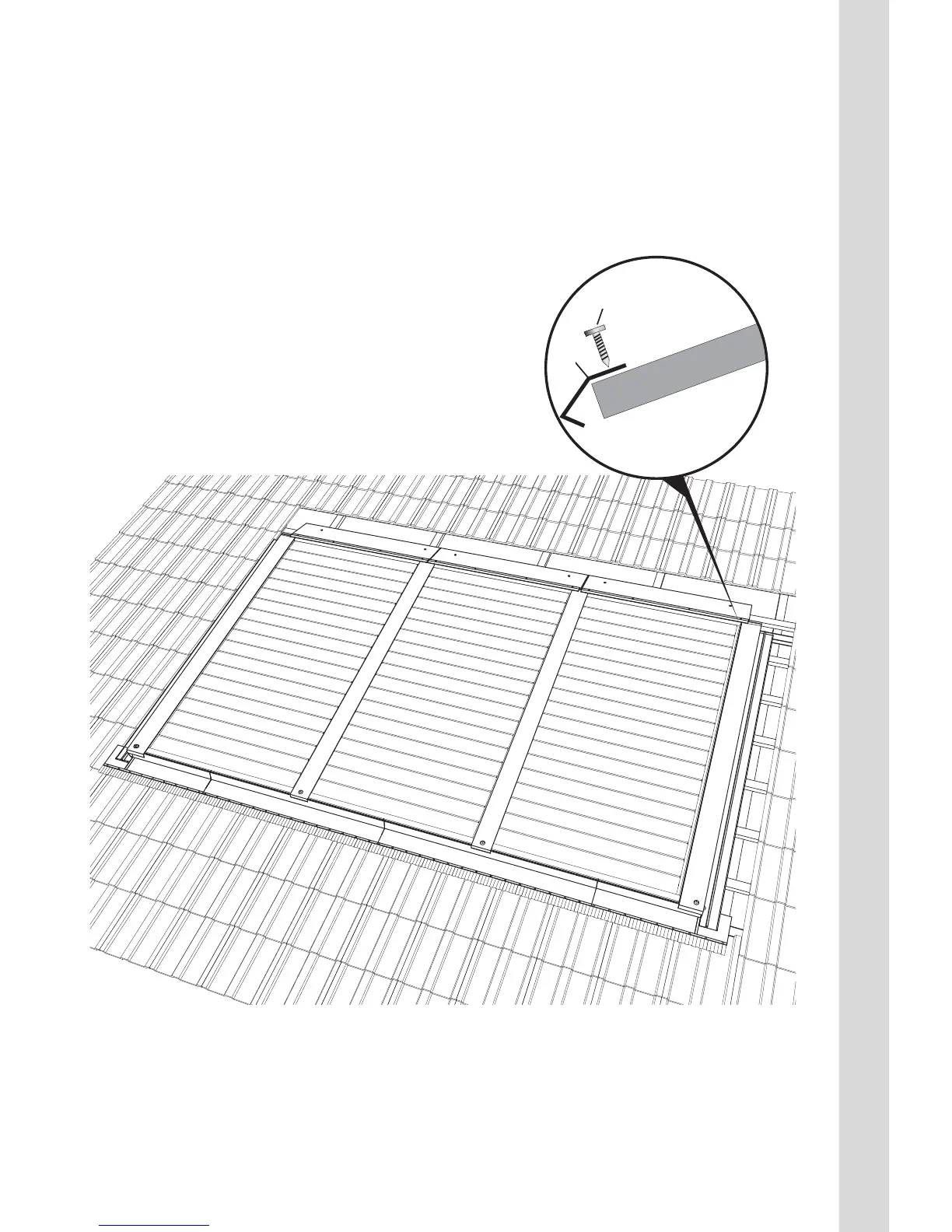

Place wind protection rail (15) and x with wood screws 4x30 (23) each 4 times. Note that the buckle
must be placed direct over the edge of the wooden wedge (9). Each end of the wind protection rail
should overlap the vertical ashings and pin the top of the vertical ashings in place.
15
23
