RM Solar S Class 10 - Mounting Upper Wooden Wedge

41
Section 4 - In Roof Frame Installation
Mounting Upper Wooden Wedge

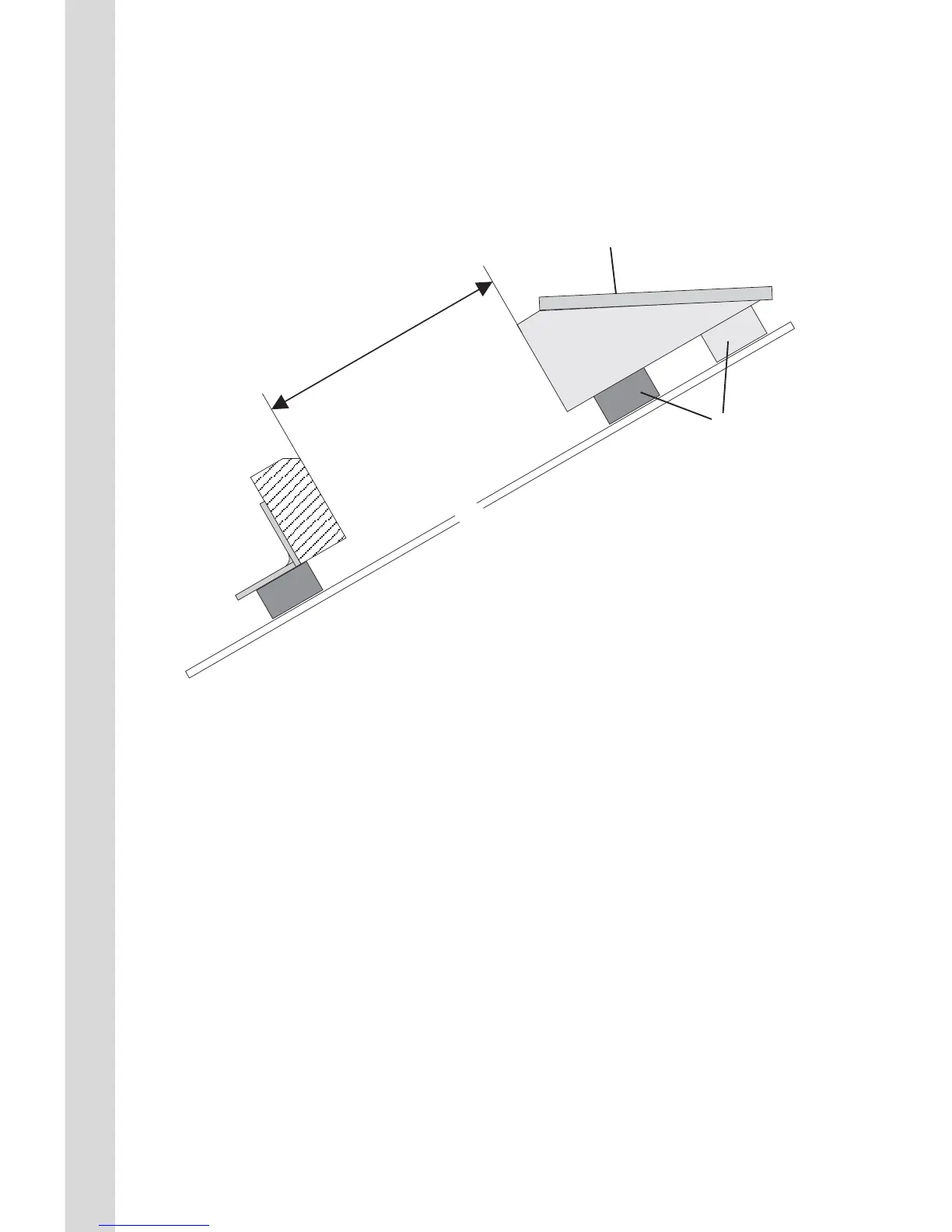

The upper wooden wedge (no in set incl.) has to be mounted so that the distance between the lower
wooden slat and the top angled timber wedge is 1950mm. The top angled timber wedge must sit on
at least two battens. Mount a second support batten if necessary.
195 cm
1950 mm
mind. 2
