Section 3 - A Frame Installation

Before attempting to t your equipment on the roof please ensure that you have all the equipment

required to complete the installation. The table below will tell you what pieces are included in each of

the packages.

Part Name 1 Panel 2 Panel

Frame

Connector

1 Panel

Horizontsl

1 Rail A 1 2 - 2

2 Rail B 1 2 - 2

3 Rail C 1 2 - 2

4 Z-Rail Long - 2 - 2

5 Z-Rail Short 1 - - -

6 Frame Connector - - 2 -

7 Rail D - 1 - 1

8 Wind Clamp 2 4 4 4

9 Screw M6x16 10 19 - 19

10 Washer 8,4 5 9 - 9

11 Washer 6,4 - 2 - 2

12 Screw M8 x 20 - 2 - -

13 Nut M8 - 2 - -

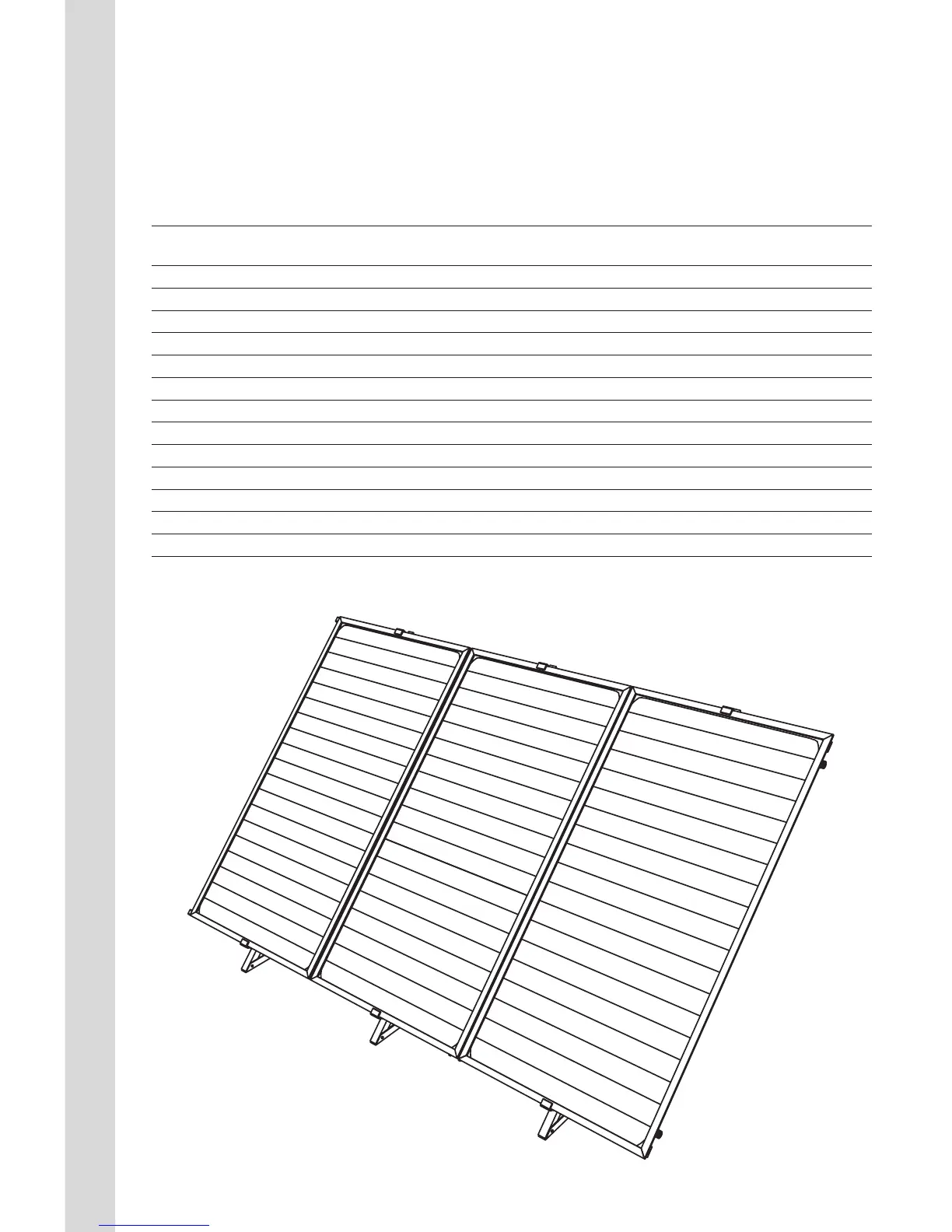

A Frame Installation
