RM Solar S Class 10 - A Frame Installation Guide

24
Section 3 - Slate Bolt Installation
A
B
max. 500 mm
5
7
3
4
3
3
4
4
7
8
7
8

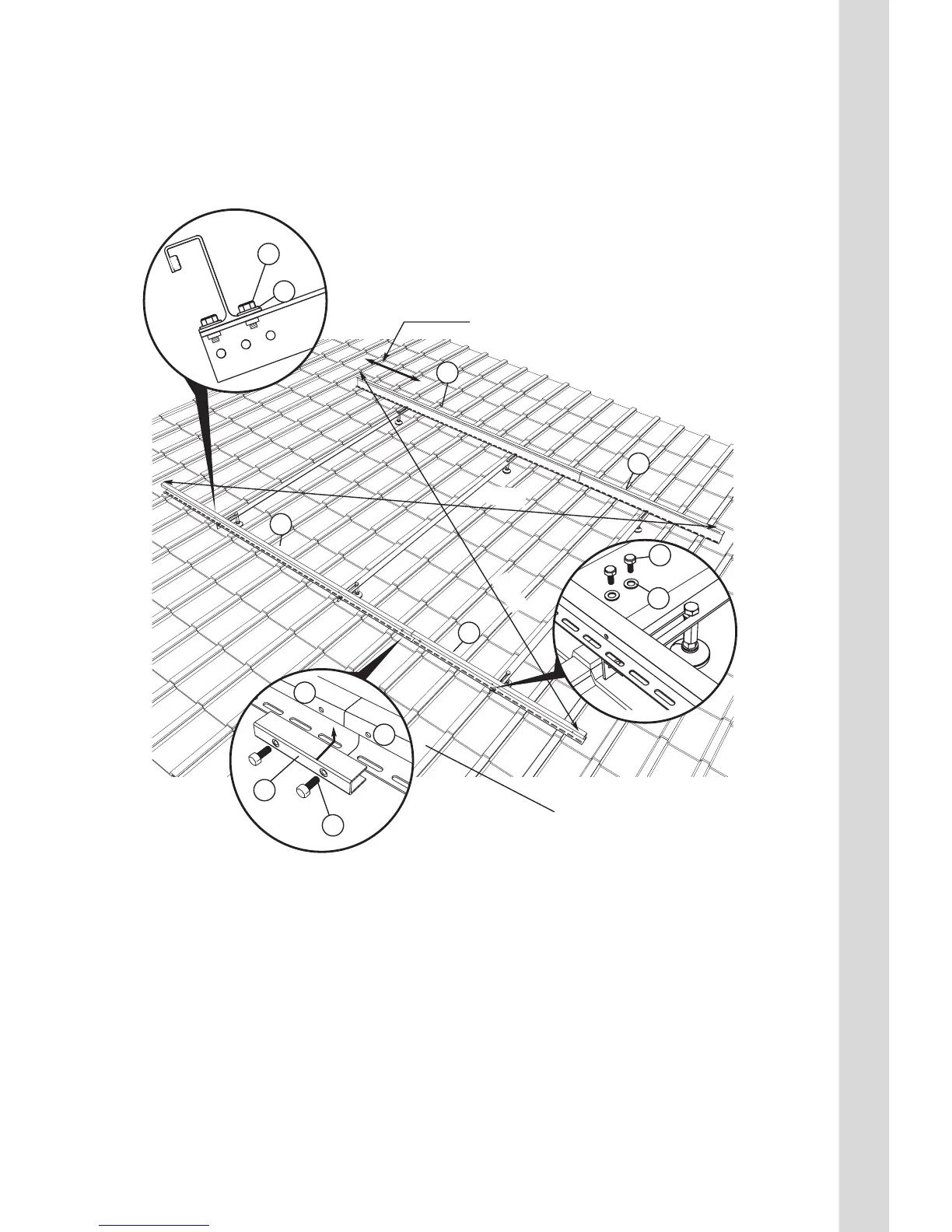

The Z-Rails have to be screwed on to the L-Rails using the M6 screws. Maximum distance from slate
bolt to the end of the Z-Rail must not be more than 500mm
