Section 4 - In Roof Frame Installation

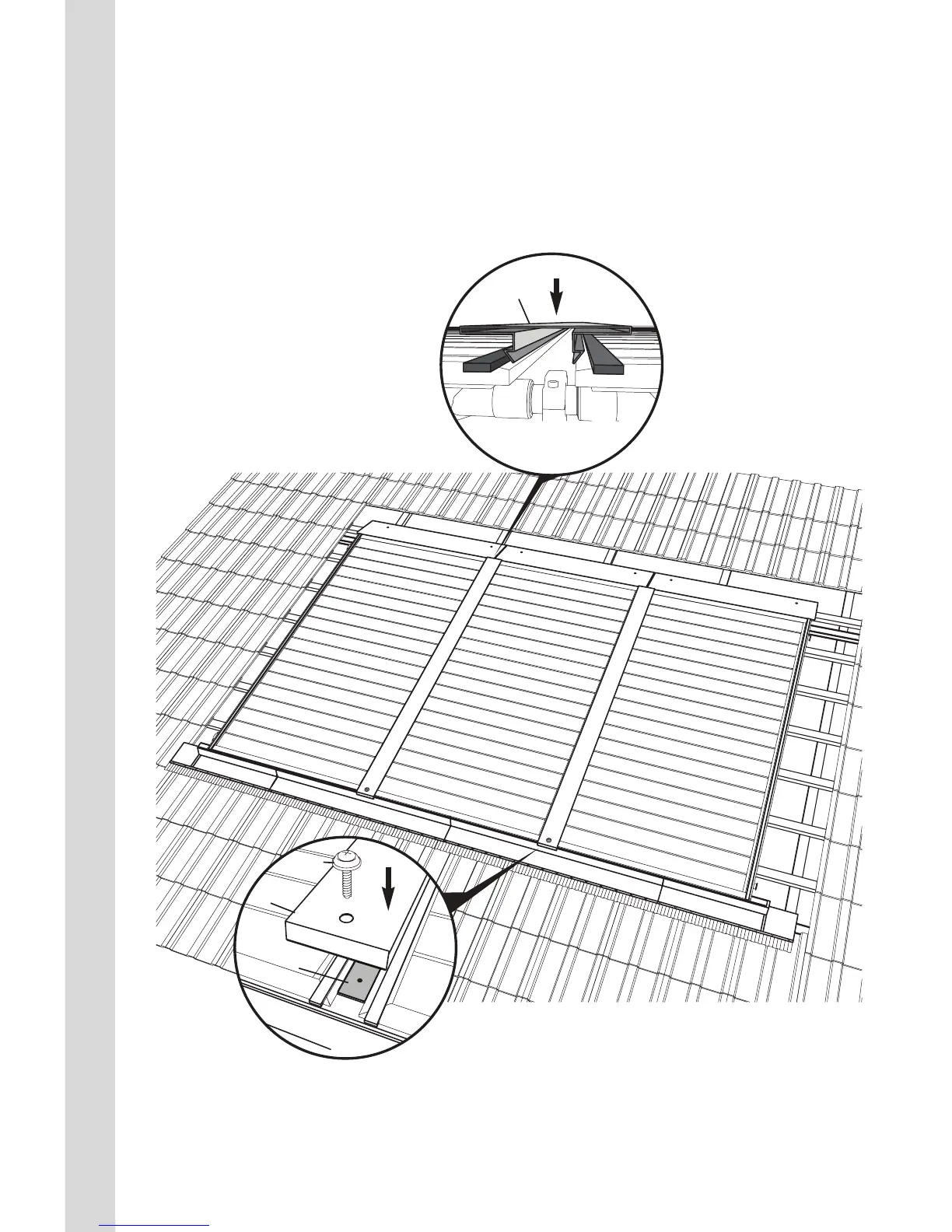

Mount Center Flashings
Place center ashing (11) on the lower collector edge and snap in starting from the bottom to the top.
Ensure the ashing snaps in tight, if required adjust the gap on the underside of the ashing. Secure
ashing into wooden block (26) using screws supplied (25).
N.B. Do not over tighten screw (25) this will deform the ashing.
11
25
11
26
