Section 3 - Sharks Fin Installation
6
9
9
8
7

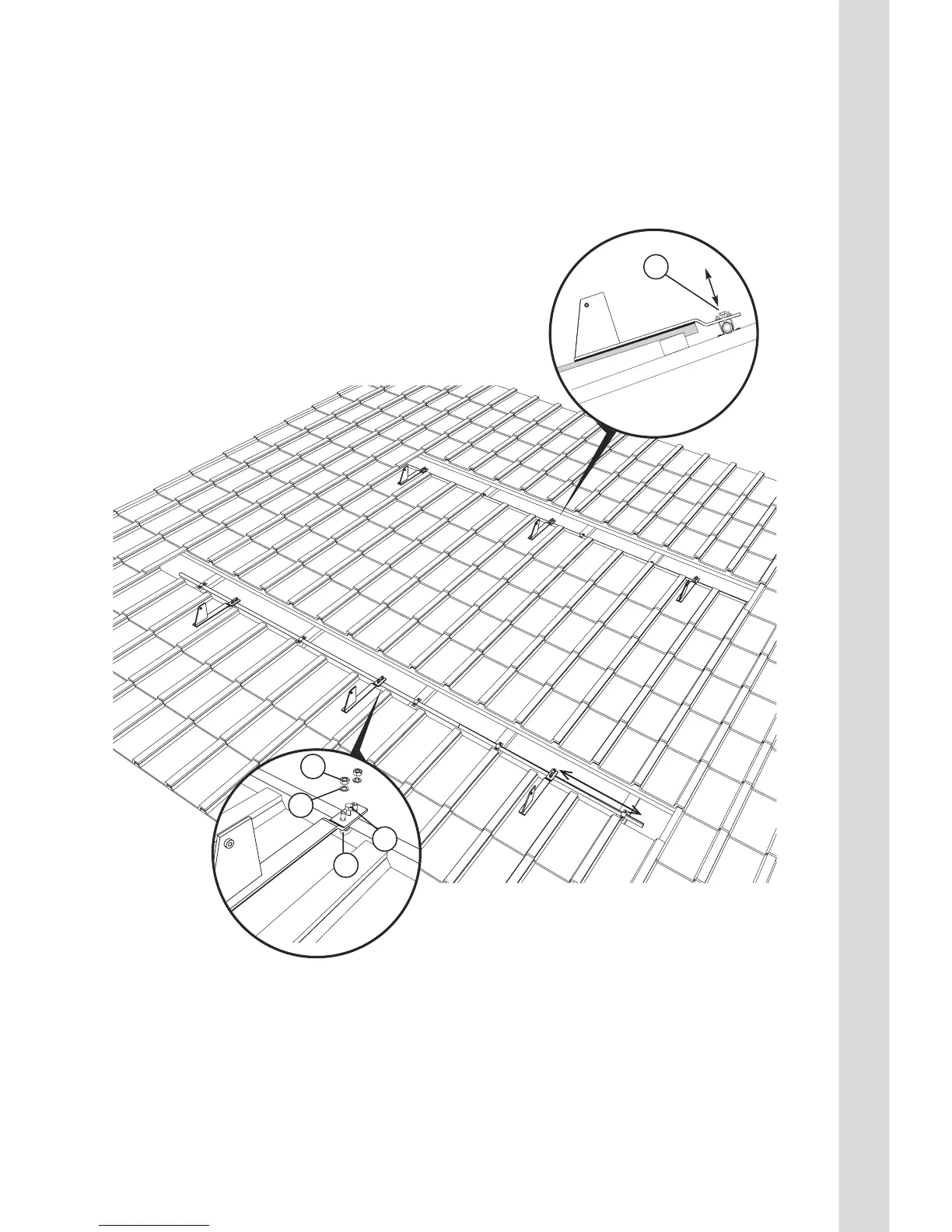

Screw the align screw [9] in the centre hole of the shark bracket. Now use the U-Bolt Bracket [6],
washer [7], and nut [8] to x the hooks to the pipes. Choose so that the brackets are placed under
the centre of the panel. Note: The outside Sharks n should not be more than 500mm from the
outer panel edge.
Warning: In areas of heavy snow: please replace roof tile with a metal tile, otherwise the roof
tile might break under heavy snow loads, or use the slate screw installation kit.
500mm Max
To Next Page
