16
Section 3 - Sharks Fin Installation
A
B
max. 500 mm
13
15
11
11
A
B
C
15
16
12
12
15
16
12
11

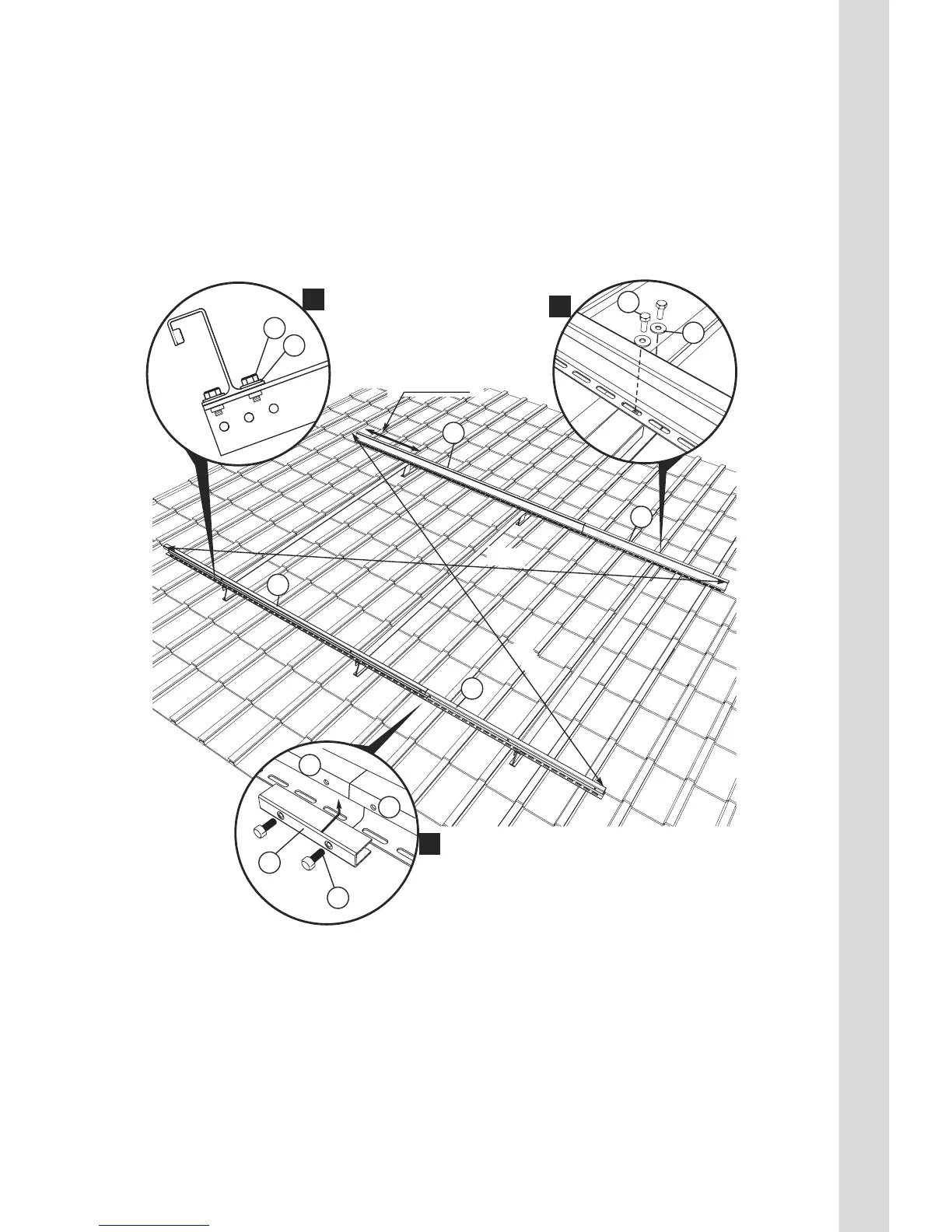

Screw the Z-Rail [11] [12] to the L-Rail [10] using two screws M6 and two washers [16] on each
connection. Maximum Distance from sharks n to the end of the Z-Rail must not be more than
500mm! If more than 2 panels are to be mounted use the frame connector as shown in g. C. Before
screws are tightened be sure that a cross measurement has been made. A = B.
