Section 3 - Slate Bolt Installation

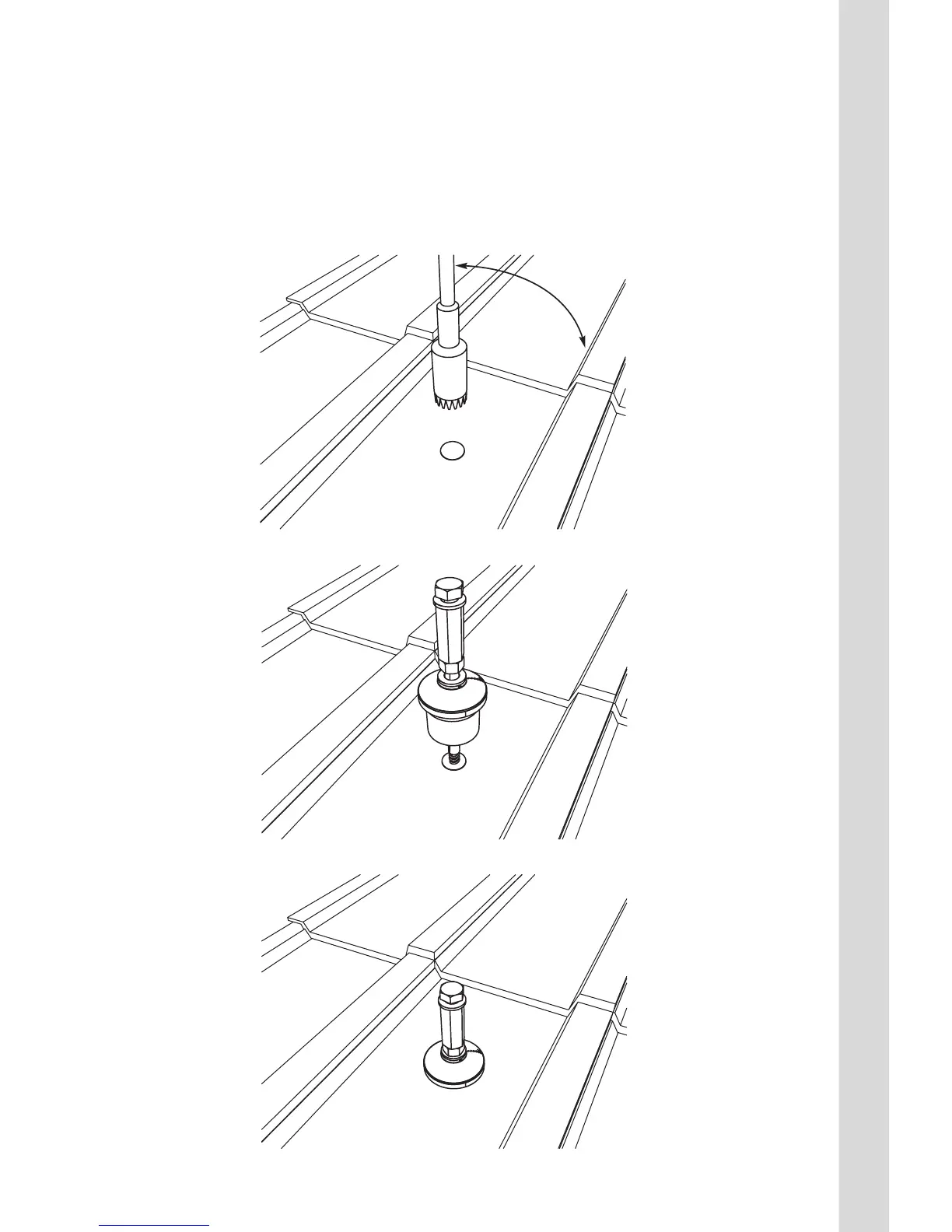

Drill the holes on each marked position with a high quality 25mm masonry bit. Make sure the drill
does not spin too fast or you may break the tile / slate. Do not penetrate beyond the tile / slate. After
drilling the holes into the slates, use an 8mm wood bit to make a hole through the rafters at each
position. Bolt the bottom part of the slate bolt into each hole. Note: The angle between rafter and
drill bit must be 90
o
.
90°
