Section 3 - A Frame Installation
To protect the panels from getting affected by strong winds they have to be screwed tightly to the
rood structure. If this is not possible, each panel must be attached to a minimum weight of 220kg/
panel. This can be done in two ways:

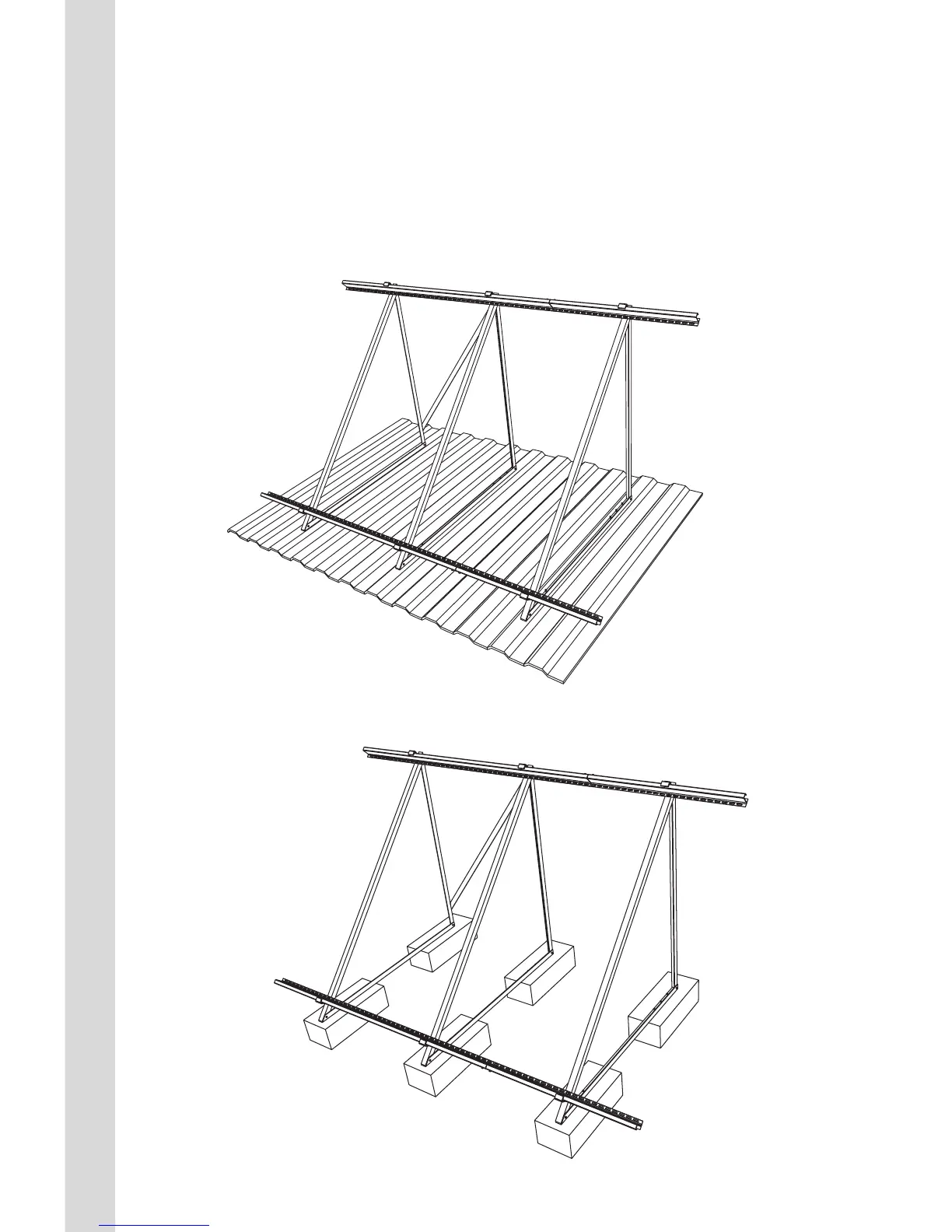

1. Screw the A frame to an aluminium trapeze plate and cover it with gravel.
2. Use concrete blocks as a foundation and screw the A frame to it.
