RMG EC 24 - Introduction; General Information; Design Variants

INTRODUCTION
...............................................................................................................................................................................................................
...............................................................................................................................................................................................................
Manual EC 24 · EN05 · 2015-02
1
Introduction
General information
Design variants
The EC 21 temperature corrector (correction is made via the temperature measured and a fixed
pressure value) or the EC 24 volume corrector (correction is performed using measured pressure
and temperature values) can be used as a unit together with electronic turbine meters from RMG or
separately with any mechanical turbine or rotary displacement meters.
The following device types are available:

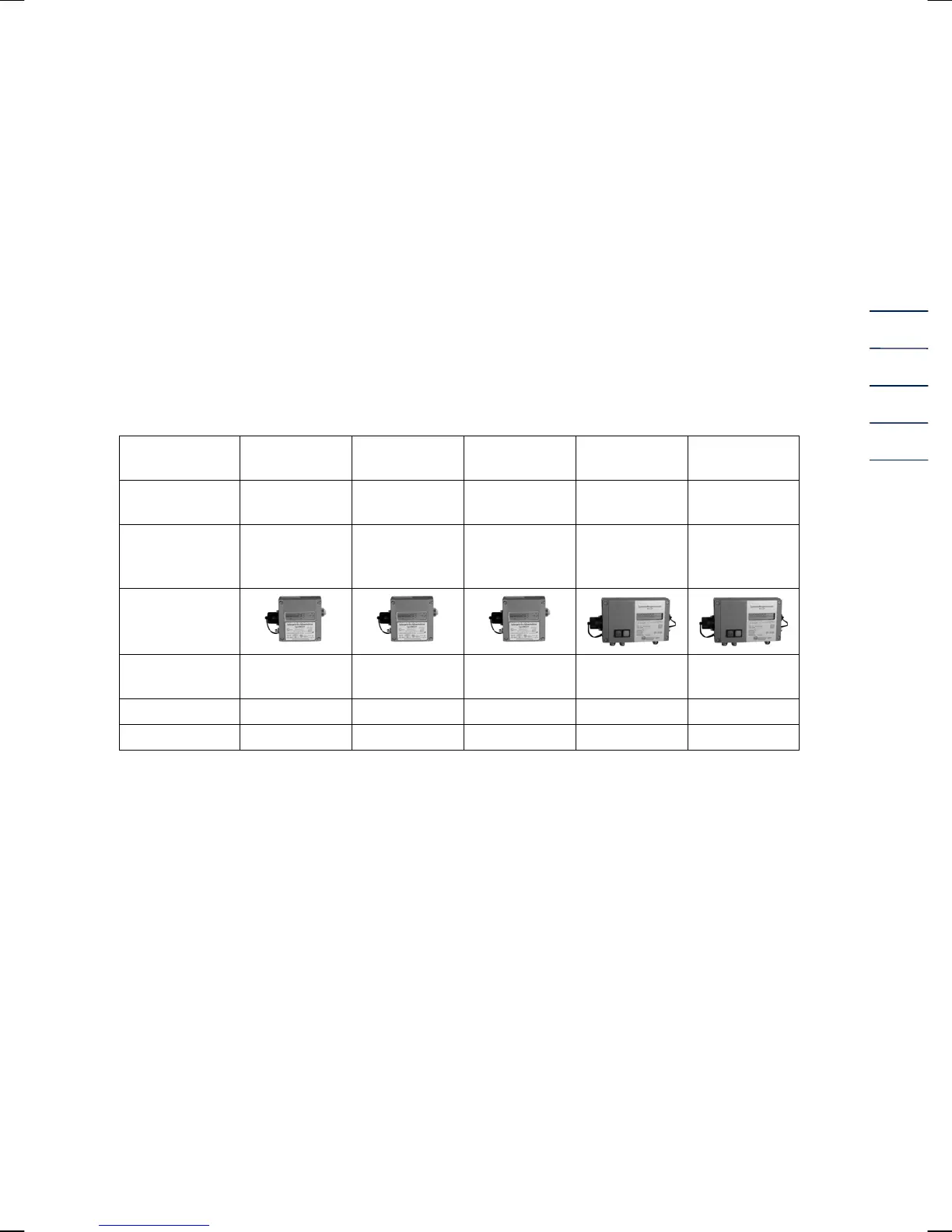

Device type TERZ 94 TRZ 03 TE
TRZ 03 TEL
EC 21 EC 24 EC 24
(pulse input)
Measuring
element (meter)
electronic electronic electronic electronic mechanical
Function Vm totalizer Vm totalizer Vm totalizer and
volume
correction (T)
Vm totalizer and
volume
correction (p,T)
Vm totalizer and
volume
correction (p,T)
Case
Inputs Wiegand (1 or 2
channels)
Wiegand (1 or 2
channels)
Wiegand (1 or 2
channels)
Wiegand (1 or 2
channels)
Reed (1 channel)
Pulse comparison No Yes Optional Optional No
Pulse outputs LF, HF LF, HF LF, HF LF, HF LF
There are various hardware configurations for the device types listed:
 without current output: Mother board
 with current output (4 to 20 mA): S board
and additional boards for:
 pulse comparison (not available for the TERZ 94)
 RS 485 interface (for Modbus)
 memory submodule with clock
If the corrector is used together with an electronic RMG turbine meter, please observe the
instructions for the measuring element in the annex to this manual!
The operating concept
The operating concept has been chosen in such a way that the operator can easily use the device
without wasting too much time reading a manual.
