E Instructions for the measuring element of the turbine meter

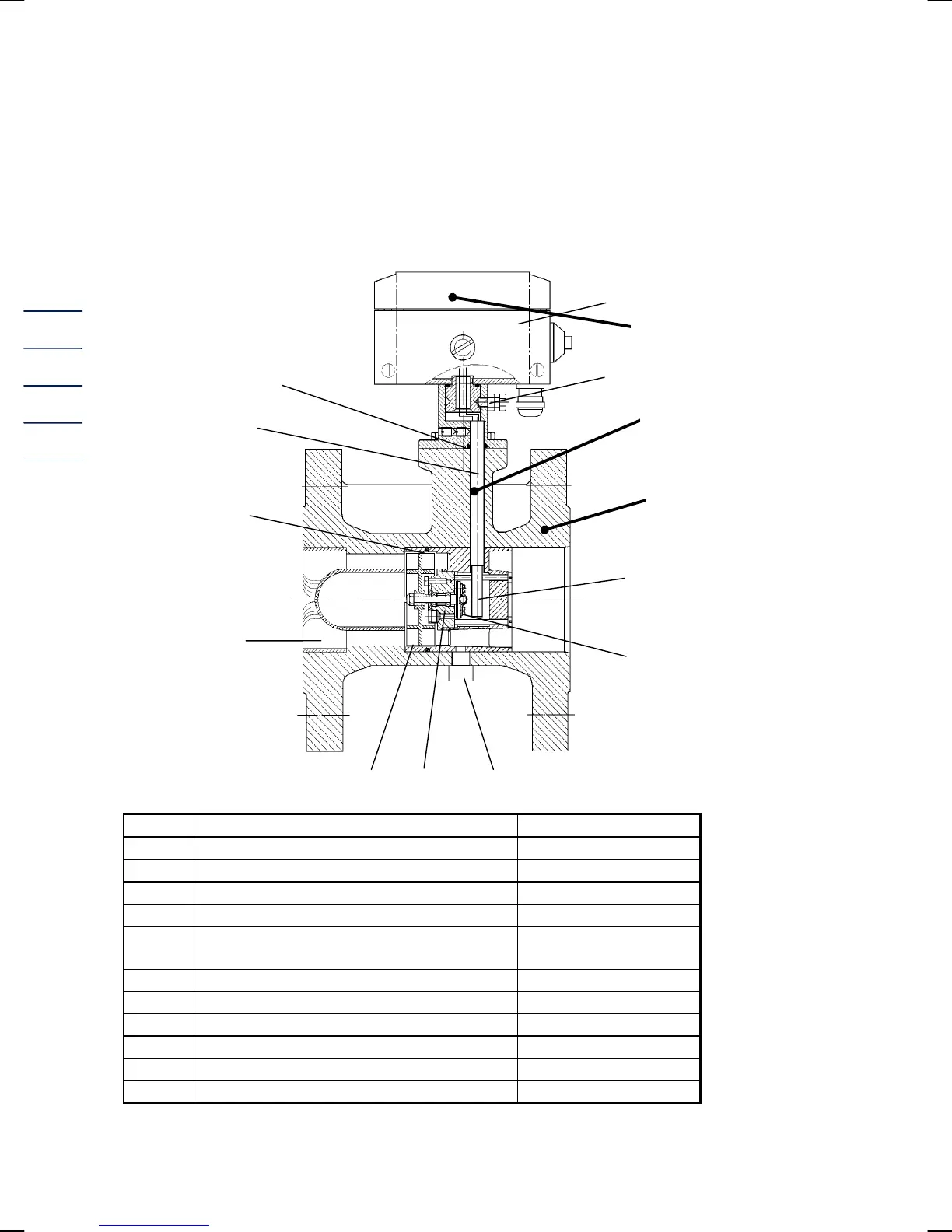

Construction
Part
Designation Material
1 Totalizing unit
2 Clamping screw Steel
3 WF01 or WF02 sensor
4 Permanent magnet Oerstit 500
5 Lubricator
(with TERZ 94 from DN 200)
6 Radial ball bearing Nirosta steel
7 Turbine wheel Delrin / aluminium
8 Flow straightener Hostaform
9 O-ring
10 Sensor sleeve with sensor Nirosta steel
11 O-ring 8x2.5 83FKM592
1
11
2
3
10
9
8
4
7
6
5
Electronic totalizing unit
or corrector
WF01/WF02 sensor
Measuring element
