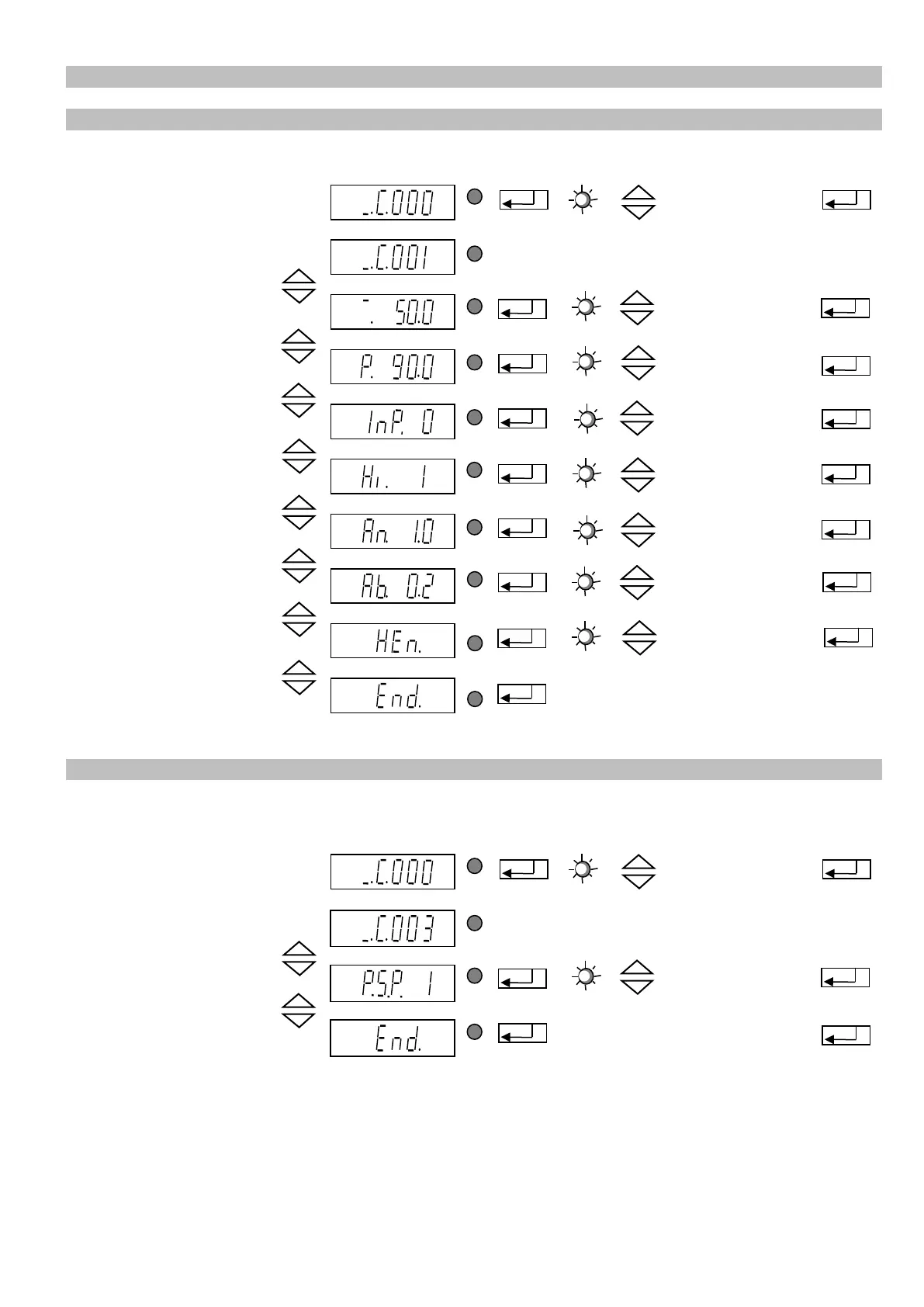

Objective: Setting and limiting the vibration amplitude, external enabling, soft start delay and soft stop de-

lay.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C001

KANAL l

KANAL 2

CODE

Set vibrating amplitude

KANAL l

KANAL 2

CODE

0 - 100 %

Limit vibrating amplitude

KANAL l

KANAL 2

CODE

50 - 100 % (*)

External enabling signal

KANAL l

KANAL 2

CODE

I = active

0 = not active

External enabling signal

direction

KANAL l

KANAL 2

CODE

I = Start = 24V DC

0 = Stop = 24V DC

Soft start time

KANAL l

KANAL 2

CODE

0 - 5 sec.

Soft stop time

KANAL l

KANAL 2

CODE

0 - 5 sec.

Select vibratory drive or

belt drive

KANAL l

KANAL 2

CODE

0 = vibratory drive

1 = belt drive

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

(*) For RNA feeders with 200 V magnets = 90 %

Objective: Sealing-in the setpoints in the main menu. A direct change of the values is no longer possible.

You can only make changes now through code C001.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C003

Setpoint (vibrating ampli-

tude)

1 = adjustable

0 = input inhibited

Return

Save and return to

main menu

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

5.5. Application-specific changes to default settings

5.5.1. Code C001 feed rate output

5.5.2. Code C003 Seal setpoint
