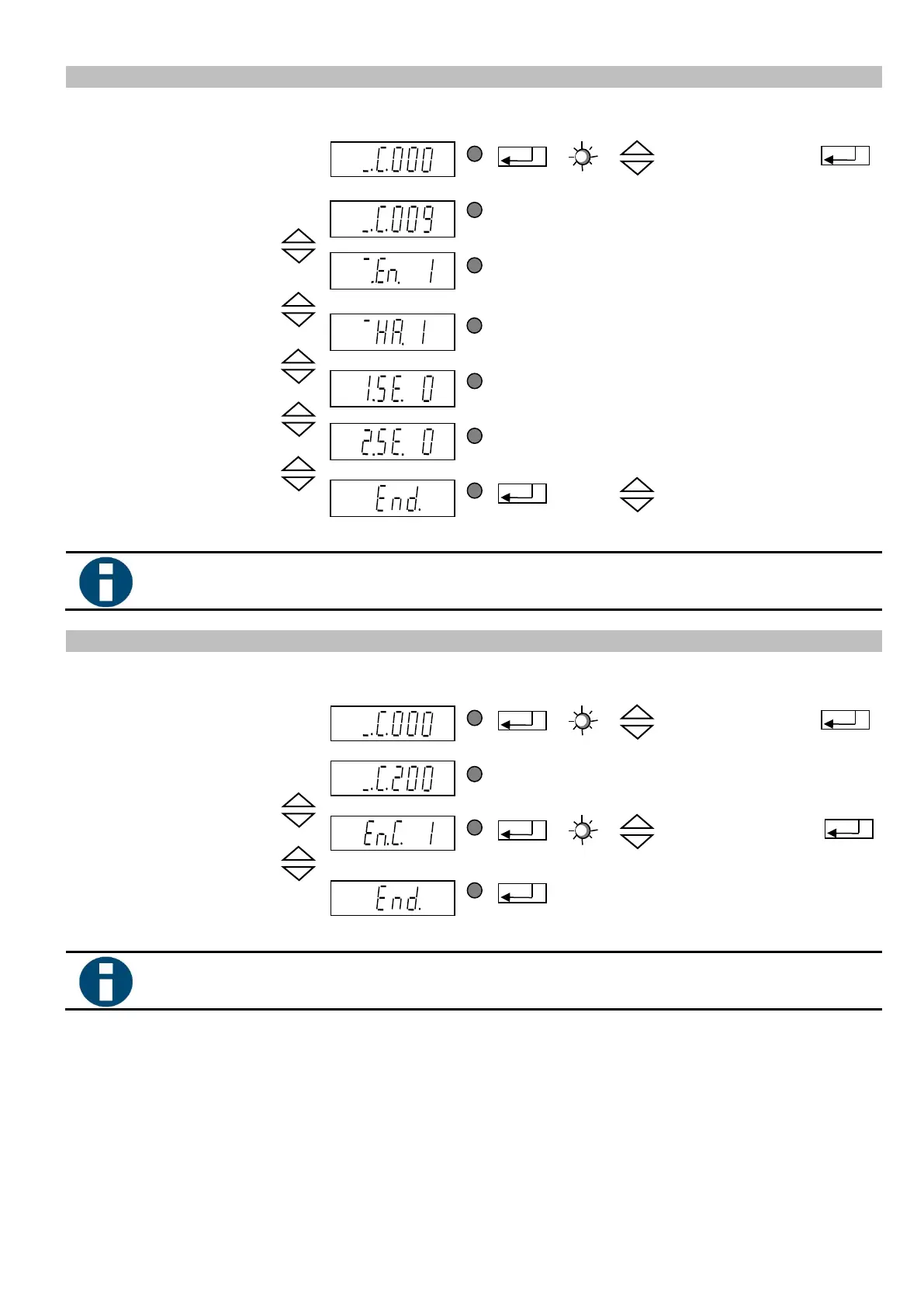

Objective: Checking of the set vibrating frequency and of the sensor inputs.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C009

External enabling signal

Channel 1

I = active

0 = not active

Channel 1 vibrating

frequency

I = 50 Hz

0 = 100 Hz

Signal at sensor input 1

I = active

0 = not active

Signal at sensor input 2

I = active

0 = not active

Return

Save and return to

main menu

Objective: An (accidental) change of the set values by the user is not possible any more.

Select code

KANAL l

KANAL 2

CODE

Set code

Code C200

KANAL l

KANAL 2

CODE

Inhibiting the setting

functions

KANAL l

KANAL 2

CODE

I = enable

0 = disable

Return

KANAL l

KANAL 2

CODE

Save and return to

main menu

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

KANAL l

KANAL 2

CODE

5.5.6. Code C009 Show status

Under menu item HA = half wave you can check whether the correct operating mode

(50/60Hz or 100/120Hz) is set.

5.5.7. Code C200 Inhibiting all code entries

Only code C200 is accepted!!!

You can change the setpoints for channels 1 and 2 in the main menu (see under 4.3).
