Gate Valves and Macerator Hose Location
The wastewater holding tank gate valves and macerator system is located on the driver side of the van just
forward of the rear tire behind a fold down access door (picture 35.3). To access the area, place a hand in
each of the molded hand pulls and lift the door slightly to release it from the magnets and track and fold the
door downward.
Once open you will find:
• 3” Conventional RV waste hose connection (red arrow in picture 35.4)
• 3” Gate valve for manual hose connection (green arrow in picture 35.4)
• 1.5” Gate valve for grey water holding tank (orange arrow in picture 35.4)
• 3” Gate valve for back water holding tank, located just behind forward door bracket (yellow arrow in
picture 35.4)
• Locking storage compartment for flexible macerator hose and nozzle assembly

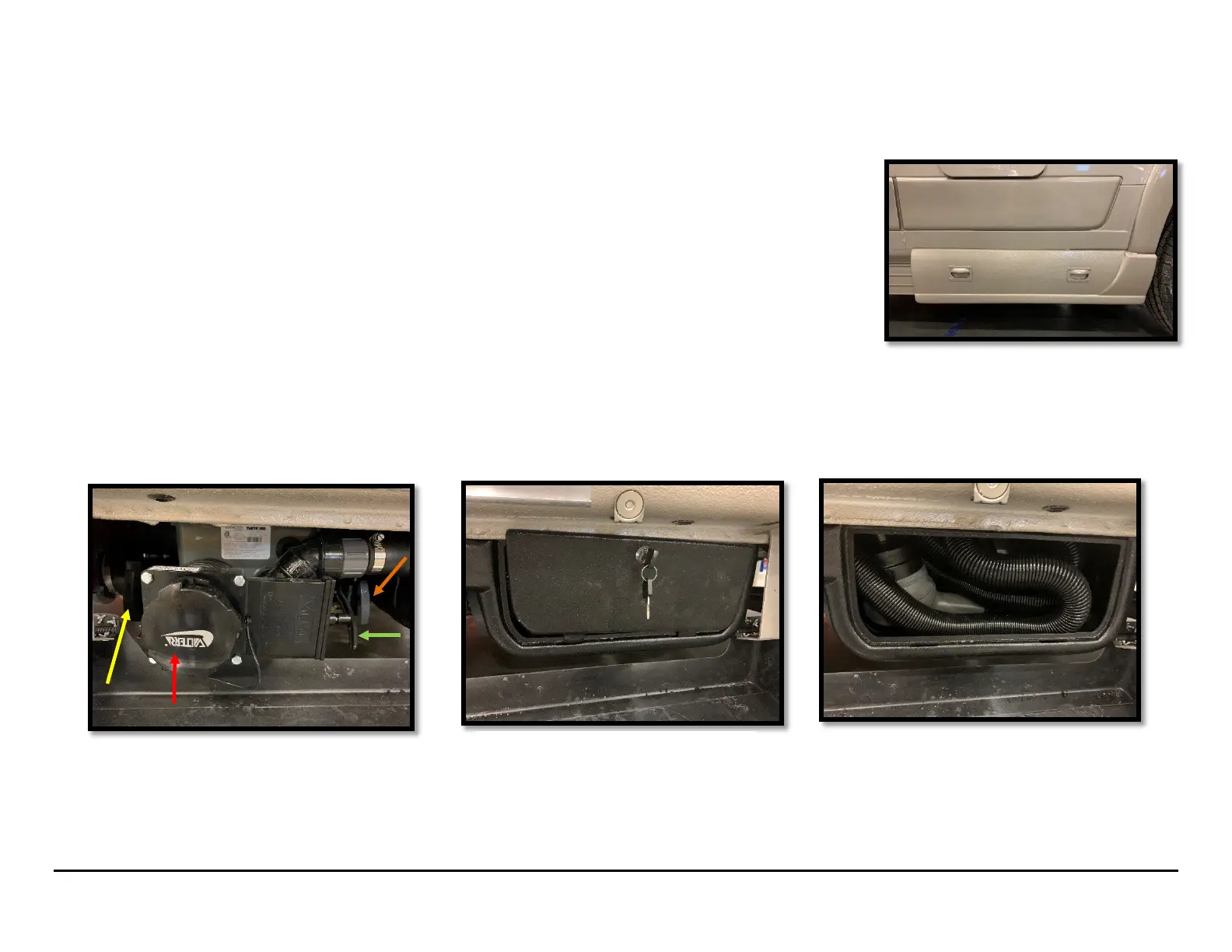

Picture 35.3
Wastewater holding tank gate valve
and macerator system location
Picture 35.6
Flexible macerator hose
Picture 35.5
Locking storage compartment for
flexible macerator hose
