Roadtrek CHASE 2021 - Distribution Panel; AC Breaker; 12 Volt Fuse Panel

44
15
Amp,
12VDC Refrigerator
1 Amp. 12VDC Shower
lite/Auto
Start
1
Amp,12VDC
CO/LP Gas
Detector
10 Amp.
12VDC Fresh
10
Amp, 12VDC AC,
Furnace, WH
5 Amp, 12VDC Power Roof
Not Used
Not Used
Not Used
15
Amp, 12VDC
Power
10 Amp, 12 VDC Cntr
roof,Dr lites & recpts
10 Amp, 12VDC Patio, Cab, Ps lites & recpts
1 2 3 4 5
6
7
8
9
10 11 12
Distribution Panel
The distribution panel is in the headliner above the driver's seat. The 120-volt AC breakers, GFCI and the 12-volt DC fuses are behind a
black plastic cover on the right side.
AC Breaker
Flip the cover to the right and note the sticker under the cover with the identifying information on each breaker. (Picture 44.1) When storing the
Roadtrek for the winter, turn off the battery disconnect switch, the inverter, and all circuit breakers in this panel.
12 Volt Fuse Panel
The 12-volt fuses are on the right side of the distribution panel with the labels for each fuse on the inside of the cover.

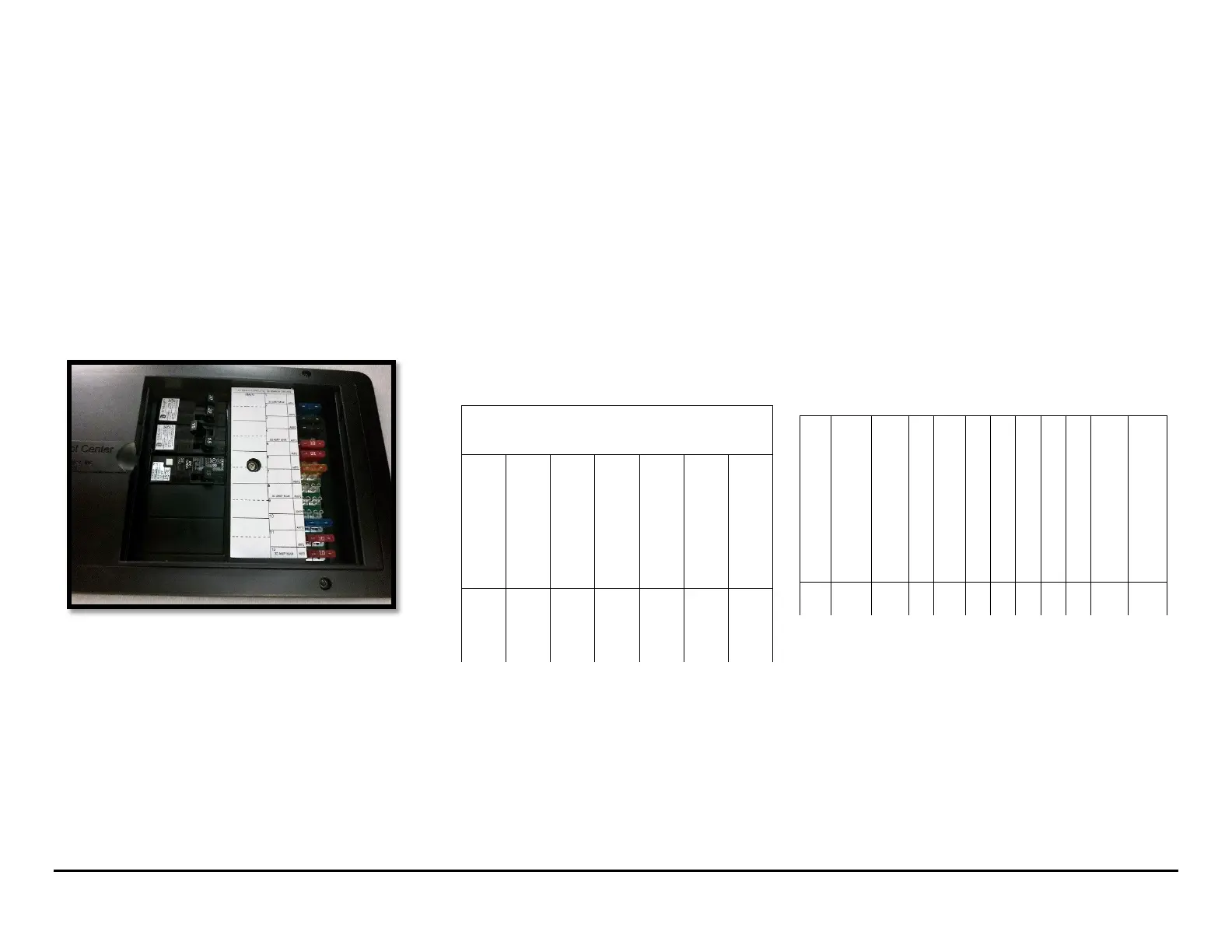

Picture 44.1
Breaker and fuse access
DANGER: Hazard of electrical shock or burn
TURN OFF power supply before servicing
equipment
58190542
Not Used 15 Amp, 110
VAC GFCI All
15 Amp, 110
VAC AV
15 Amp. 110
VAC
20 Amp, 110
VAC Roof AC
30 Amp, 110
VAC MAIN
F E D c B A
