Monitor Panel
Location
The Firefly monitor panel is located inside the side door, above the doorframe, to the left of the galley. (Picture 40.1). The battery disconnect switch
must be in the on position for the Firefly control panel to function.
Power Sources
The monitor panel controls 2 separate power sources: the 12-volt DC and he 120-volt AC power via the inverter, shore power, or optional generator.
12 Volt DC Power
The power to the 12-volt DC outlets and appliances is controlled by the battery disconnect switch located adjacent to the Firefly monitor. This switch
must be on for any of the 12-volt electrical devices to work. Remember to turn off two switches -the inverter switch and the battery disconnect switch
when your Roadtrek is not being used to avoid discharging the batteries.

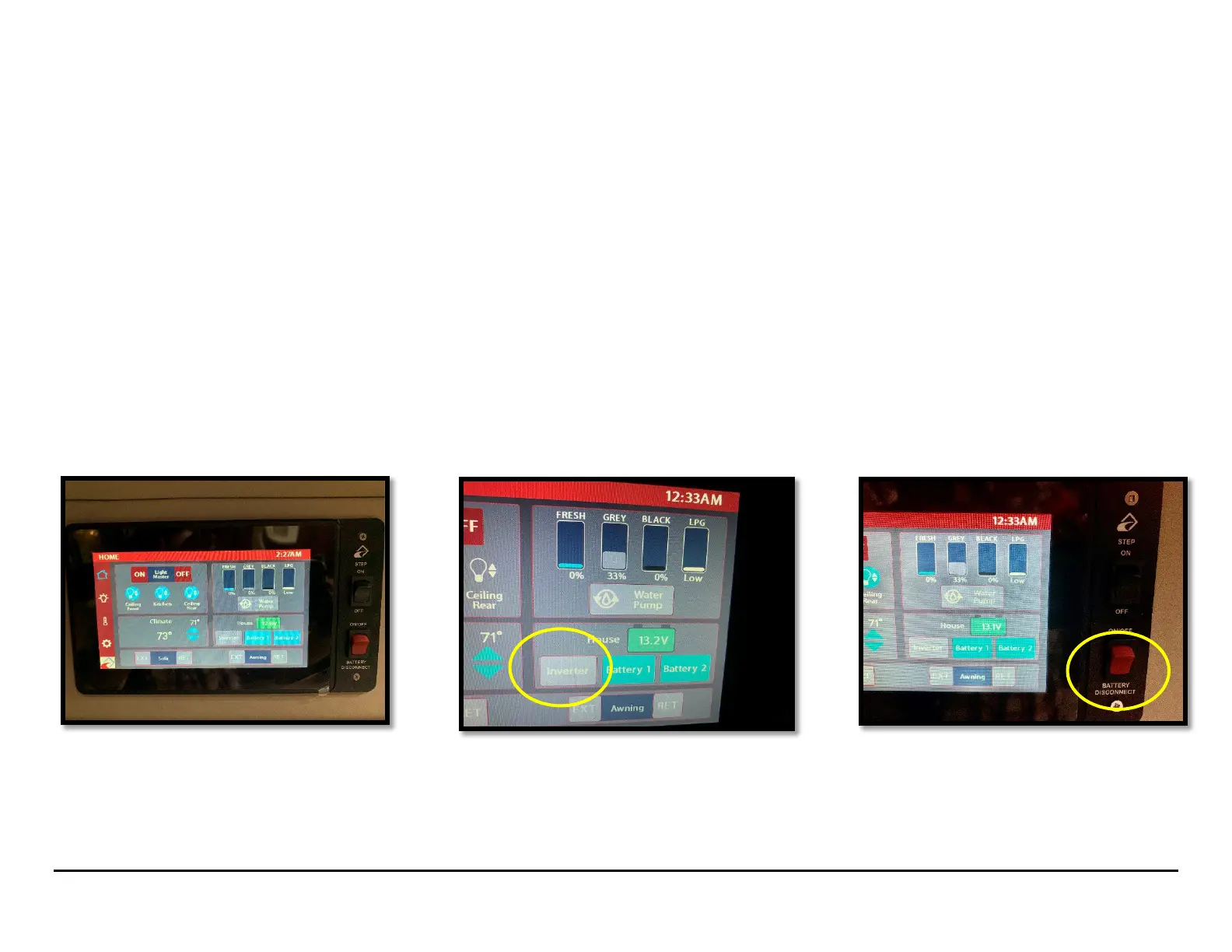

Picture 40.1 Picture 40.2 Picture 40.3
Monitor Panel
Inverter switch
Battery disconnect switch
