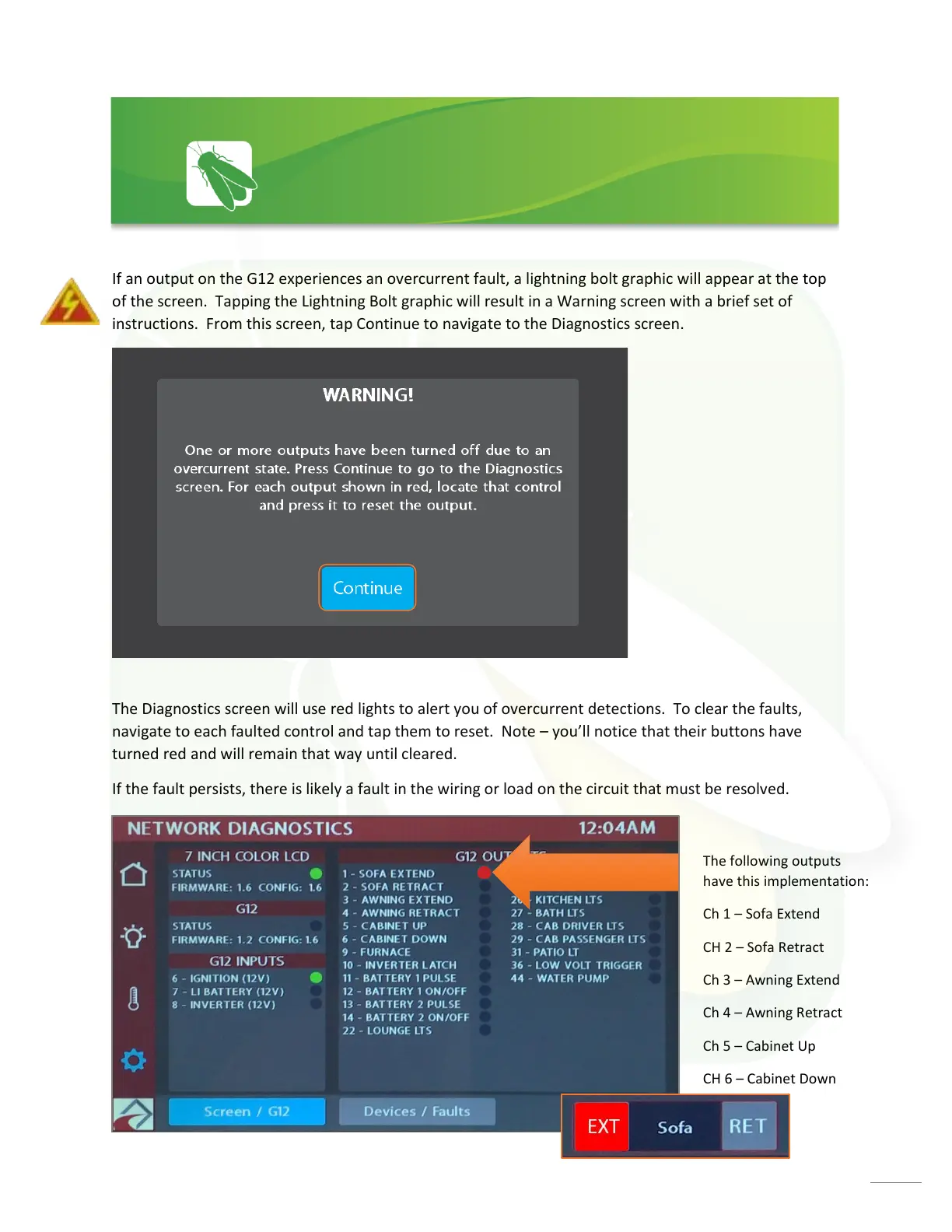

If an output on the G12 experiences an overcurrent fault, a lightning bolt graphic will appear at the top
of the screen. Tapping the Lightning Bolt graphic will result in a Warning screen with a brief set of
instructions. From this screen, tap Continue to navigate to the Diagnostics screen.
The Diagnostics screen will use red lights to alert you of overcurrent detections. To clear the faults,
navigate to each faulted control and tap them to reset. Note – you’ll notice that their buttons have
turned red and will remain that way until cleared.
If the fault persists, there is likely a fault in the wiring or load on the circuit that must be resolved.
