11
3.1 Installation of the BMFL xture on the tripod

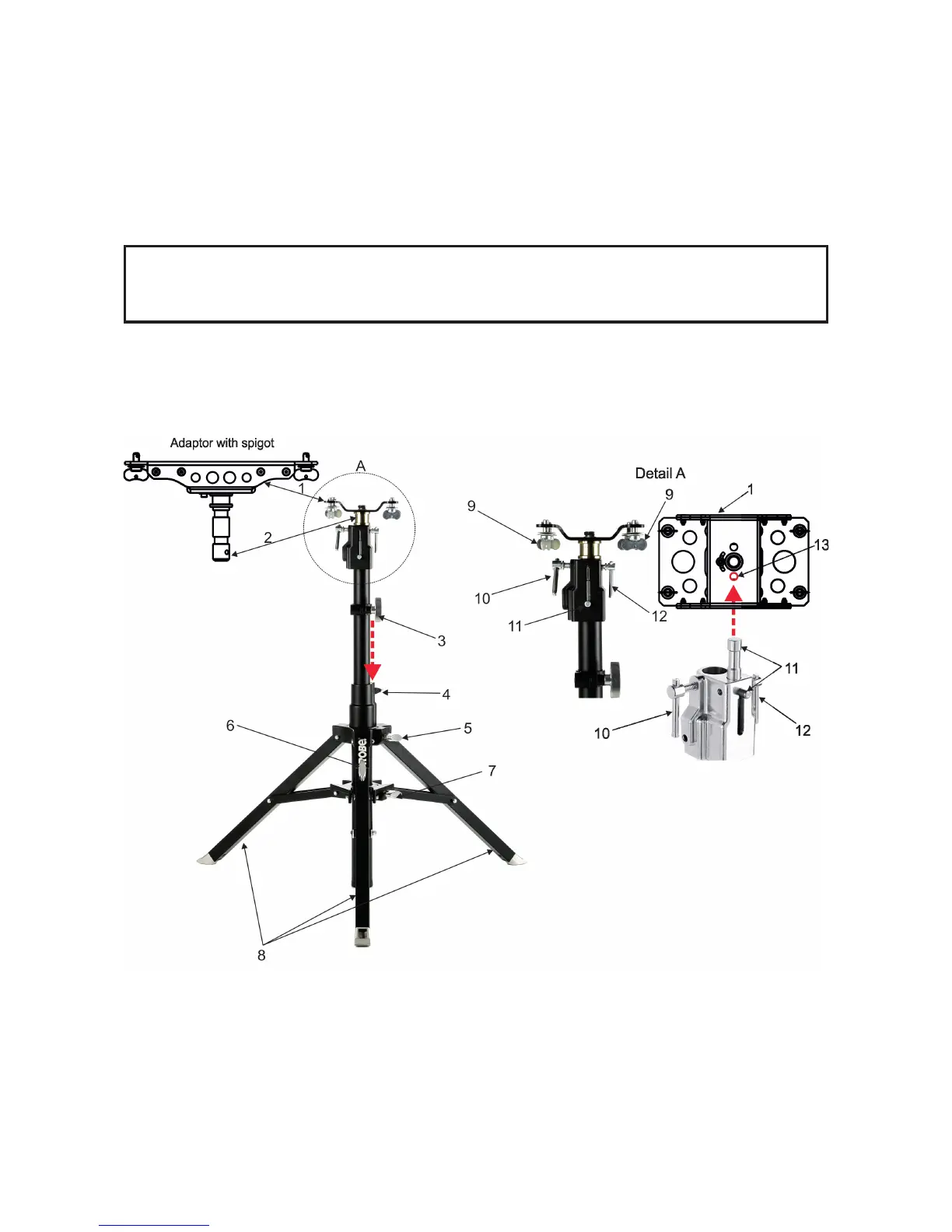

1. Unfold and adjust height of the tripod and distance of legs (8) by means of adjusting locks (4,5,6,7).
The lock (3) has to be in a lower position (as shows arrow on picture below).
2. After inserting the adaptor (1) with spigot (2) to the tripod, the spigot (2) has to be secured by means of
the lock (10) and the adaptor (1) by means of the pin (11) which is inserted to the hole (13) of the adaptor (1)
as shows arrow on picture below. Position of the pin(11) has to be secured by means of the lock (12).
3. The four quarter -turn locks (9) of the adaptor serve for fastening the BMFL xture with installed LightMaster
on the tripod with adaptor. Two workers should install the BMFL xture on the assebled tripod with the adaptor.
Check all quarter -turn locks (9) are fully tightened before operating the BMFL xture.
Check that all locks (3, 4, 5,6,7, 10,12) are fully tightened before placing the BMFL
xture with installed LightMaster on the tripod with adaptor.
