7

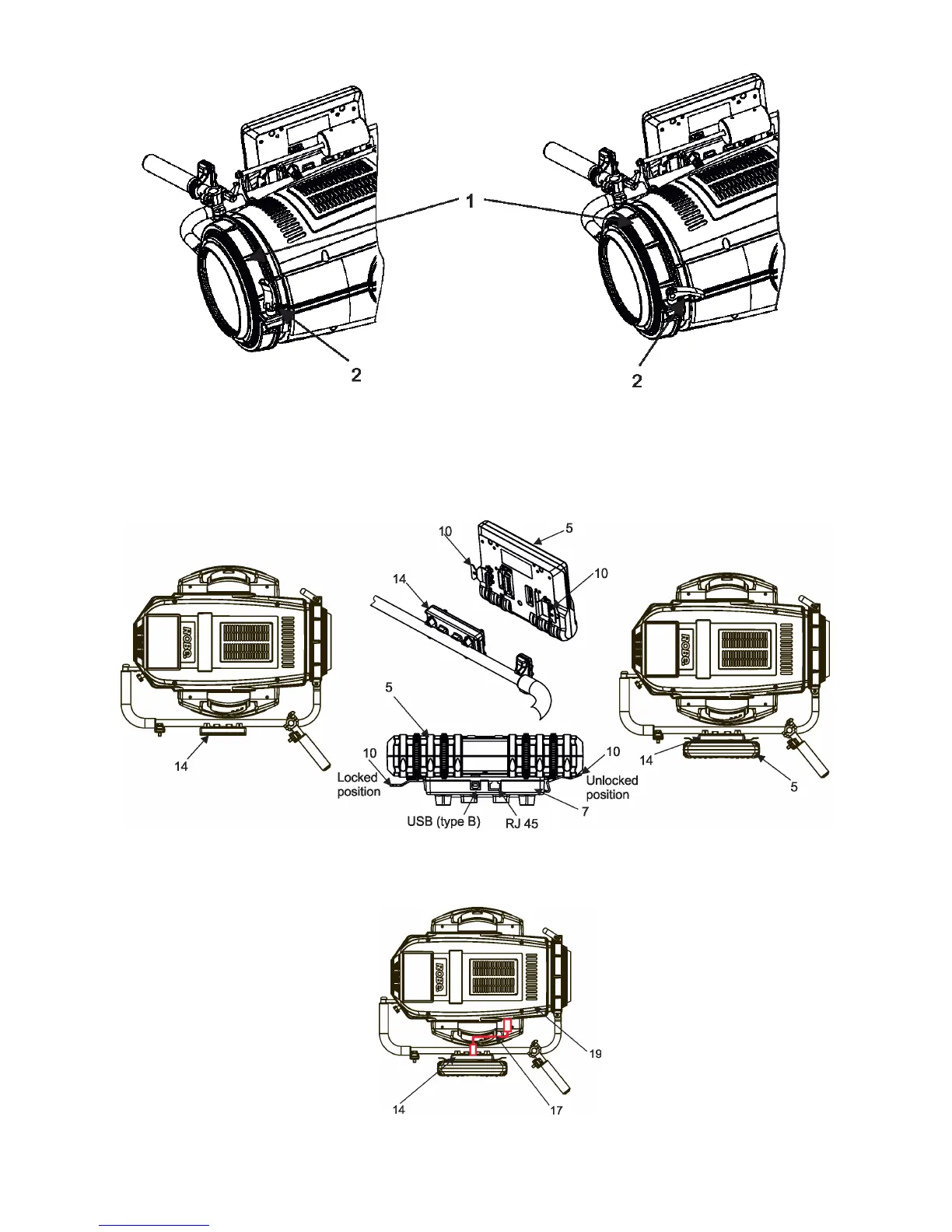

Collar lock (2) in the unlocked position. Collar lock (2) in the locked position.
By turning the lock (2) clockwise you will tighten
the collar (1). Do not use brute force!
6. Attach the FollowSpot Controller (5) to the FollowSpot Controller base (14). During attaching, both spring
locks (10) have to be in an unlocked position (pressed towards the Follow Spot Controller).
7. Connect the FollowSpot Controller base (14) with the xture head (19) by means of the USB cable (17).
