8

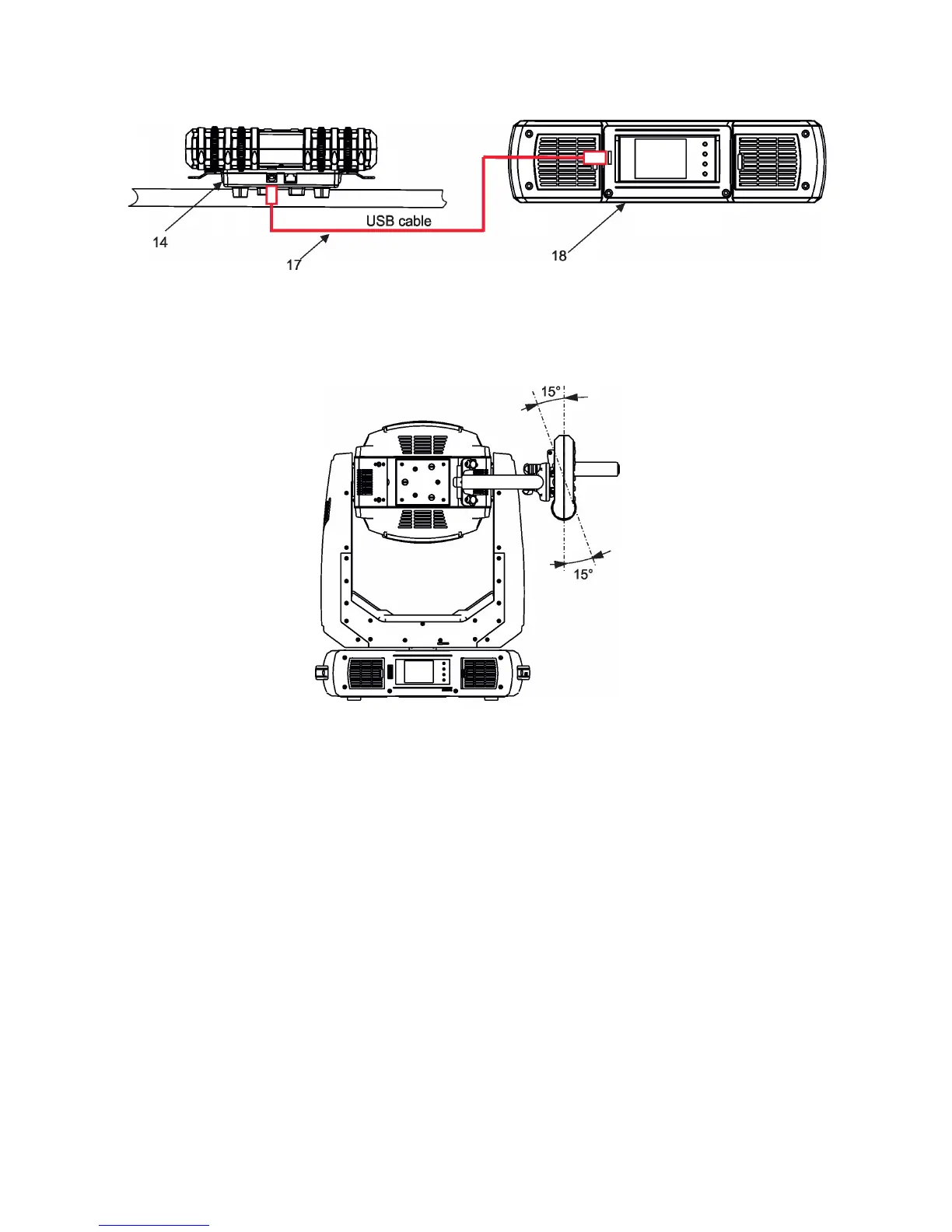

This USB connection with xture head is possible for the Robin BMFL FollowSpot only.
If you use the Robin BMFL Spot, Robin BMFL Blade or Robin BMFL WashBeam, connect the FollowSpot
Controller base (14) with the xture base (18) by means of the USB cable (17).
8. Use the balance weight (13) to balance the head in a horizontal position.
Note: The FollowSpot Controller with its base can be tilted +/-15°( from a vertical axis) on the handle bar.
