Robe ROBIN BMFL LightMaster Side - Rear Installation Setup

9
Robin BMFL LightMaster Rear
The installation should do two workers as the supporting frame is heavy.

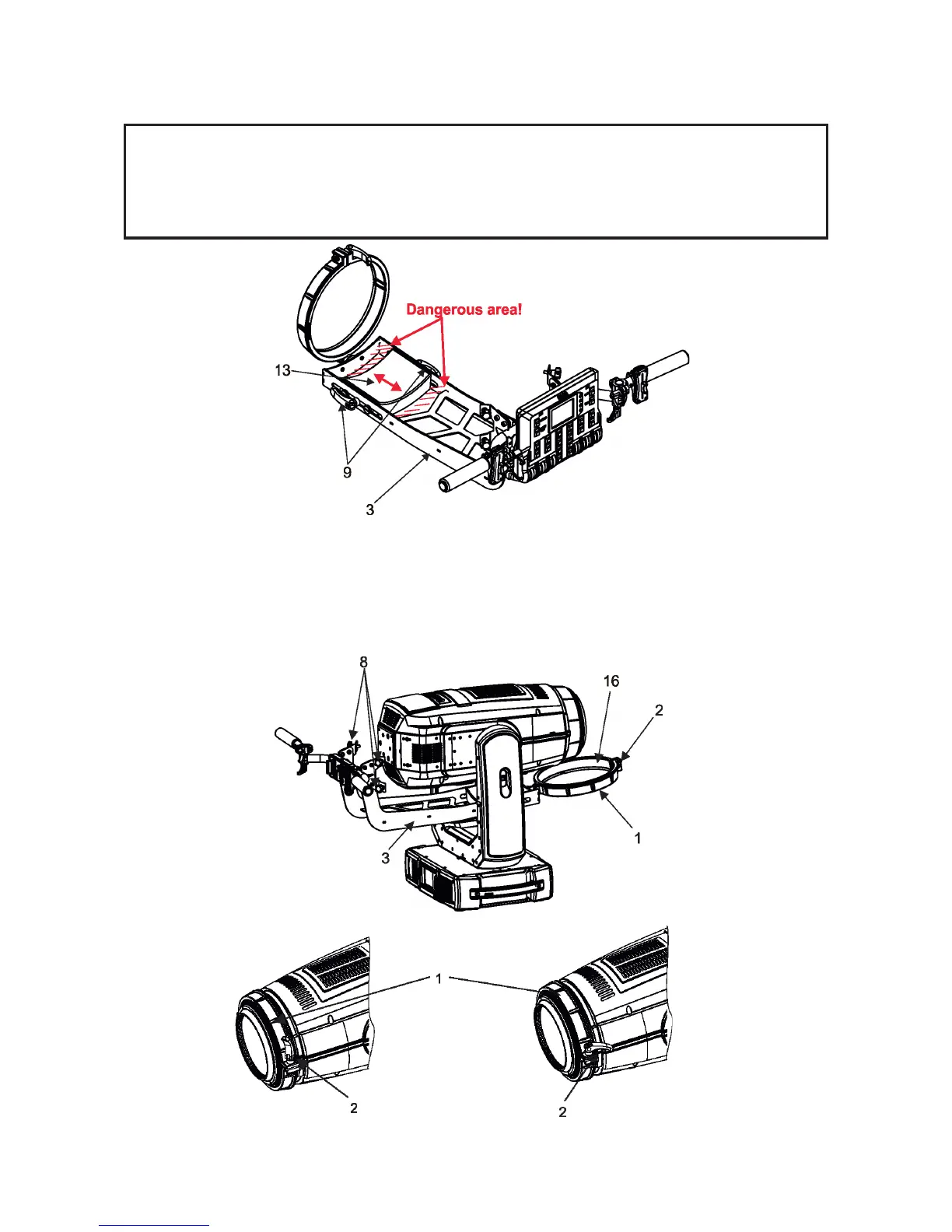

Danger!
Never put ngers between the balance weight (13) and the supporting frame (3)
when you adjust the position of the balance weight. There is a danger of injury of
your ngers by the heavy balance weight.
Always secure adjusted position of the balance weight by means of two locks (9).
1. Switch the BMFL xture to the Soft option of the Follow Spot Mode (Personality-->Follow Spot Mode -->Soft).
2. Disconnect the xture from mains and place it on a at surface (e.g. table). Move the head to a horizontal
position and lock the tilt movement.
3. Place the collar (1) of the supporting frame (3) on the front part of the xture head.
If you install the Robin BMFL LightMaster on the Robin BMFL WashBeam, remove the rubber ring (16) from
the collar (1).
4. Fasten the second side of the supporting frame (3) to the head by means of four screws (8).
5. Secure the collar (1) on the head by means of the collar lock (2).
Collar lock (2) in the unlocked position. Collar lock (2) in the locked position.
By turning the lock (2) clockwise you will tighten
the collar (1). Do not use brute force!
