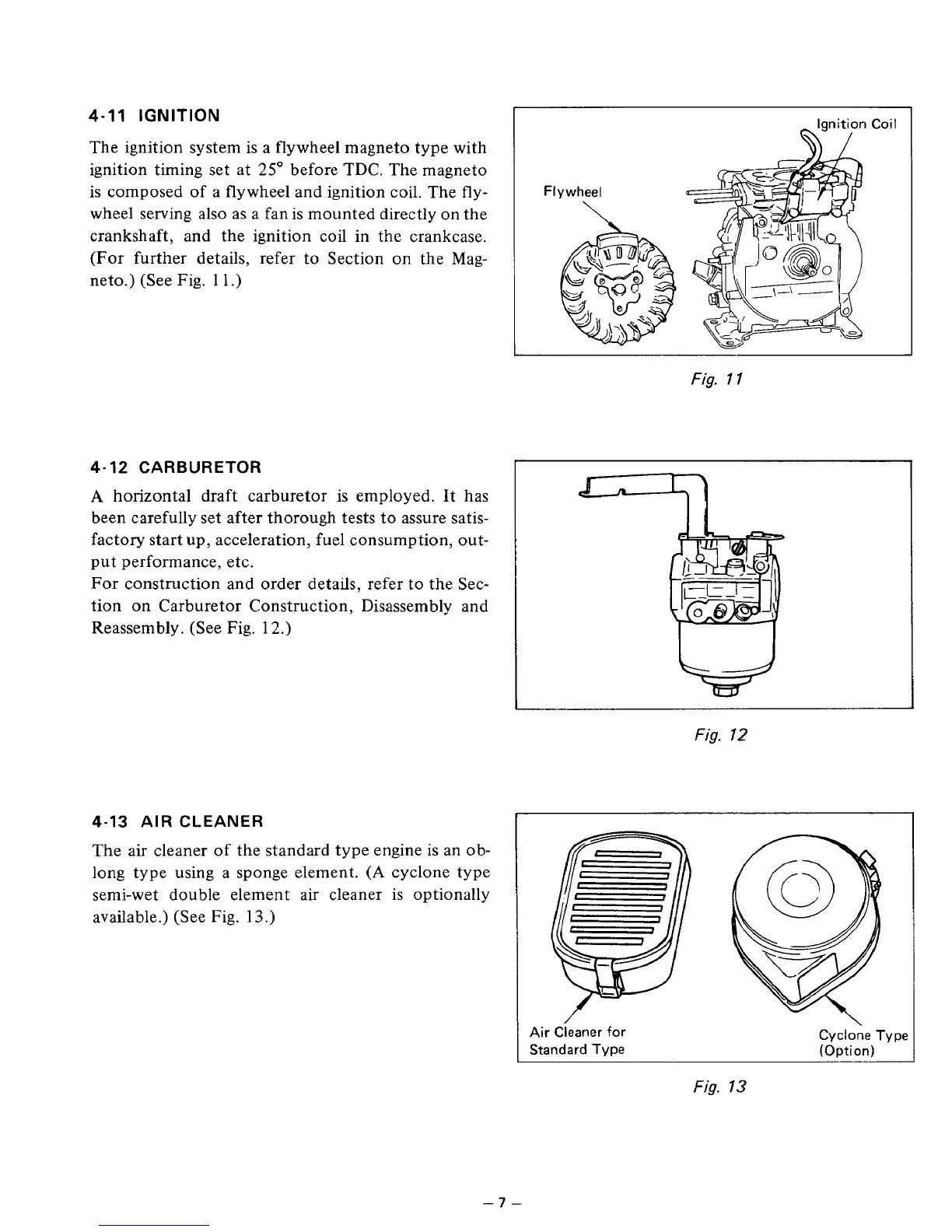

4-11
IGNITION
The ignition system
is
a flywheel magneto type with
ignition timing set at
25"
before TDC. The magneto
is composed
of
a
flywheel and ignition coil. The fly-
wheel serving also as a fan is mounted directly on the
crankshaft, and the ignition coil in the crankcase.
(For further details, refer to Section
on
the Mag-
neto.) (See
Fig.
1 1
.)
4-12 CARBURETOR
A
horizontal draft carburetor is employed. It has
been carefully set after thorough tests to assure satis-
factory start up, acceleration, fuel consumption, out-
put performance, etc.
For construction and order details, refer to the Sec-
tion on Carburetor Construction, Disassembly and
@
Reassembly. (See Fig. 12.)
4-13 AIR CLEANER
The air cleaner
of
the standard
ty
:ngine
is
an
0
b-
long type using
a
sponge element.
(A
cyclone type
semi-wet double element air cleaner is optionally
available.) (See
Fig.
13.)
I
Ignition Coil
Fig.
1
1
Fig.
12
Air Cieaner for
Standard Type
Cyclone Type
(Option)
Fig.
13
-7-
