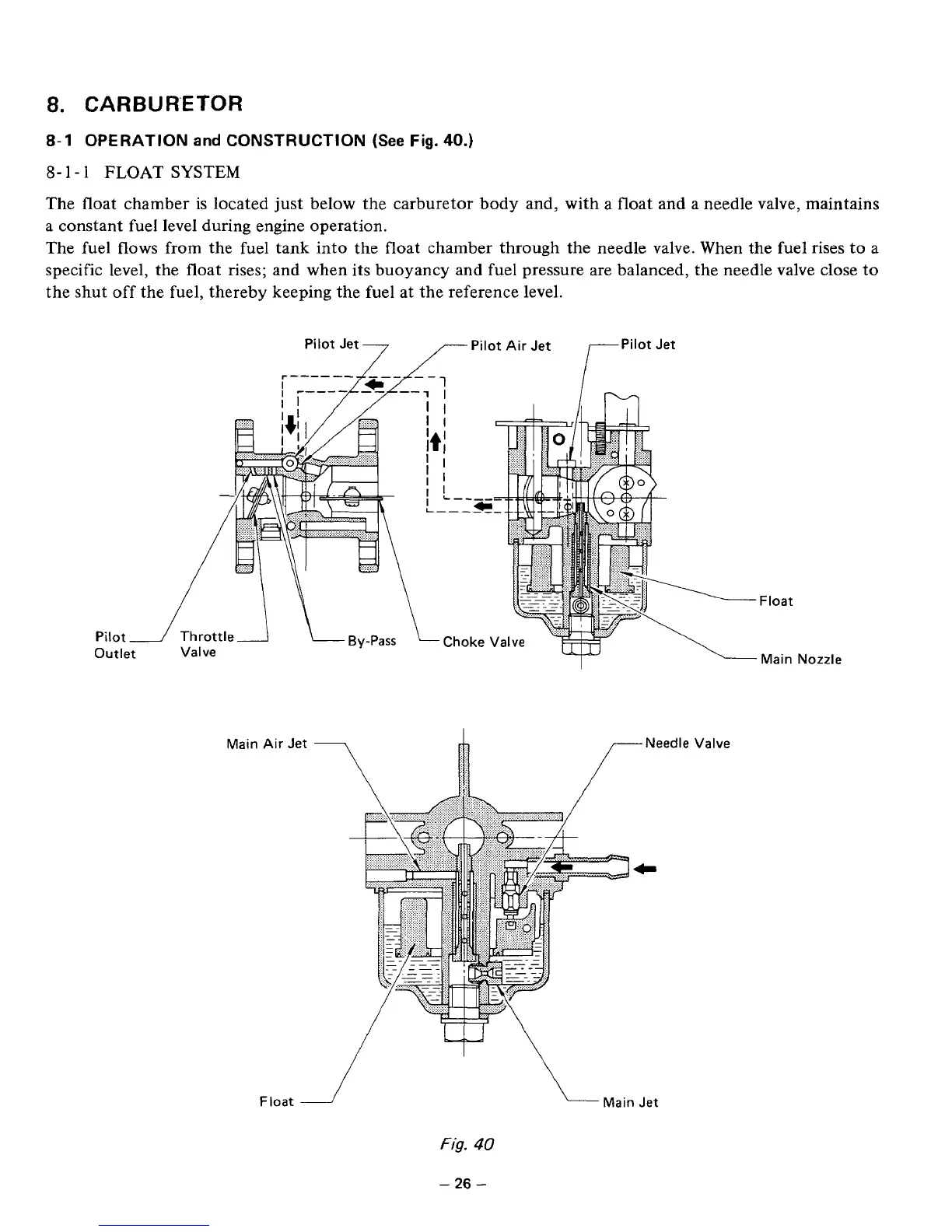

8. CARBURETOR
/-
8-1 OPERATION and CONSTRUCTION (See Fig. 40.)
8- 1 - 1 FLOAT SYSTEM
The float chamber is located just below the carburetor body and, with a float and a needle valve, maintains
a constant fuel level during engine operation.
The fuel flows from the fuel tank into the float chamber through the needle valve. When the fuel rises to a
specific level, the float rises; and when
its buoyancy and fuel pressure are balanced, the needle valve close to
the shut off the fuel, thereby keeping the fuel at the reference level.
Pilot Jet, ,,"--Pilot Air Jet
r Pilot Jet
Main Air Jet
/-
Needle Valve
Float
-
fig. 40
- 26 -
