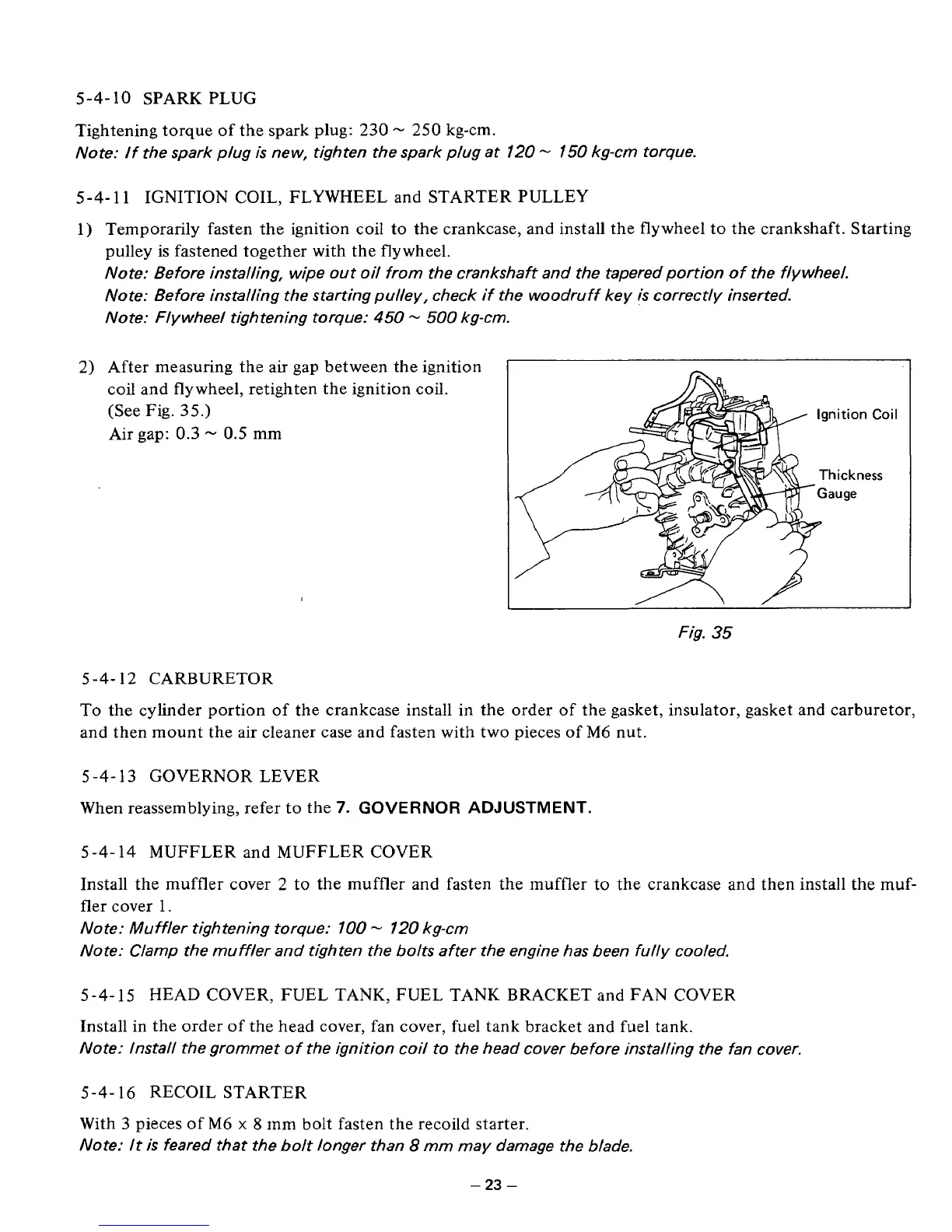

5-4-10 SPARK PLUG
Tightening torque of the spark plug: 230
- 250 kg-cm.
Note: If the spark plug is new, tighten the spark plug at 120 - 150 kg-cm torque.
5-4- 11 IGNITION COIL, FLYWHEEL and STARTER PULLEY
1) Temporarily fasten the ignition coil to the crankcase, and install the flywheel to the crankshaft. Starting
pulley is fastened together with the flywheel.
Note: Before installing, wipe out oil from the crankshaft and the tapered portion of the flywheel.
Note: Before installing the starting pulley, check
if the woodruff key is correctly inserted.
Note: Flywheel tightening torque:
450 - 500 kg-cm.
2) After measuring the air gap between the ignition
coil and flywheel, retighten the ignition coil.
(See Fig.
35.)
Air gap: 0.3 - 0.5 mm
I
Fig. 35
5 -4- 12 CARBURETOR
To the cylinder portion of the crankcase install in the order of the gasket, insulator, gasket and carburetor,
and then mount the air cleaner case and fasten with two pieces
of M6 nut.
5 -4- 13 GOVERNOR LEVER
When reassemblying, refer to the
7. GOVERNOR ADJUSTMENT.
5-4-14 MUFFLER and MUFFLER COVER
Install the muffler cover
2 to the muffler and fasten the muffler to the crankcase and then install the muf-
fler cover 1.
Note: Muffler tightening torque: 100 - 720 kg-cm
Note: Clamp the muffler and tighten the bolts after the engine has been fully cooled.
5-4-15 HEAD COVER, FUEL TANK, FUEL TANK BRACKET and FAN COVER
Install in the order
of the head cover, fan cover, fuel tank bracket and fuel tank.
Note: Install the grommet of the ignition coil to the head cover before installing the fan cover.
-
5-4- 16 RECOIL STARTER
- With 3 pieces of M6 x 8 mm bolt fasten the recoild starter.
Note: It is feared that the bolt longer than 8 mm may damage the blade.
- 23 -
