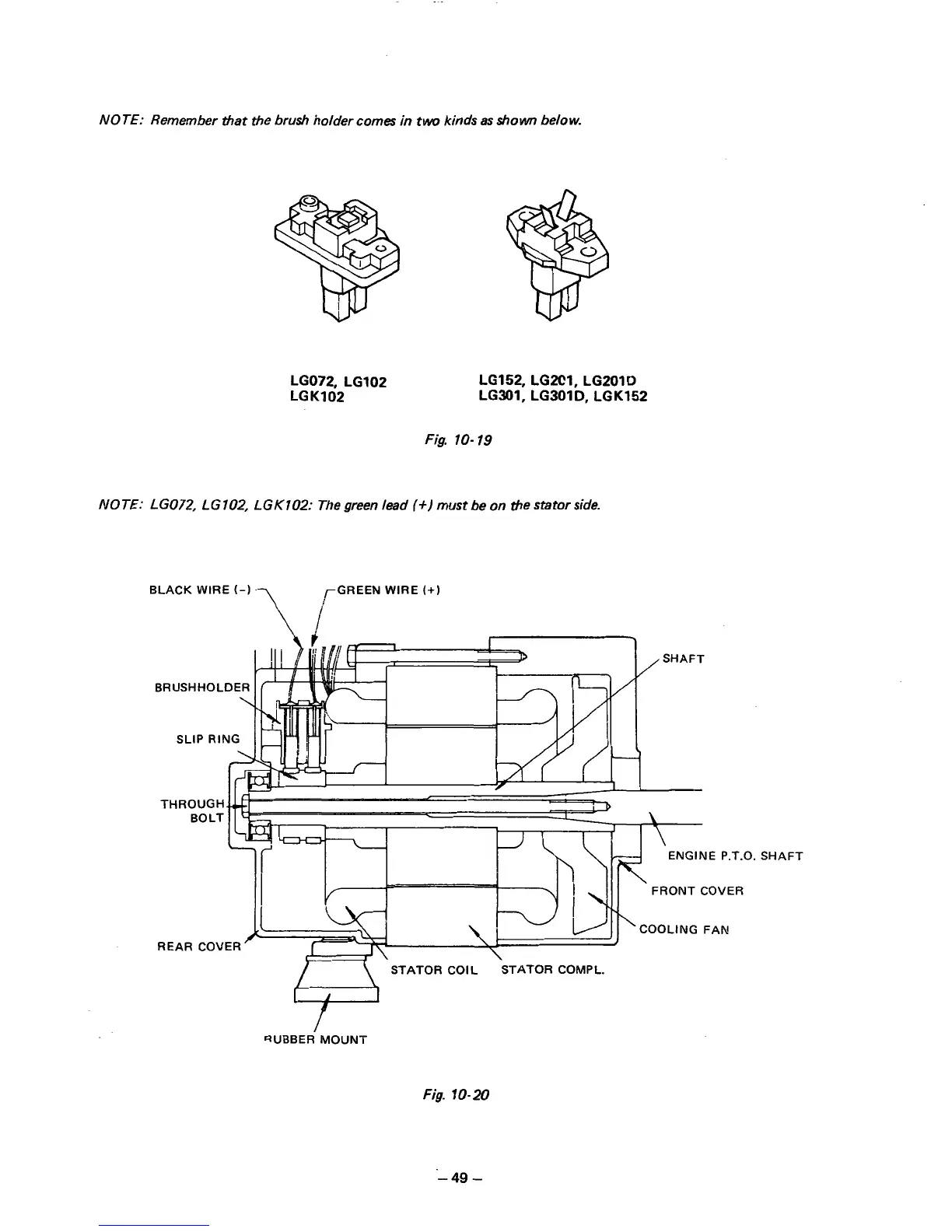

NOTE: Remember that the brush holder
comes
in two kinds
as
shown below.
LG072, LG102
LG K102
LG152, LG2C1, LG2OlD
LG301, LG301D, LGK152
Fig.
10-
19
NOTE:
LG072,
LG702,
LGK102:
The green lead
(+)
must be on the stator side.
BLACK WIRE
(-1
7
,-GREEN WIRE
(+I
BRUSHHOLD
ENGINE P.T.O.
FRONT COVER
COOLING FAN
REAR
COVER
1
\
STATOR COIL STATOR COMPL.
RUBBER
I
MOUNT
SHAFT
Fig.
10-20
-49
-
