Step Part to remove Description

Precautions Necessary tools

3 i Choke cable , (1) Set the control switch to STOP

and disconnect the choke cable

from the lever.

i (2) Disconnect the outer cable of the

(See Fig. 10-3.) 10 mm box spanner

choke cable from the fuel tank

bracket.

, (3) Loosen the M4 screw of the

carburetor choke lever swivel to

pull out the inner wire from the

choke cable.

t Plus screw-driver

Fuel line

(1) Hold the fuel line clamp inserted Be careful not to

Pliers

inside the strainer using pliers, damage the hose.

and pull it backward to remove

the fuel line from inside the

1 (See Fig. 10-4.)

strainer.

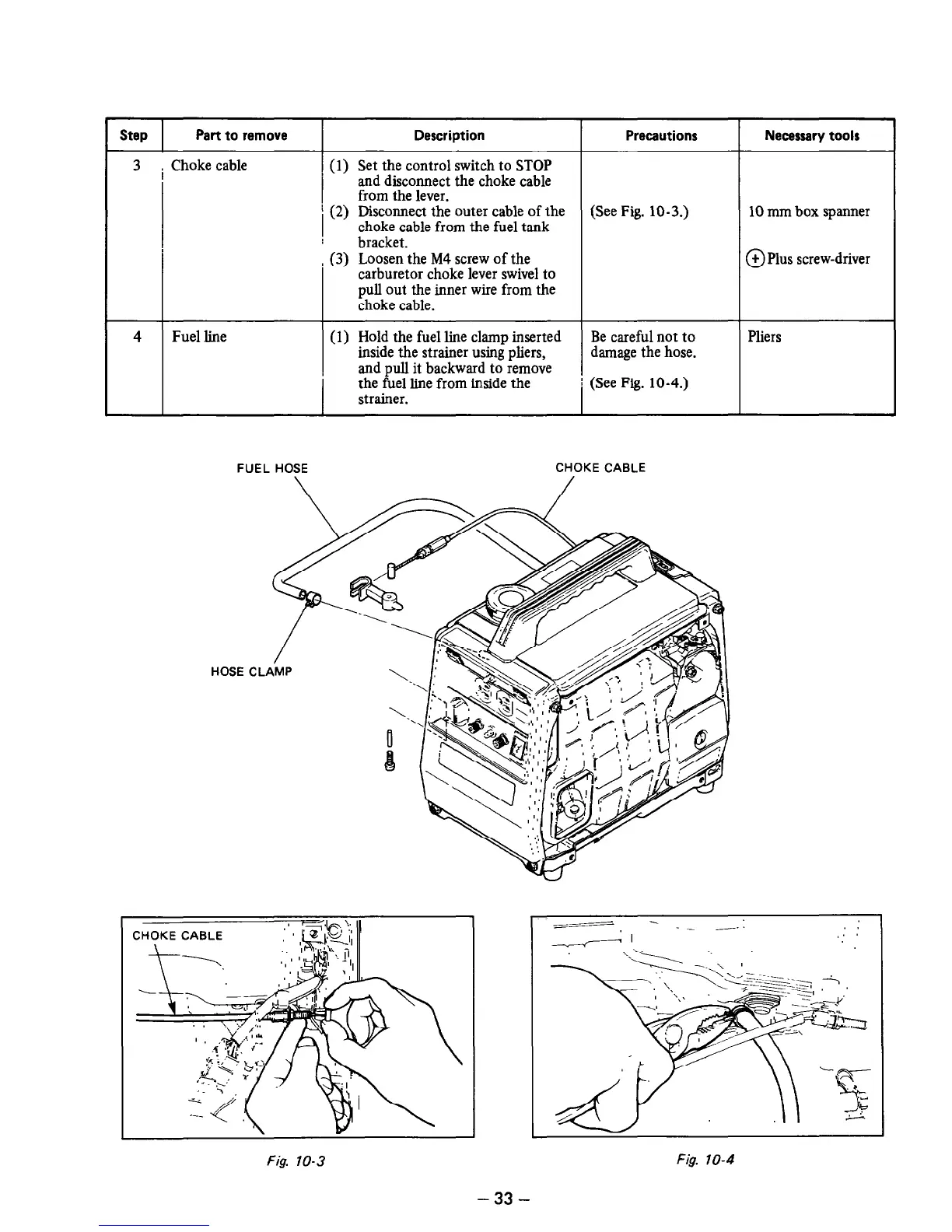

FUEL HOSE

CHOKE CABLE

HOSE CL -AMP

CHOKE CABLE

Fig. 10-3

Fig. 10-4
