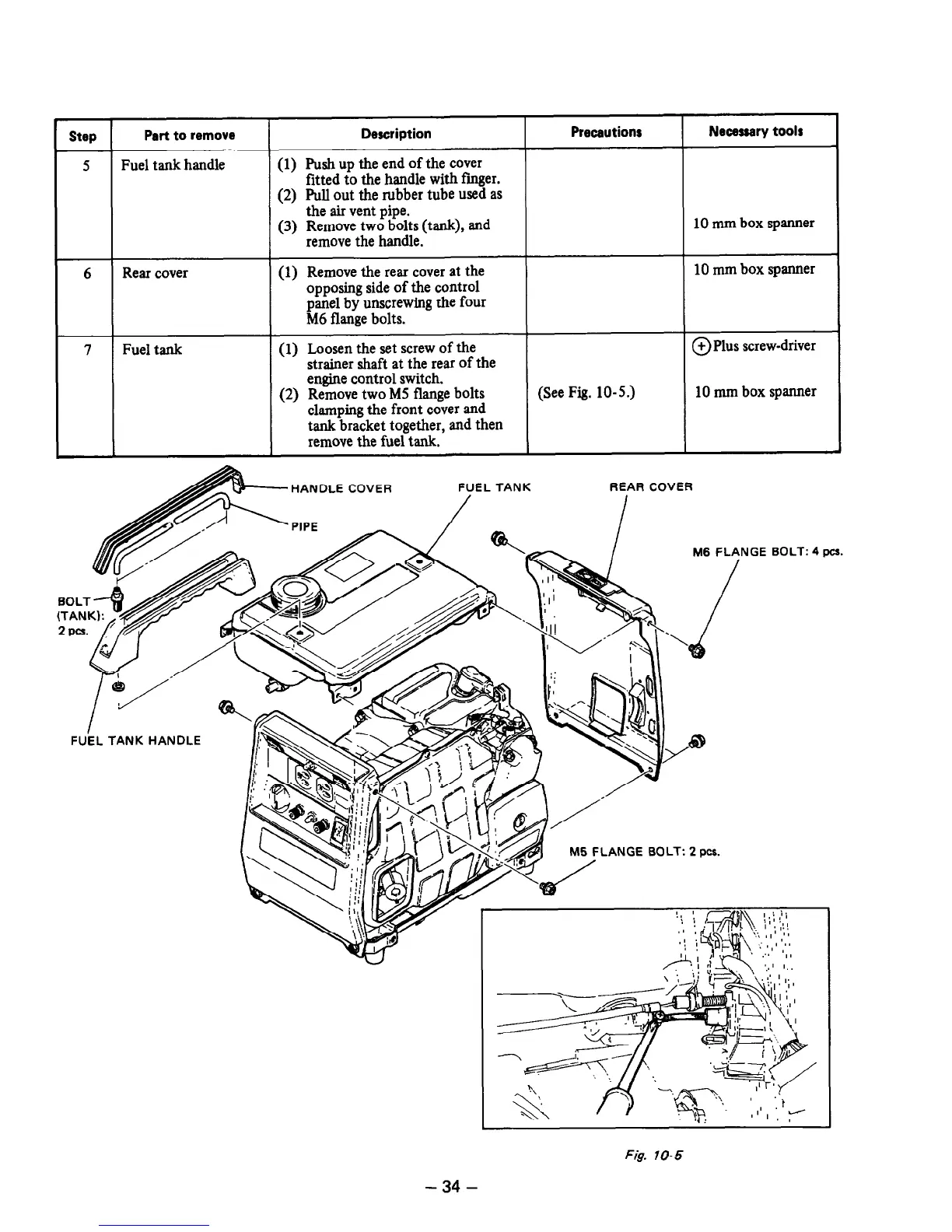

Step
Part to remove
Description
Precautions
Necessary tools
5
Fuel tank handle
(1) Push up the end of the cover
fitted to the handle with finger.
(2) Pull out the rubber tube used as
the air vent pipe.
(3) Remove two bolts (tank), and
remove the handle.
10 mm box spanner
6
Rear cover
(1) Remove the rear cover at the
10 mm box spanner
opposing side of the control
panel by unscrewing the four
M6 flange bolts.
7
Fuel tank
(1) Loosen the set screw of the
0
t Plus screw-driver
strainer shaft at the rear of the
engine control switch.
(2) Remove two MS flange bolts
clamping the front cover and
tank bracket together, and then
remove the fuel tank.
(See Fig. 10-S.)
10 mm box spanner
HANDLE COVER
FUEL TANK
‘\P,PE
-/
a.
REAR COVER
M5 FLANGE BOLT: 2 PCS.
I
.. ;
Fig. 10-5
- 34 -
