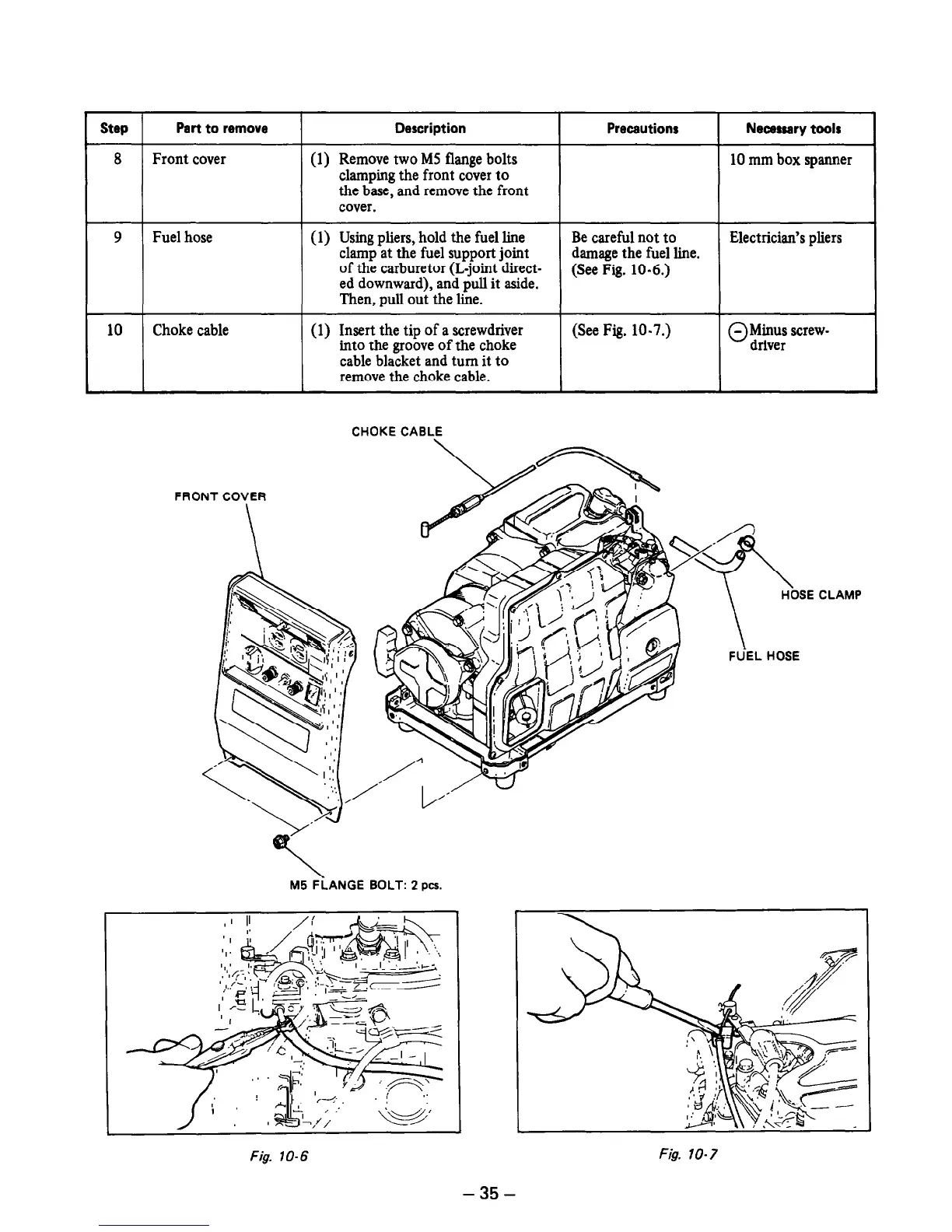

Step I

Part to remove Description

Front cover

(1) Remove two M5 flange bolts

clamping the front cover to

the base, and remove the front

cover.

Precautions

10 mm box spanner

9 Fuel hose

7==-

(1) Using pliers, hold the fuel line

clamp at the fuel support joint

of the carburetor (L-joint direct-

ed downward), and pull it aside.

Then, pull

out the line.

(1) Insert the tip of a screwdriver

into the groove of the choke

cable blacket and turn it to

remove the choke cable.

Be careful not to

damage the fuel line.

(See Fig. 10-7.)

Electrician’s pliers

Minus screw-

driver

ONT COVER

CHOKE CABLE

SE CLAMP

M5 FLANGE BOLT: 2

PCS.

Fig. 10-6

Fig. 10-7
