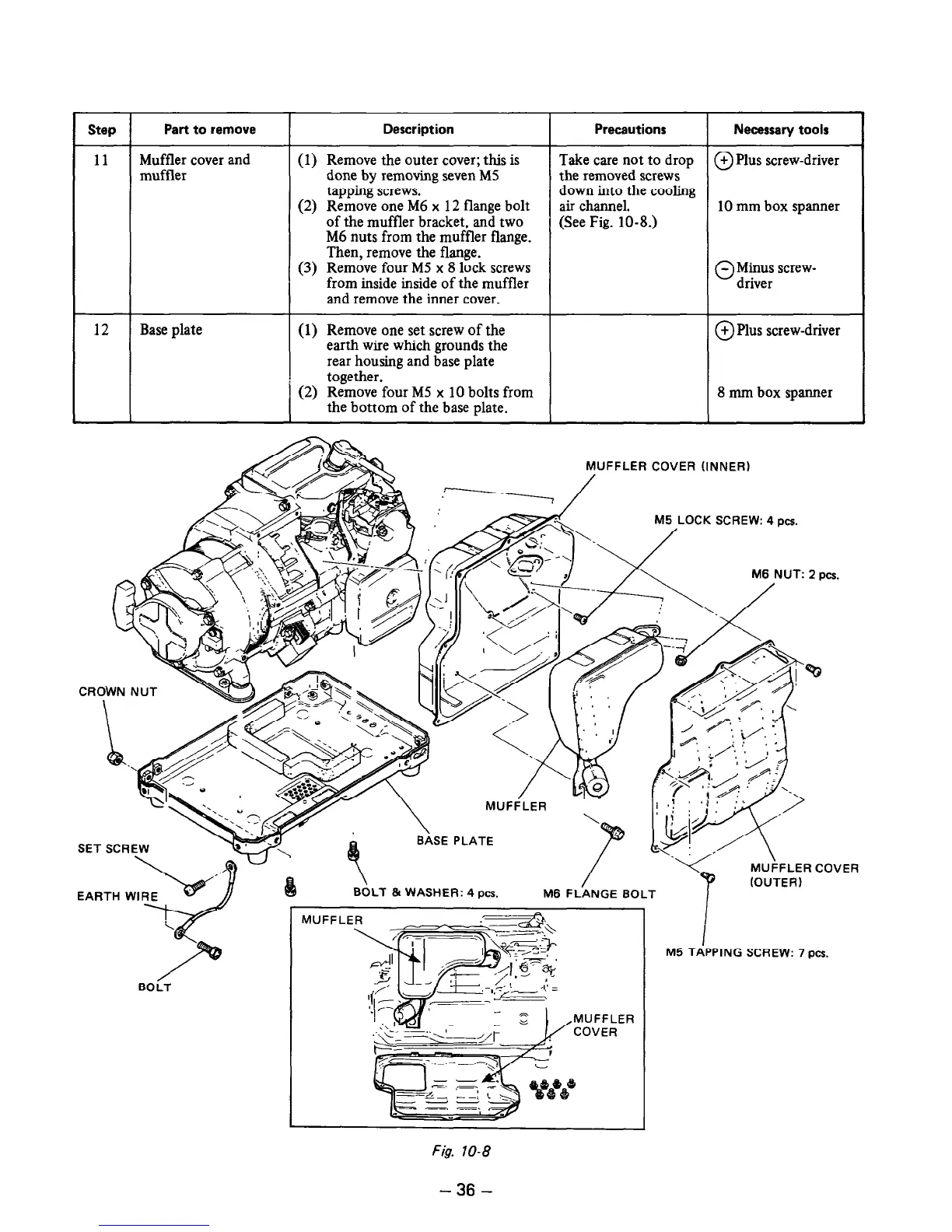

Step I
Part to remove
I
11
Muffler cover and
muffler
12
Base plate
Description
Precautions
Necessery tools
(1) Remove the outer cover; this is
done by removing seven M5
tapping screws.
(2) Remove one M6 x 12 flange bolt
of the muffler bracket, and two
M6 nuts from the muffler flange.
Then, remove the flange.
(3) Remove four MS x 8 lock screws
from inside inside of the muffler
and remove the inner cover.
(1) Remove one set screw of the
earth wire which grounds the
rear housing and base plate
together.
(2) Remove four M5 x 10 bolts from
the bottom of the base plate.
Take care not to drop
the removed screws
down into the cooling
air channel.
(See Fig. 10-8.)
0
t Plus screw-driver
10 mm box spanner
0
Minus screw-
driver
0
t Plus screw-driver
8 mm box spanner
UFFLER COVER (INNER)
LOCK SCREW: 4 PCS.
SET SCREW
/
MUFFLER COVER
EARTH WIRE kY
/
BOLT
a
BOLT & WASHER: 4 PCS.
M6 FLANGE BOLT
I
MUFFLER
\
M5 TAPPING SCREW: 7 PCS.
Fig. 70-8
-
36
-
