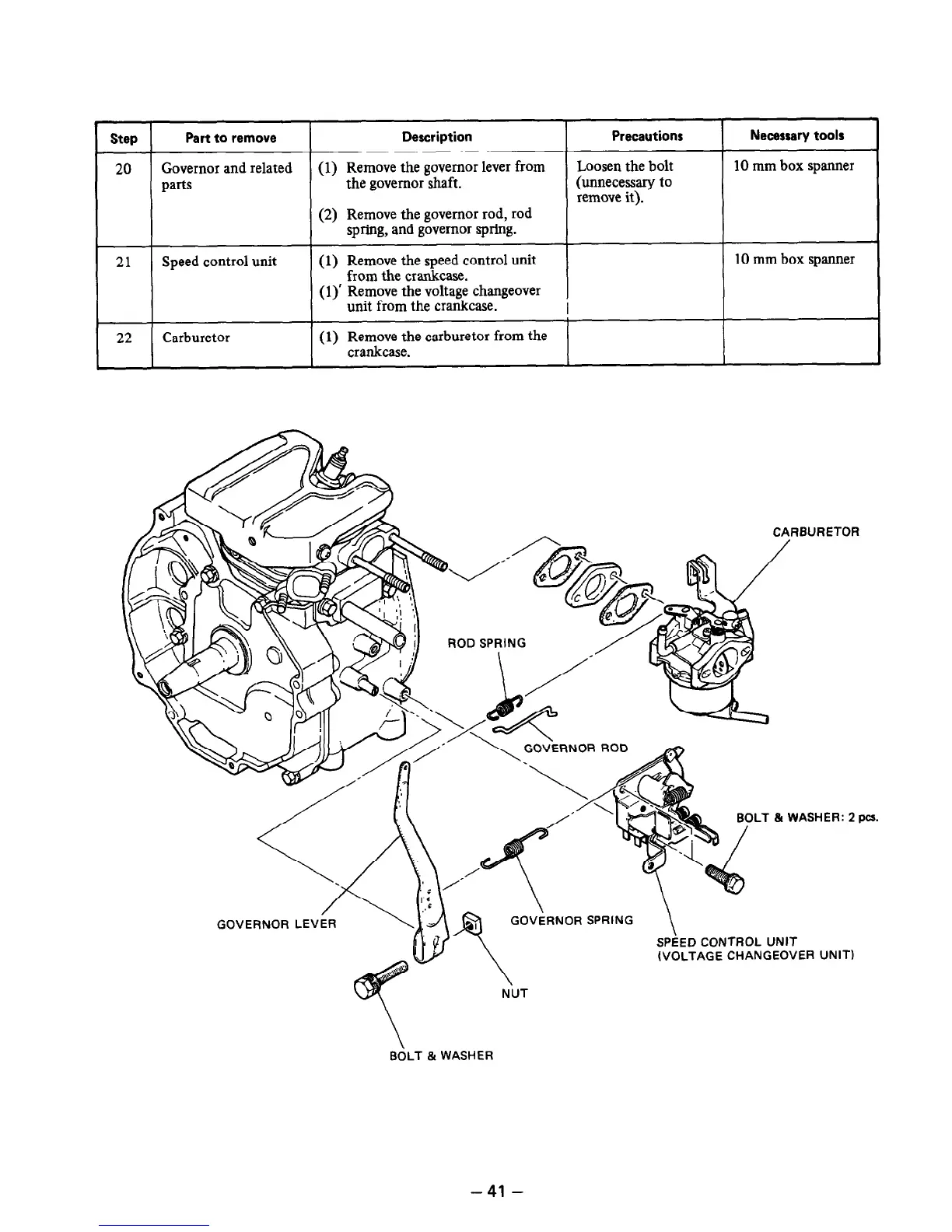

Step
Part to remove
Description
Precautions
Necessary tools
20
Governor and related
(1) Remove the governor lever from
Loosen the bolt 10 mm box spanner
parts
the governor shaft.
(unnecessary to
remove it).
(2) Remove the governor rod, rod
spring, and governor spring.
21 Speed control unit
(1) Remove the speed control unit
from the crankcase.
10 mm box spanner
(1)’ Remove the voltage changeover
unit from the crankcase.
22
Carburetor
(1) Remove the carburetor from the
crankcase.
CARBURETOR
ROD SPRING
BdLT & WASHER
-41-
