Step
Part to remove
Description
Precautions

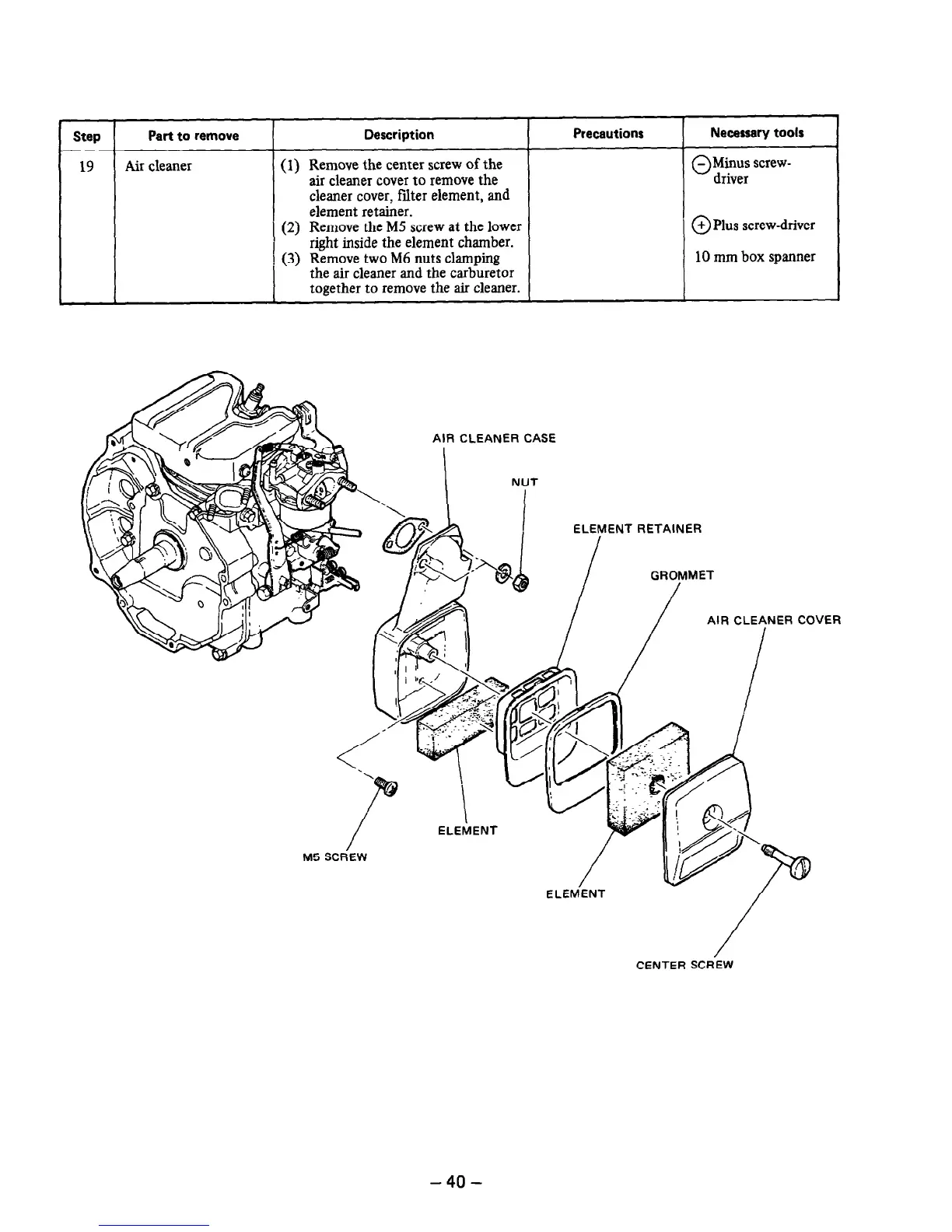

19
Air cleaner (1) Remove the center screw of the
air cleaner cover to remove the
cleaner cover, filter element, and
element retainer.
1 (2)
R
emove the M5 screw at the lower
I
right inside the element chamber.
! (3) Remove two M6 nuts clamping
the air cleaner and the carburetor
together to remove the air cleaner.
Necessery tools
0
Minus screw-
driver
0
t Plus screw-driver
10 mm box spanner
AIR CLEANER CASE
ELEMENT RETAINER
AIR CLEANER COVER
I
I
CENTER SCR-EW
-
40
-
To Next Page
