Step Part to remove
Description
Precautions
Necewary tools
L
I l6
Rotor assembly
(1) Insert a rotor-puller into the
Rotor puller
rotor shaft and tighten it until
the rotor comes loose.
17 Spark plug cap
(1) Remove the plug cap from the
I
spark plug.
(2)
Remove the clamp of the high-
I
tension cord. -
18 Front housing and
center baffle
, (1) Remove the front housing and
center baffle from the engine
main bearing cover by removing
three M6 x 25 mm bolts and one
Ivl5 x 55 mm bolt.
(See Fig. lo- 12.) 10 mm box spanner
SPARK PLUG CAP
FLANGE
BOLT
FRONT HOUSING
HIGH-TENSION CORD

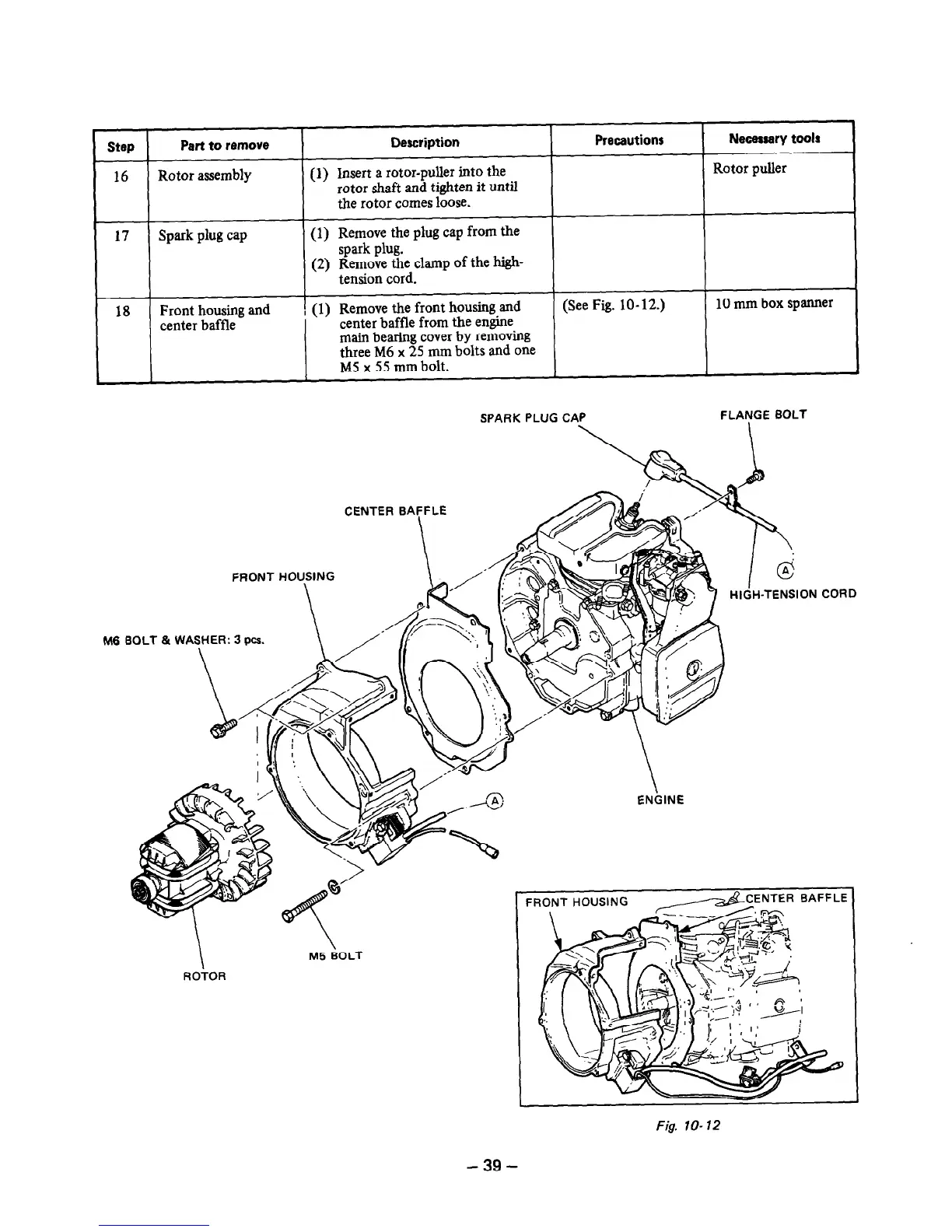

Fig. lo-72
